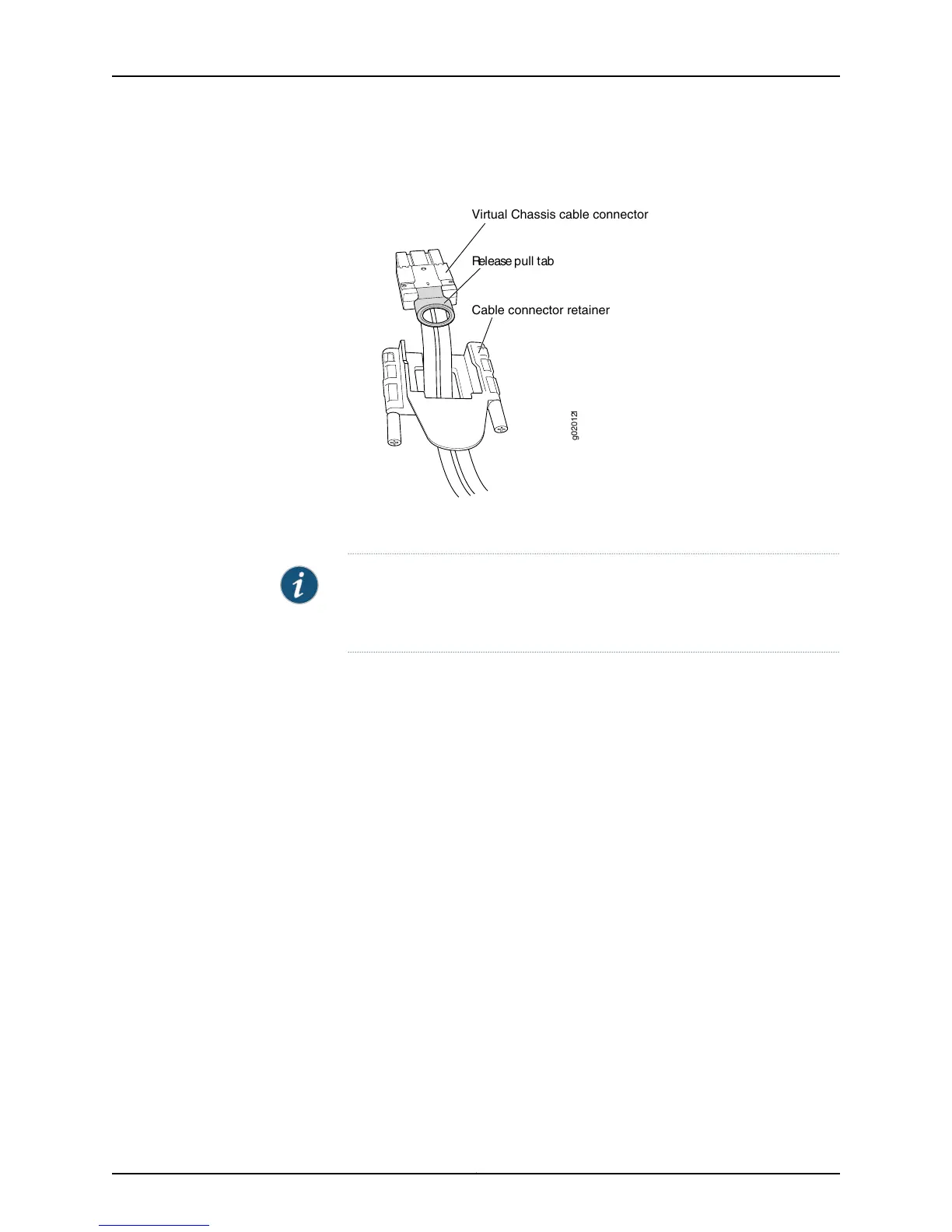

Figure 65: Virtual Chassis Cable Connector in an EX4200 Switch

g020121

Virtual Chassis cable connector

Release pull tab

Cable connector retainer

NOTE: If you order Virtual Chassis cables separately, you must reuse the

cable connector retainers provided with the original cable or order Virtual

Chassis cable connector retainers also separately.

Documentation

• Connecting a Virtual Chassis Cable to an EX4200 Switch on page 241

• UnderstandingEX4200,EX4500, and EX4550 Virtual Chassis Hardware Configurations

on page 143

• Understanding EX Series Virtual Chassis Components

• Planning EX4200, EX4500, and EX4550 Virtual Chassis on page 146

• Virtual Chassis Ports Connector Pinout Information for EX4200 Switches on page 138
