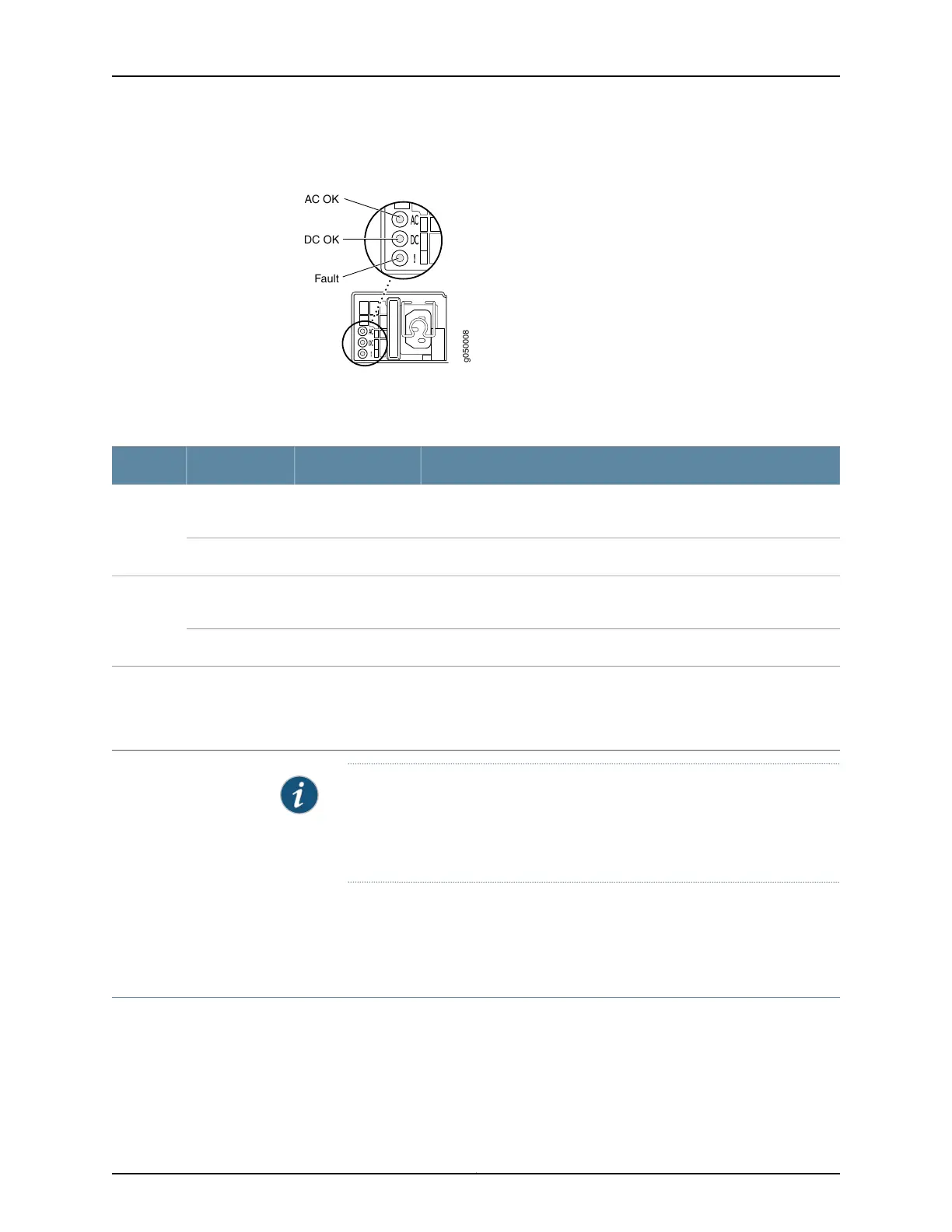

Figure 44: AC Power Supply LEDs on an EX4600 Switch
g050008
AC OK
DC OK
Fault
Table 41 on page 195 describes the LEDs on the AC power supplies.
Table 41: AC Power Supply LEDs on a EX4600 Switch
DescriptionStateColorLED
The power supply is disconnected from power, or power is not coming
into the power supply.
OffUnlitAC OK
Power is coming into the power supply.On steadilyGreen
The power supply is disconnected from power, or the power supply is
not sending out power correctly.
OffUnlitDC OK
The power supply is sending out power correctly.On steadilyGreen
An error has been detected in the power supply. Replace the power
supply as soon as possible. To maintain proper airflow through the
chassis, leave the power supply installed in the chassis until you are
ready to replace it.
On steadilyAmberFault
NOTE: If the AC OK LED and the DC OK LED are unlit, either the AC power
cord is not installed properly or the power supply fuse has failed. If the AC
OK LED is lit and the DC OK LED is unlit, the AC power supply is installed
properly, but the power supply has an internal failure.
Related
Documentation
AC Power Supply in an EX4600 Switch on page 23•
• Connecting AC Power to an EX4600 Switch on page 147
DC Power Supply LEDs on an EX4600 Switch
Figure 45 on page 196 shows the location of the LEDs on the DC power supply.
195Copyright © 2014, Juniper Networks, Inc.
Chapter 23: Viewing System Information

Juniper EX4600 Series Specifications

General

Product Series	EX4600
10GbE ports	24 or 48
Cooling	Front-to-back or back-to-front airflow
Rack Units	1 U
Virtual Chassis	Up to 10 members
MAC address table size	288, 000 entries
Memory	8 GB DRAM
Layer 3 Routing	Yes
AC Power Input	100-240V AC
Ports	24 or 48 x 10GbE ports
40GbE ports	4
100GbE ports	0
Power Supply	Dual redundant, hot-swappable AC or DC
Jumbo frames	9216 bytes
Operating temperature	0°C to 45°C
Input voltage	100-240 VAC, -40 to -72 VDC
Operating relative humidity	5% to 90% noncondensing
Fans	Redundant
JUNOS OS	Junos OS
Storage	16 GB flash
DC Power Input	-40 to -72 VDC
