CAUTION: Do not place a copper transceiver in an access port directly above
or below another copper transceiver. Internal damage to the access ports
and switch can occur. We recommend either using the top port row
exclusively, or bottom port row exclusively, for copper transceivers.

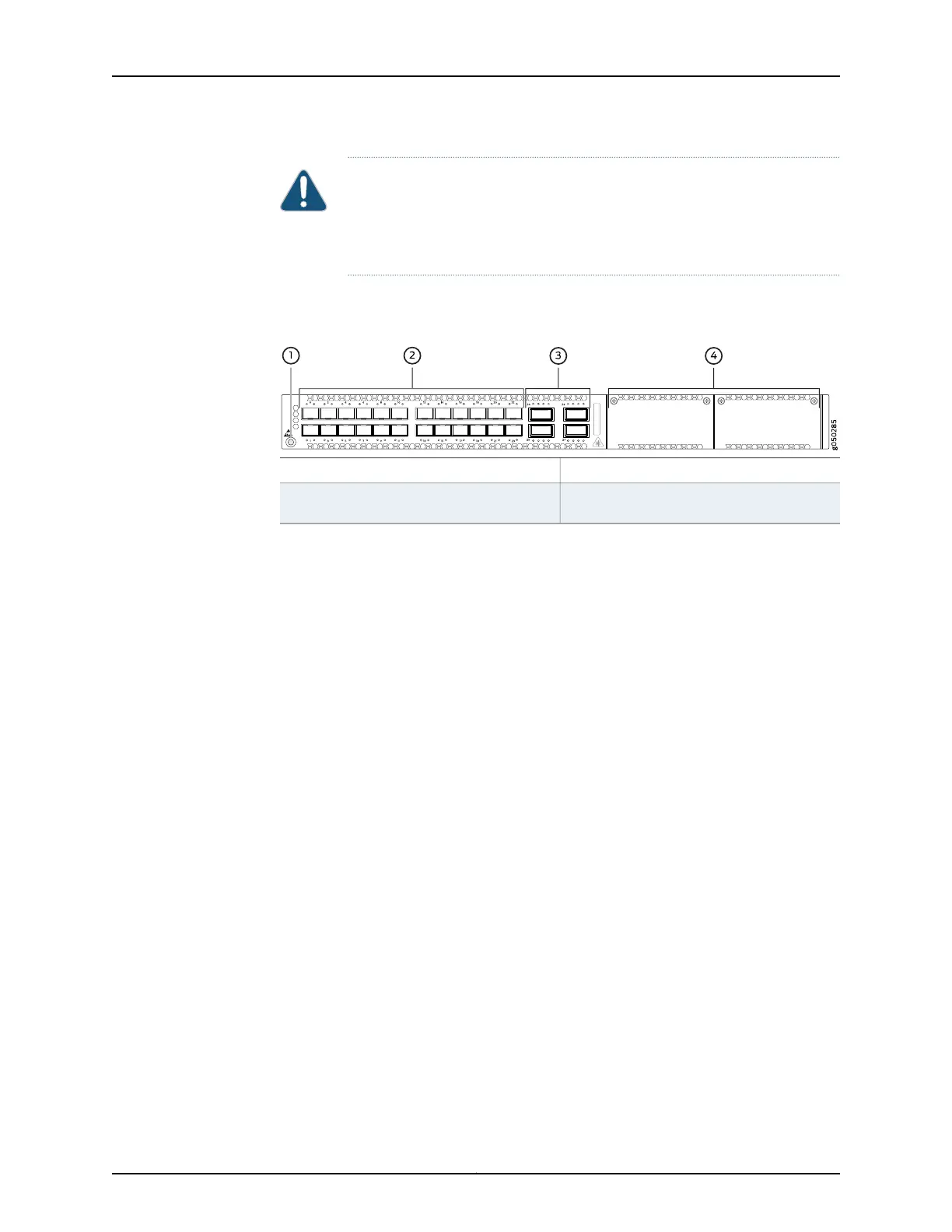

Figure 5 on page 12 shows the port panel of a EX4600 switch.
Figure 5: EX4600 Switch Port Panel
3—1— 40 GbE ports (4)Electrostatic Discharge (ESD) terminal
4—2— Expansion module bays with cover panels
(2)
10 G ports (24)
Related
Documentation
• Field-Replaceable Units in an EX4600 Switch on page 6
• Access Port and Uplink Port LEDs on an EX4600 Switch on page 191
• Installing and Removing EX4600 Switch Hardware Components on page 167
