Juniper EX4600 Series User Manual

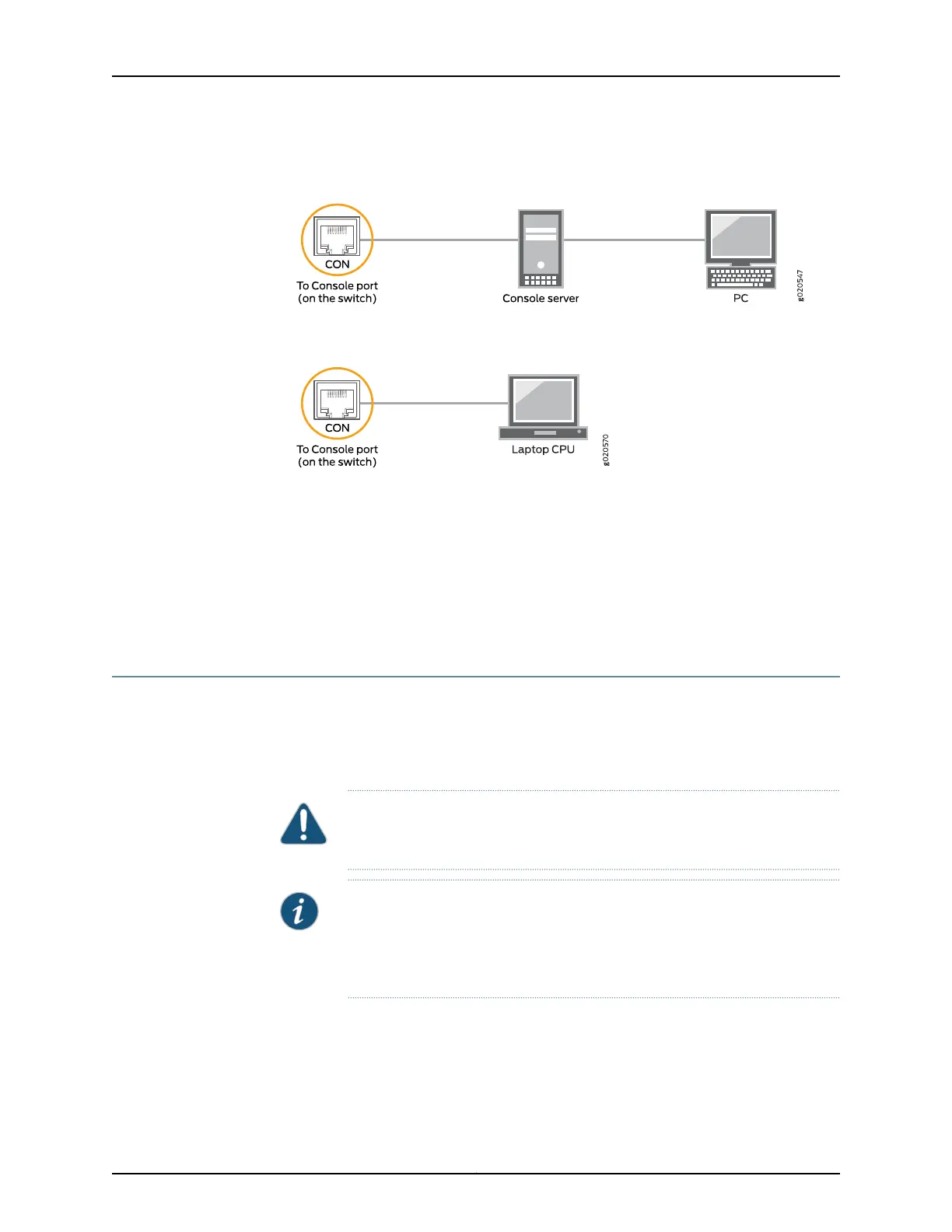

Figure 26: Connecting an EX Series Switch to a Management Console
Through a Console Server
Figure 27: Connecting an EX Series Switch Directly to a Management
Console
Related
Documentation
Configuring the Console Port Type (CLI Procedure)•
• Connecting an EX Series Switch to a Network for Out-of-Band Management
• Console Port Connector Pinout Information for an EX Series Switch on page 45
• Cables Connecting the EX6200 Switch to Management Devices
• Cables Connecting the EX8200 Switch to Management Devices
Connecting an EX4600 Switch to a Network for Out-of-Band Management
You can monitorand managethe EX4600 device using a dedicated management channel.
EX4600 devices have two management ports: a 10/100/1000BASE-T RJ-45 port and a
1-Gbps SFP ports. Use the management ports to connect the EX4600 switchto a network
for out-of-band management.
CAUTION: Configuring the two management interfaces within the same
subnet is not supported.
NOTE: You cannot use the management ports to perform the initial
configuration of the EX4600 switch. You must configure the management
ports before you can successfully connect to the EX4600 switch using these
ports. See “Configuring an EX4600 Switch” on page 159.
Ensure that you have an appropriate cable available. See “Cable Specifications for Console
and Management Connectionsfor the EX4600” on page 44 and “Interface Specifications
for SFP, SFP+, and QSFP+ Transceivers for the EX4600 Switch” on page 49
155Copyright © 2014, Juniper Networks, Inc.
Chapter 17: Connecting the EX4600 Device

Juniper EX4600 Series Specifications

General

Product Series	EX4600
10GbE ports	24 or 48
Cooling	Front-to-back or back-to-front airflow
Rack Units	1 U
Virtual Chassis	Up to 10 members
MAC address table size	288, 000 entries
Memory	8 GB DRAM
Layer 3 Routing	Yes
AC Power Input	100-240V AC
Ports	24 or 48 x 10GbE ports
40GbE ports	4
100GbE ports	0
Power Supply	Dual redundant, hot-swappable AC or DC
Jumbo frames	9216 bytes
Operating temperature	0°C to 45°C
Input voltage	100-240 VAC, -40 to -72 VDC
Operating relative humidity	5% to 90% noncondensing
Fans	Redundant
JUNOS OS	Junos OS
Storage	16 GB flash
DC Power Input	-40 to -72 VDC
