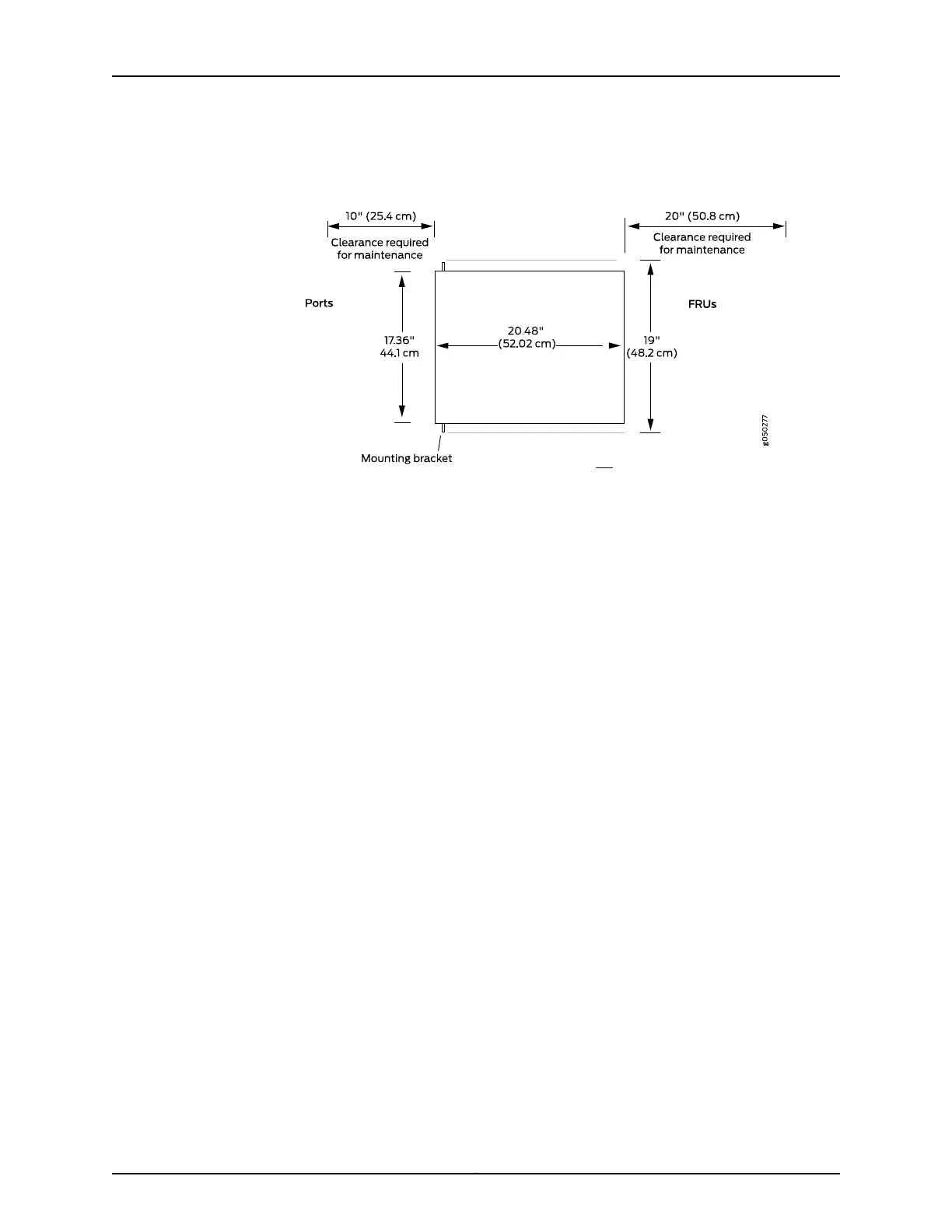

Figure 15: Clearance Requirements for Airflow and Hardware Maintenance
for a EX4600 Switch
•
For the cooling system to function properly, the airflow around the chassis must be
unrestricted. See “Cooling System and Airflow in an EX4600 Switch” on page 13 for
more information about the airflow through the chassis.
•
If you are mounting an EX4600 switch in a rack or cabinet with other equipment, ensure
that the exhaust from other equipment does not blow into the intake vents of the
chassis.
•
Leave at least 24 in. (61 cm) both in front of and behind the EX4600 switch. For service
personnel to remove and install hardware components, you must leave adequate
space at the front and back of the switch. NEBS GR-63 recommends that you allow
at least 30 in. (76.2 cm) in front of the rack or cabinet and 24 in. (61 cm) behind the
rack or cabinet.
Related
Documentation
• Rack Requirements for an EX4600 Switch on page 39
• Cabinet Requirements for an EX4600 Switch on page 40
• General Site Guidelines on page 32
• Rack-Mounting and Cabinet-Mounting Warnings on page 108
Copyright © 2014, Juniper Networks, Inc.42
EX4600 Switch Hardware Guide

Juniper EX4600 Series Specifications

General

Product Series	EX4600
10GbE ports	24 or 48
Cooling	Front-to-back or back-to-front airflow
Rack Units	1 U
Virtual Chassis	Up to 10 members
MAC address table size	288, 000 entries
Memory	8 GB DRAM
Layer 3 Routing	Yes
AC Power Input	100-240V AC
Ports	24 or 48 x 10GbE ports
40GbE ports	4
100GbE ports	0
Power Supply	Dual redundant, hot-swappable AC or DC
Jumbo frames	9216 bytes
Operating temperature	0°C to 45°C
Input voltage	100-240 VAC, -40 to -72 VDC
Operating relative humidity	5% to 90% noncondensing
Fans	Redundant
JUNOS OS	Junos OS
Storage	16 GB flash
DC Power Input	-40 to -72 VDC
