KAESER SIGMA CONTROL 2 Service Manual

1 SIGMA CONTROL 2 Quick installation guide
1.1 Operating elements

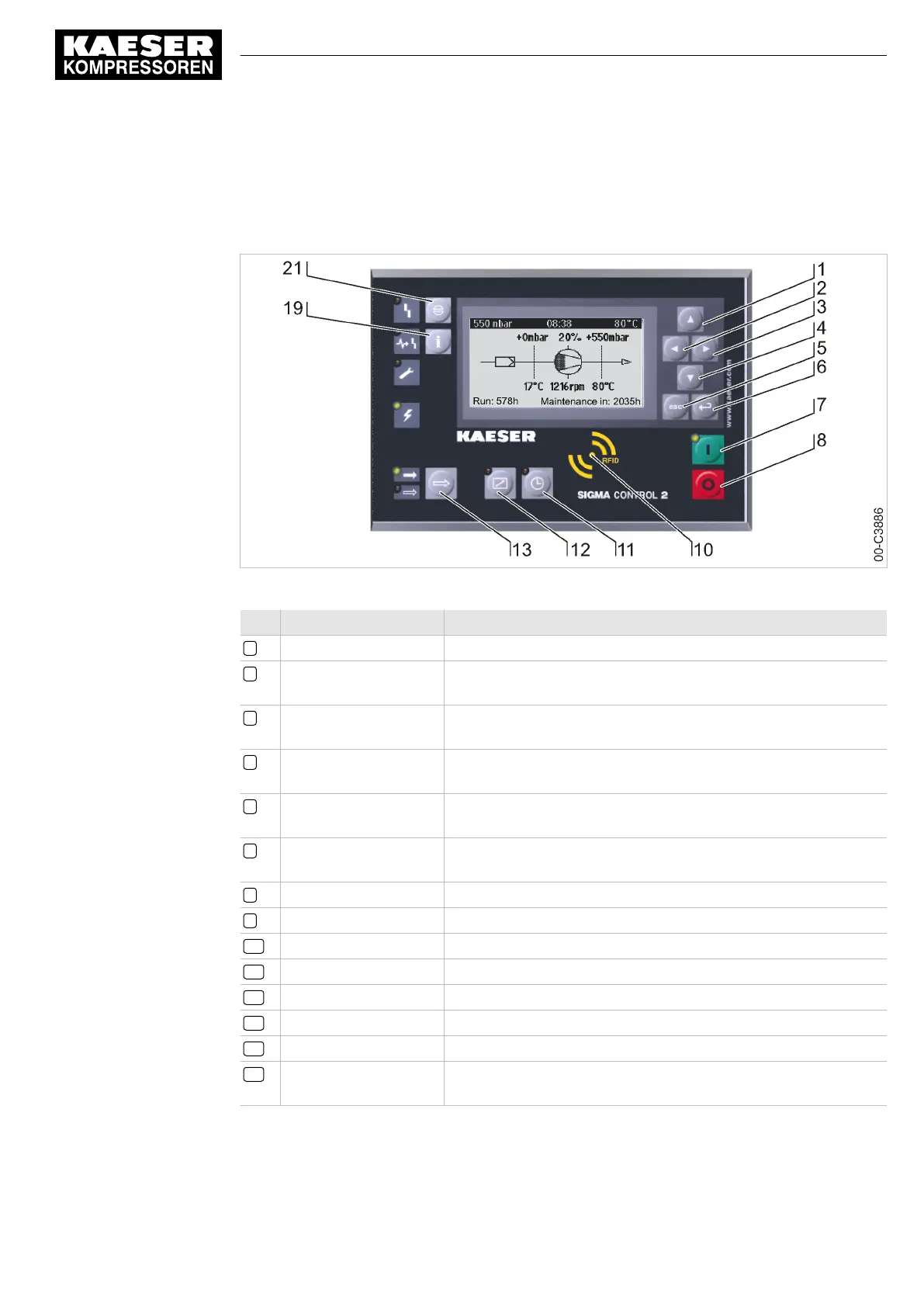

Fig. 1 Operating elements
Item Designation Function
1 «Up» Scrolls up the menu options. Increases a parameter value.
2 «Left» Jumps to the left.
Moves the cursor position to the left.
3 «Right» Jumps to the right.
Moves the cursor position to the right.
4 «Down» Scrolls down the menu options.
Reduces a parameter value.
5 «Escape» Returns to the next higher menu option level.
Exits the edit mode without saving.
6 «Enter» Jumps to the selected submenu option.
Exits the edit mode and saves.
7 «ON» Switches the machine on.
8 «OFF» Switches the machine off.
10 RFID RFID reader for user log-in with RFID Equipment Card.
11 «Time control» Switches the time control on and off.
12 «Remote control» Switches the remote control on and off.
13 «LOAD/IDLE» Toggles between the LOAD and IDLE modes.
19 «Information» Displays the event memory.
21 «Acknowledgement» Confirms/acknowledges alarms and warning messages.
If permissible: Resets the fault counter (RESET).
Tab. 1 Operating elements
1 SIGMA CONTROL 2 Quick installation guide
1.1 Operating elements
No.: 901700 10 E
Service Manual Controller
SIGMA CONTROL 2 BLOWER ≥ 2.5.3
1
