5.3 Operating panel
5.3.1 Operating elements

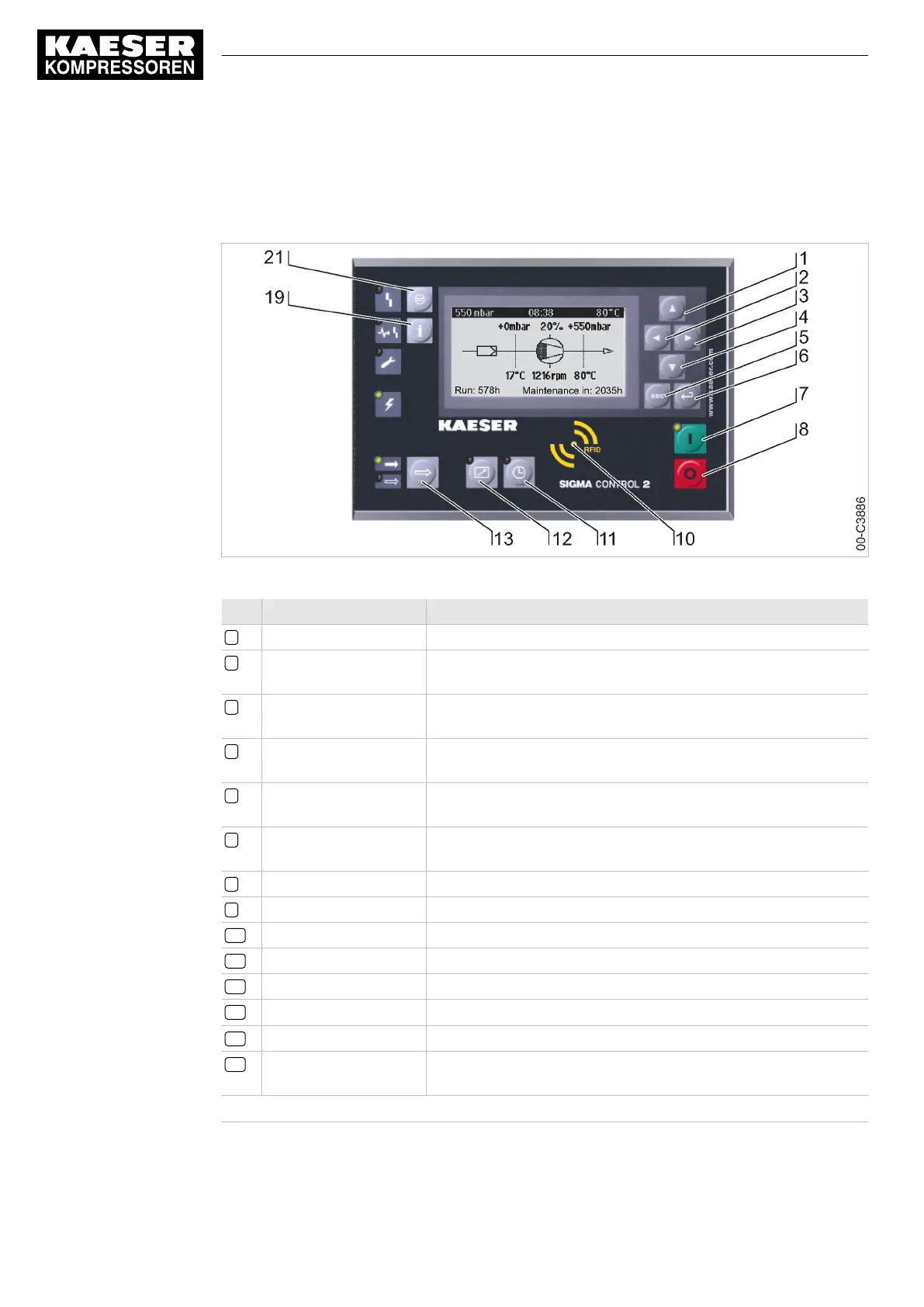

Fig. 5 Operating elements
Item Designation Function
1 «Up» Scrolls up the menu options. Increases a parameter value.
2 «Left» Jumps to the left.
Moves the cursor position to the left.
3 «Right» Jumps to the right.
Moves the cursor position to the right.
4 «Down» Scrolls down the menu options.
Reduces a parameter value.
5 «Escape» Returns to the next higher menu option level.
Exits the edit mode without saving.
6 «Enter» Jumps to the selected submenu option.
Exits the edit mode and saves.
7 «ON» Switches the machine on.
8 «OFF» Switches the machine off.
10 RFID RFID reader for user log-in with RFID Equipment Card.
11 «Time control» Switches the time control on and off.
12 «Remote control» Switches the remote control on and off.
13 «LOAD/IDLE»
Toggles between the LOAD and IDLE
12)
operating points.
19 «Information» Displays the event memory.
21 «Acknowledgement» Confirms/acknowledges alarms and warning messages.
If permissible: Resets the fault counter (RESET).
12)
not for SXC
Tab. 34 Operating elements
