8.3.4 Messages menu
The following messages types can be displayed:
■ Current messages
■ Blower messages
■ System messages
■ Diagnostic messages
Precondition KAESER CONNECT for SIGMA CONTROL 2 is displayed.

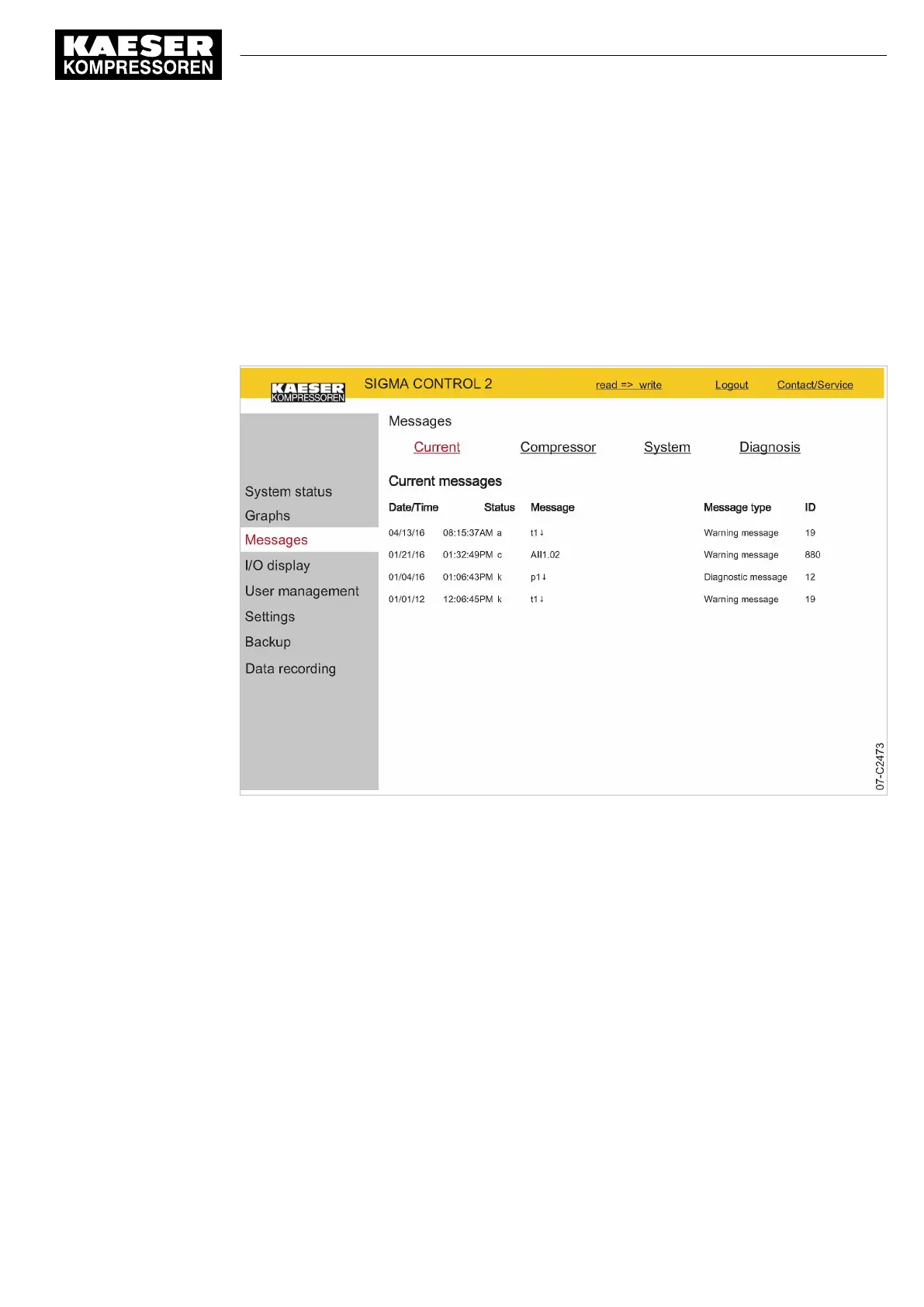

Fig. 23
Messages
(illustration similar)
1. Click the
Messages
menu element.
The
Messages
menu is displayed
2. Click the required message type.
3. Check messages.
8.3.5 I/O display menu
The measured values of the analogue inputs and the states of the digital inputs and outputs are
displayed in the
I/O display
menu. Depending on the machine options, you may select from further
IOM module tabs.
Precondition KAESER CONNECT for SIGMA CONTROL 2 is displayed.
8 Initial Start-up
8.3 KAESER CONNECT benefits
No.: 901700 10 E
Service Manual Controller
SIGMA CONTROL 2 BLOWER ≥ 2.5.3
73
