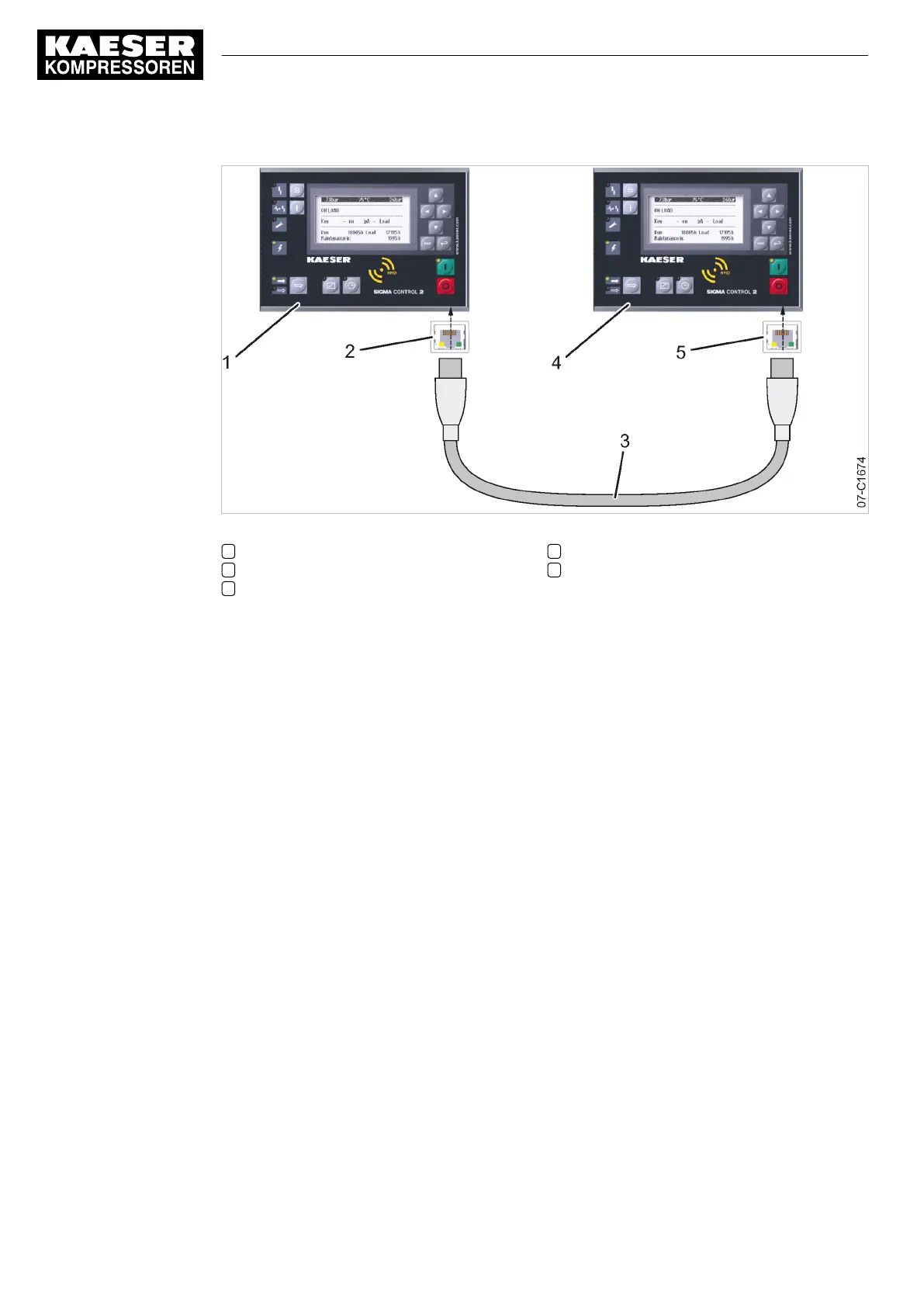

Fig. 31 Direct connection of two SIGMA CONTROL 2
1 Controller machine 1 (Master mode)
2 Ethernet interface X1
3 Ethernet cable, cross-linked
4 Controller machine 2 (Slave mode)
5 Ethernet interface X1
➤ Install the Ethernet cable between the two machines.
When you connect the machines to a network (LAN) or switch (when using KAESER CONNECT
for example).
➤ Install the Ethernet cable from each machine to the LAN connection or switch.
Connect the Ethernet cable with the machine
For each machine:
1. Insert the Ethernet cable into the machine and the machine's control cabinet, using an EMC
connection.
2. Lead the Ethernet cable through the cable ducts to SIGMA CONTROL 2. Use the wiring path
in the 24V range (blue wiring) of the ducts.
3. Attach the RJ45-plug to the cable end.
4. Plug the RJ45 plug into the Ethernet interface X1 of the SIGMA CONTROL 2 until it latches.
For connecting the machines to a network (LAN) or switch:
Connect the Ethernet cable for each machine to the LAN connection or switch.
1. Attach the RJ45-plug to the cable end.
2. Plug the RJ45plug into the network socket until it latches.
8.7.4.2 Setting the controller of machine 1 as master
Precondition The electrical connection is made.
Access level 2 is activated.
8 Initial Start-up
8.7 Setting the machine for master control operation
116
Service Manual Controller
SIGMA CONTROL 2 BLOWER ≥ 2.5.3 No.: 901700 10 E
