Crest factor
AC voltage and current accuracies are affected by the crest factor of the waveform, the ratio
of the peak value to the RMS value. 500Hz is the maximum fundamental frequency at which the
corresponding crest factor must be taken into account for accuracy calculations.
Low level considerations
For sensitive measurements, external considerations beyond the Model 2010 affect the
accuracy. Effects not noticeable when working with higher voltages are significant in microvolt
signals. The Model 2010 reads only the signal received at its input; therefore, it is important that
this signal be properly transmitted from the source. The following paragraphs indicate factors
that affect accuracy, including stray signal pick-up and thermal offsets.
2001 MULTIMETER
Model 2010
Caution: Maximum Input = 1000V peak
DC Voltage
Source
Input Resistance = 10MΩ on 1000V and 100V ranges;
> 10GΩ on 10V, 1V and 100mV ranges.
SHIFT
CH1REM
TALK
LSTN
SRQ
STATREL FILT
4W
BUFFER
MATH
REAR
SCAN
TIMER
STEP CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10
HOLD TRIG FAST MED SLOW AUTO ERR
2001 MULTIMETER
Caution: Maximum Input = 750V RMS, 1000V peak, 8 x 10
7
V•Hz
AC Voltage
Source
Model 2010
Input Impedence = 1MΩ in parallel with <100pF.
SHIFT
CH1REM
TALK
LSTN
SRQ
STATREL FILT
4W
BUFFER
MATH
REAR
SCAN
TIMER
STEP CH2 CH3 CH4 CH5 CH6 CH7 CH
8
CH9 CH1
0
HOLD TRIG FAST MED SLOW AUTO ERR

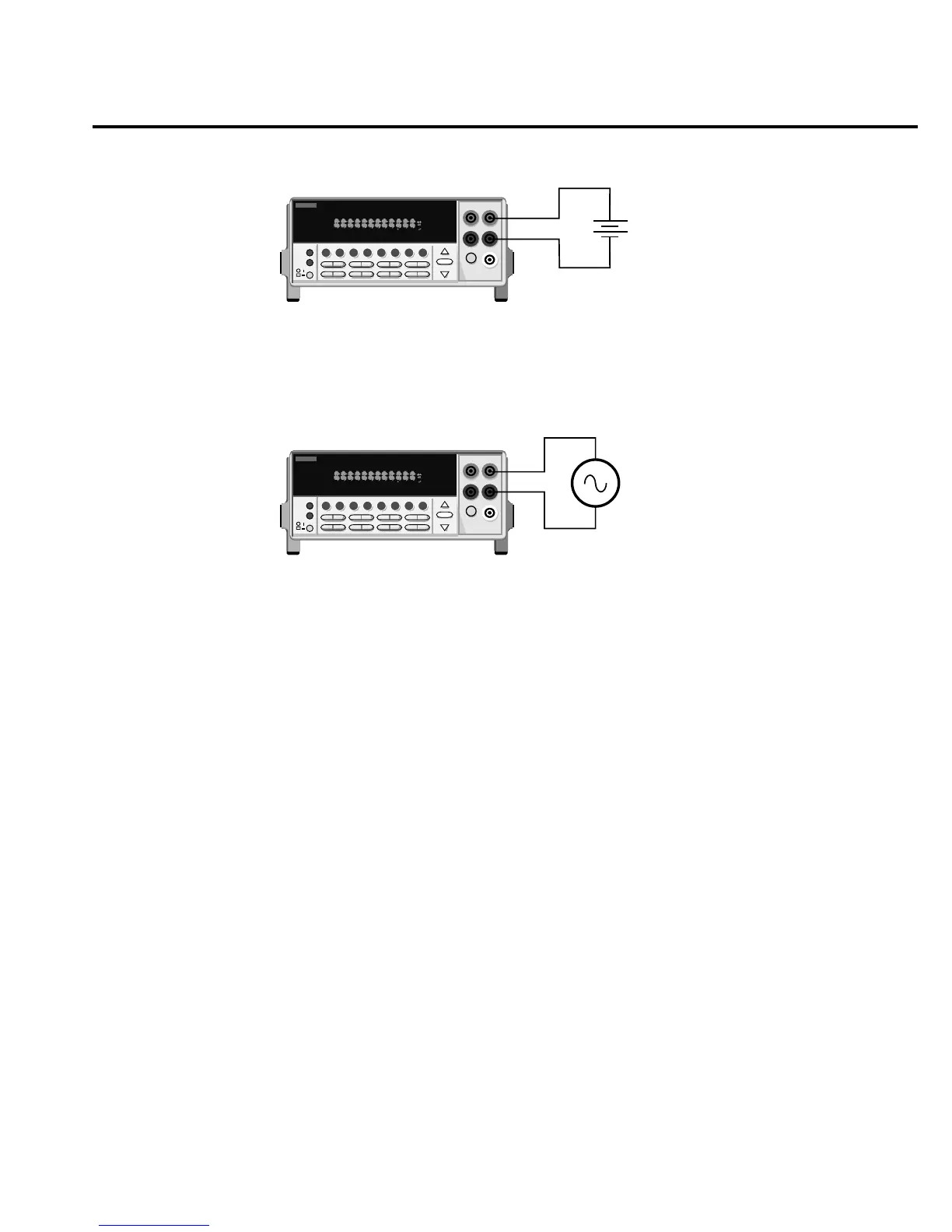

Fi
gure
2
-
4
D
C and AC voltage
measurements
Maximum Common Mode = 500V peak.
Maximum Common Mode = 500V peak.
Basic Measurements 2-17

Keithley 2010 Specifications

General

Frequency Range	3 Hz to 300 kHz
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	3 A
DC Current Accuracy	0.05%
AC Current Range	3 A
Resistance Accuracy	0.01%
Interface	GPIB, RS-232
Power Supply	50 Hz or 60 Hz
