Trigger model (GPIB operation)
The following paragraphs describe how the Model 2010 Multimeter operates over the GPIB
bus. The flowchart in Figure 4-11 summarizes operation over the bus. The flowchart is called the
trigger model because operation is controlled by SCPI commands from the Trigger subsystem
(see Section 5 for more information). Key SCPI commands are included in the trigger model.
:ABOrt
*RCL
:SYST:PRES
Language Change
No
Yes
Idle
and
Initiate
:Trigger:Signal
Control
Source
:Trigger:Source Immediate
:Trigger:Source External
:Trigger:Source Timer
:Trigger:Source Manual
:Trigger:Source BUS
:Trigger:Delay <n>
:Trigger:Delay:AUTO <b>
Delay
Device
Action
(see Figure 4-12)
:Sample:Count <n>
Another
Sample
?
:Trigger:Count <n> Infinit
Another
Trigger
?
:INIT (:IMM)
or
:INIT:CONT ON
?
Event
Detection
:INIT (:IMM)
or
:INIT:CONT ON
?
No
No
No
Yes
Yes
Output
Trigger
Yes
gure
-

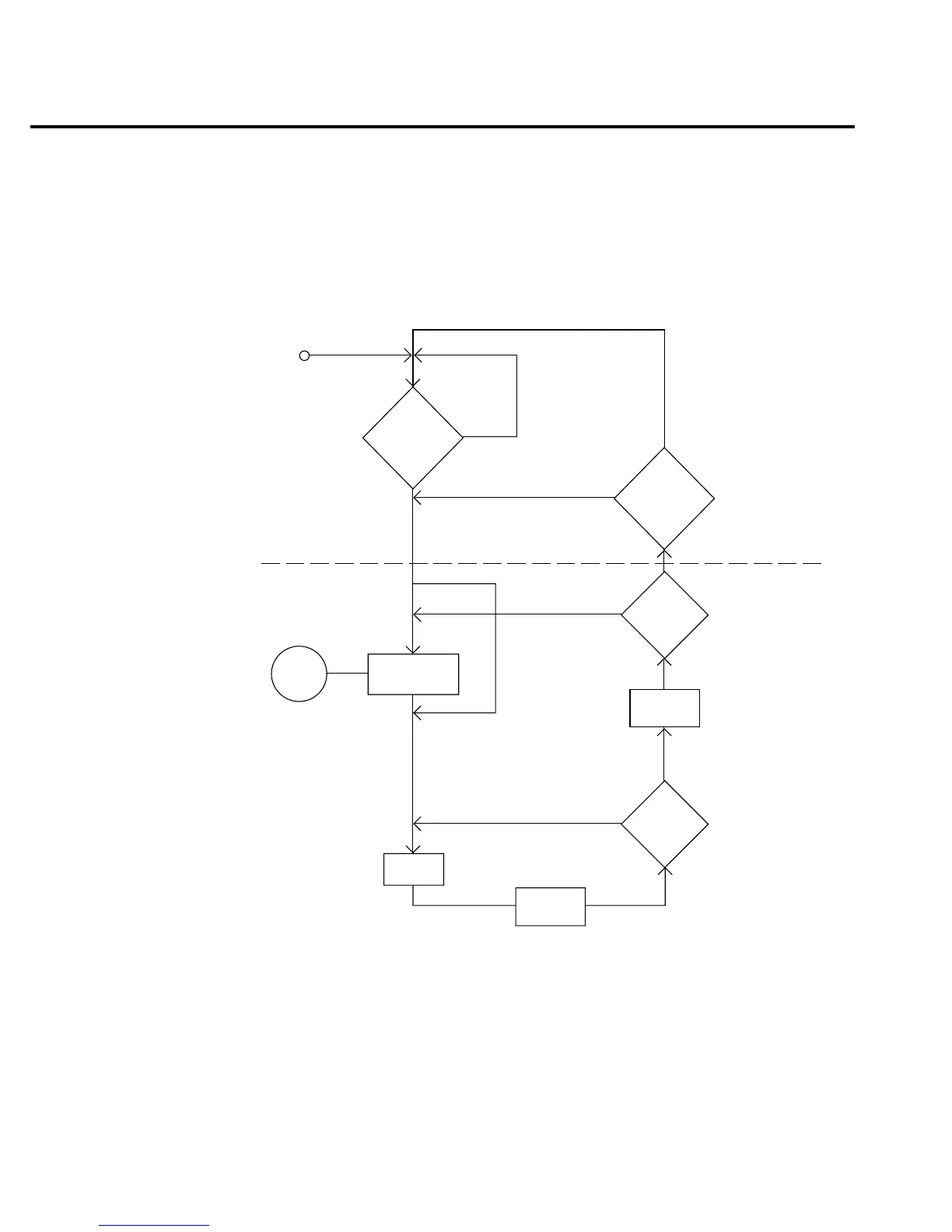

Trigger model (remote
operation)
4-24 Remote Operation
