Keithley 2010 User Manual

Stepping and scanning trigger model additions
The trigger model presented in “Trigger operations” earlier in this section has some
additional capabilities when stepping or scanning. These are outlined below:
• Timer — With this control source, event detection is immediately satisfied on the initial
pass. Each subsequent detection is satisfied when the programmed timer interval (up to
99H:99M:99.99S) elapses.
• Reading counter — For both stepping and scanning, the reading count can be entered
from SHIFT-CONFIG. (This is referred to as the trigger counter over the bus.) The
reading counter can bypass the idle state. Operation will wait until the programmed
control source event occurs.
• Channel counter — For scanning, the scan list length (maximum channel less minimum
channel) is used to bypass the control source allowing a specified number of device
actions to occur. (This counter is referred to as the sample counter over the bus.)
These additional blocks are shown in the trigger models of Figure 3-12 and Figure 3-13. Uses
of the timer control source, reading counter, and channel counter are shown in the scanning
examples later in this section.
Idle
Control
Source
Immediate
External
Timer
Event
Detection
Delay
Device
Action
Output
Trigger
More
Readings
?
Reading
Count
(Trigger Counter)
Yes
No

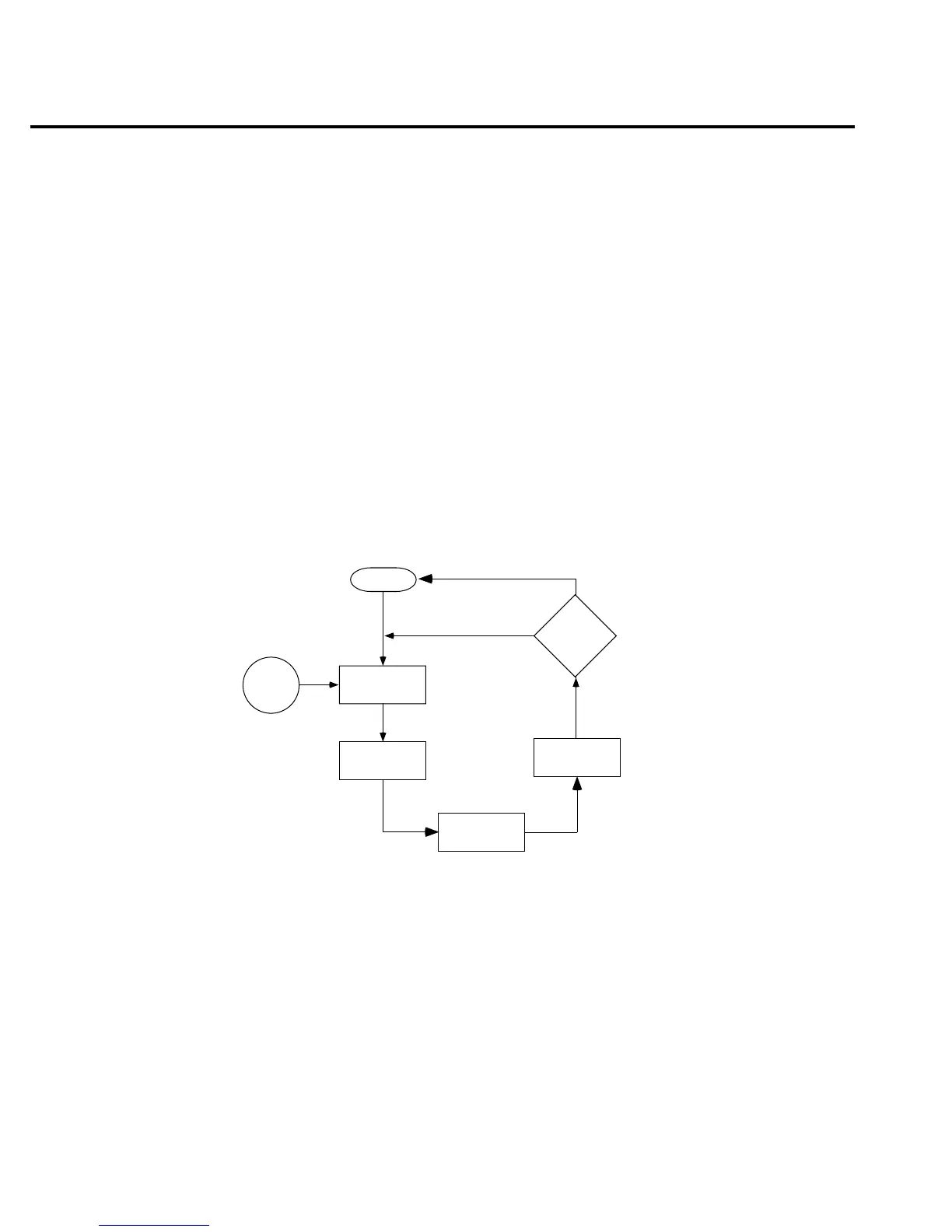

Fi
gure
3
-
12
F
ront panel triggering
with stepping
3-22 Measurement Options
