Keithley 2010 User Manual

Connections
2001 MULTIMETER
Model 2010
SHIFT
CH1REM
TALK
LSTN
SRQ
STATREL FILT
4W
BUFFER
MATH
REAR
SCAN
TIMER
STEP CH2 CH3 CH4 CH5 CH6 CH7 CH
8
CH9 CH1
0
HOLD TRIG FAST MED SLOW AUTO ERR
Sense Ω4-wire HI
Platinum
RTD
Input HI
Input LO
Sense Ω4-wire LO
A. Thermocouple Connections
B. 4-Wire RTD Connections
2001 MULTIMETER
Model 2010
SHIFT
CH1REM
TALK
LSTN
SRQ
STATREL FILT
4W
BUFFER
MATH
REAR
SCAN
TIMER
STEP CH2 CH3 CH4 CH5 CH6 CH7 CH
8
CH9 CH1
0
HOLD TRIG FAST MED SLOW AUTO ERR
OUT A HI
OUT A LO
Input
LO
Input
HI
Note: This thermocouple card
must be inserted into a
Keithley Model 2010.
Note: Front or rear inputs
can be used.
2001-TCSCAN
CH 2
+
-
Fi
gure
2
-
9

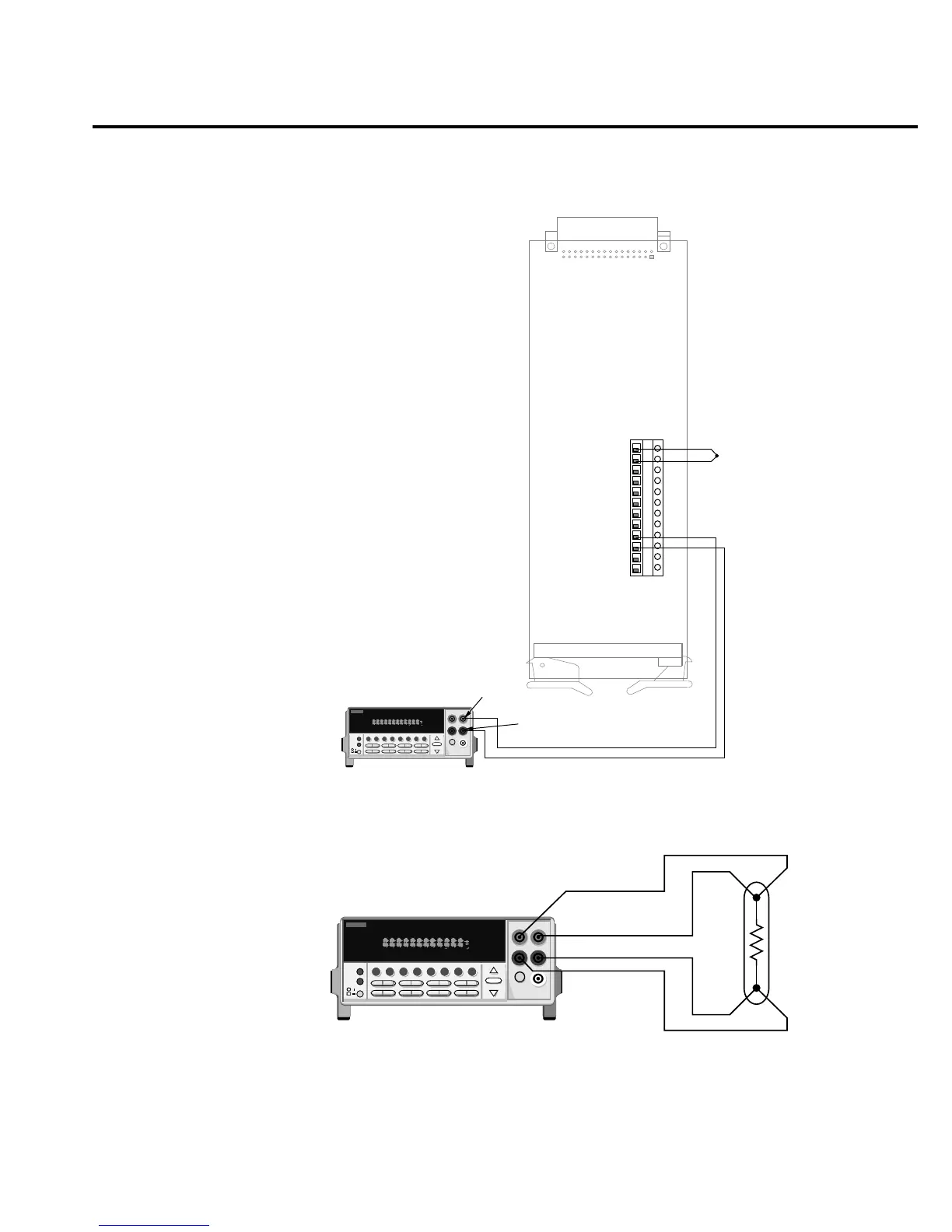

Thermocouple and RTD
temperature measurements
Basic Measurements 2-31
