Keithley 2010 User Manual

Using SHIFT-CONFIG to configure stepping and scanning
Using the SHIFT-CONFIG key combination, you can select internal or external scanning, the
minimum and maximum channels in the scan list, the time between scans, and the reading count.
To configure stepping or scanning, perform the following:
1. Select the desired measurement function.
2. Press the SHIFT-CONFIG keys to access the step/scan configuration.
3. Select the type of scan (INTernal or EXTernal) by using the ▲ and ▼ keys and pressing
ENTER.
4. Select the first channel in the scan list (MINimum CHANnel) by using the , , ▲,
and ▼ keys and pressing ENTER.
5. Select the last channel in the scan list (MAXimum CHANnel) and press ENTER to
confirm.
6. The next selection is for timed scans. This is the Timer control source in the trigger
model. It sets a user-specified interval for starting scans. If you choose timed scans, the
Model 2010 prompts for a time interval:
00H:00M:00.000S
Use the , , ▲, and ▼ keys to select a time interval and press ENTER to confirm.

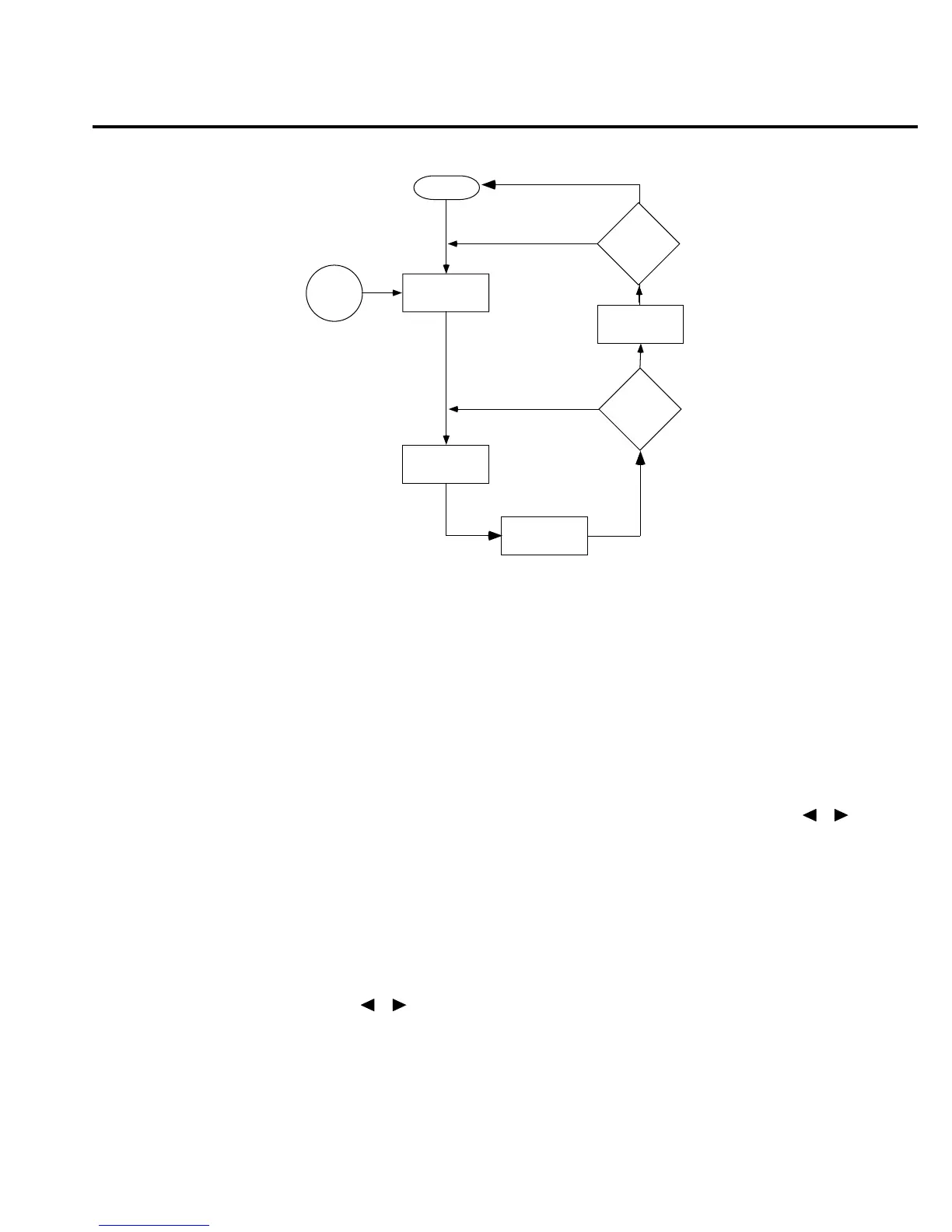

Idle
Control
Source
Immediate
External
Timer
Event
Detection
Delay
Device
Action
Output
Trigger
More
Readings
?
Reading
Count
(Trigger Counter)
Yes
No
More
Channels
?
Yes
No
Scan List
Length
(Sample Counter)
Fi
gure
3
-
13
F
ront panel triggering
with scanning
Measurement Options 3-23
