Keysight Technologies B1505A Configuration Guide

Keysight B1505A Configuration and Connection Guide 5-7

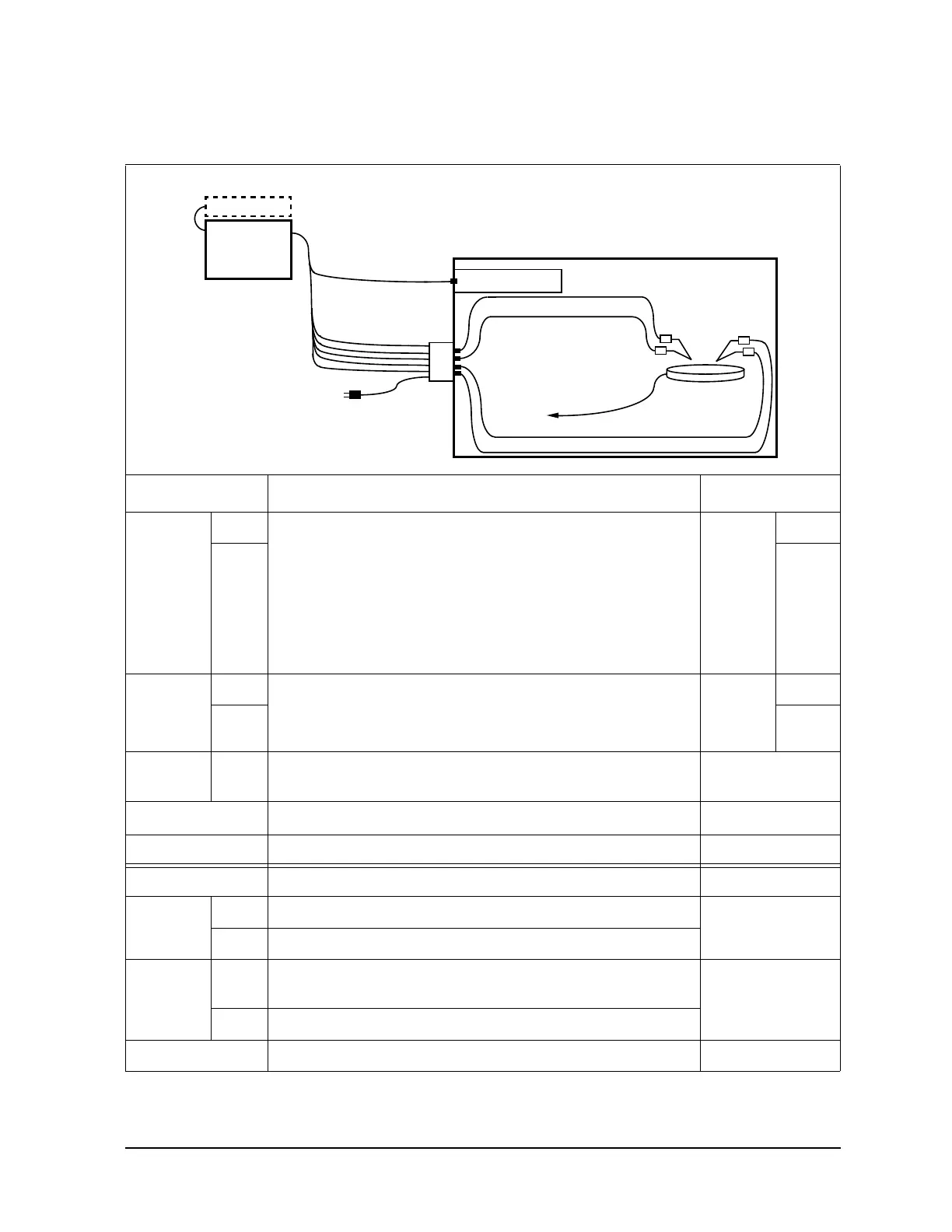

Connection Guide for Wafer Prober and Your Own Test Fixture
Connection Overview
Table 5-3 To Connect N1258A Module Selector
B1505A terminals Required cables N1258A terminals
HPSMU
or
MPSMU
Force 16494A Triaxial cable, 3 m or 1.5 m, 1 ea., for the non-Kelvin
connection, connect it between the Force connectors.
For the Kelvin connection, prepare additional one more cable and
connect it between the Sense connectors. Or use 16493K Kelvin
triaxial cable instead of 16494A.
Use 16493K cable if the High output terminals are connected to
the prober chuck.
HPSMU
Force
Sense Sense
HCSMU
or
DHCSMU
Force 16493S HCSMU cable, 3 m or 1.5 m, 1 ea. for HCSMU
16493S HCSMU cable, 3 m or 1.5 m, 2 ea. and 16493S-021 Dual
HCSMU adapter, 1 ea. for DHCSMU
HCSMU
Force
Sense Sense
HVSMU
Force 16493T HVSMU cable, 3 m or 1.5 m, 1 ea.
HVMCU can be used instead of HVSMU. See Table 5-2.
HVSMU
GNDU
16493L GNDU cable, 3 m or 1.5 m, 1 ea. Also see Table 5-2.
GNDU
Digital I/O 16493G Digital I/O connection cable, 3 m or 1.5 m, 1 ea. Digital I/O
N1258A terminals Required cables/Description Connect to
Low
Force Coaxial cable with BNC(m) connector. N1254A-503 can be used. DUT low terminal
(ex: source)
1
1. Non-Kelvin connection is not allowed. GNDU Force and Sense are internally connected to Low Sense.
See Table 5-22 on page 5-31.
Sense Coaxial cable with BNC(m) connector. N1254A-503 can be used.
High
Force Coaxial cable with HV(plug) connector. N1254A-506 can be used.
Use coaxial cable to minimize affect of inductance.
DUT high terminal
(ex: drain)
1
Sense Triaxial cable with HV(plug) connector. N1254A-505 can be used.
LINE Power cable, 1 ea., for connecting to power line site AC power
Shielding box
B1505A
DUT interface
N1258A
Interlock circuit
16493S
16493T
Sense
Force
Low
High
Sense
Force
*2
*1
*4
*1: 1252-1419
*2: N1254A-506 or other cable, 1 ea.
*3: N1254A-505 or other cable, 1 ea.
*4: N1254A-503 or other cable, 2 ea.
16493G
16494A/16493K
16493L
*3
16493J
N1266A
*5
*5: 16494A, 4 ea., 16493L, 16493T, and 16493G
to configure HVMCU.
