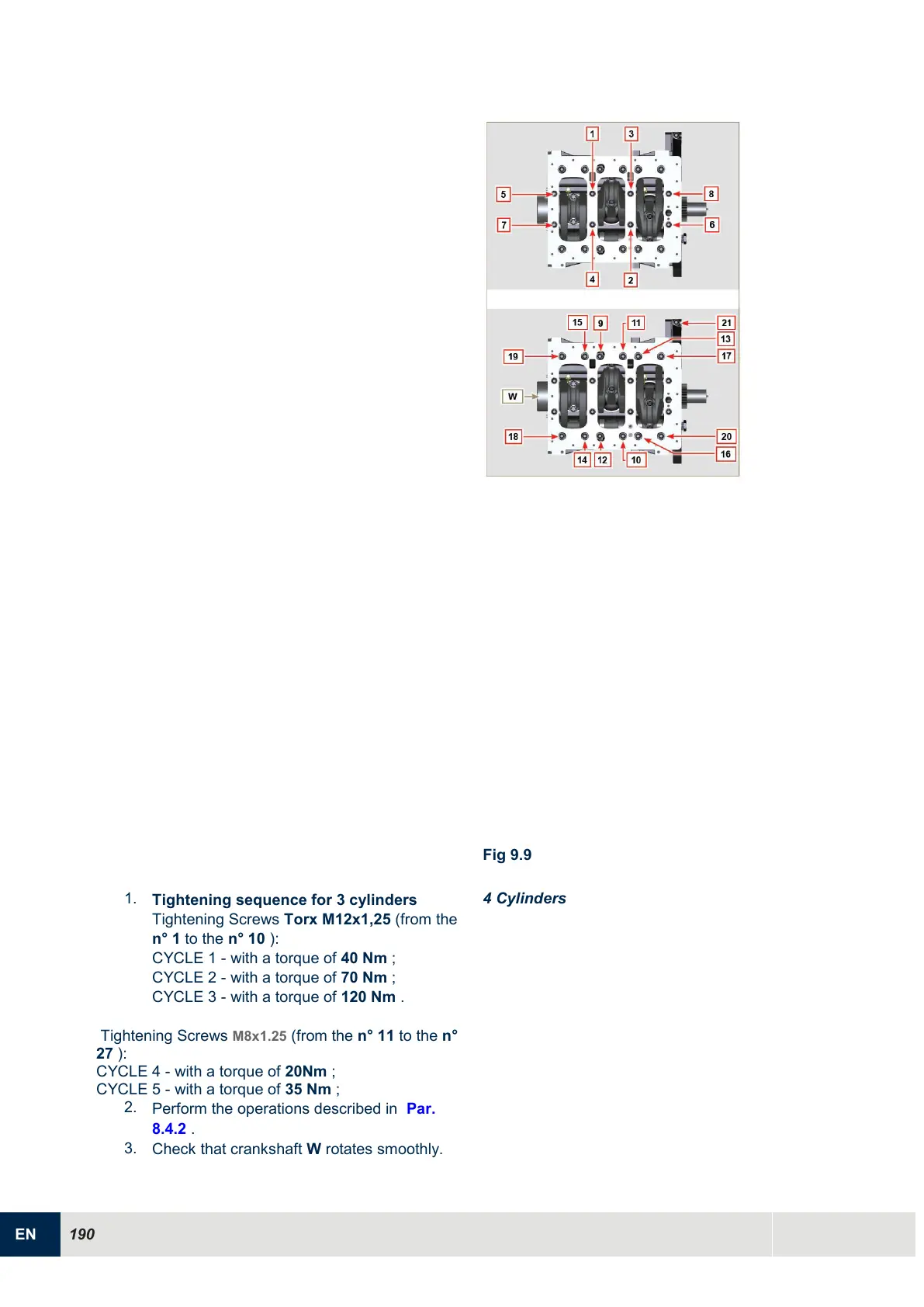

Fig 9.9
1.
Tightening sequence for 3 cylinders
Tightening Screws Torx M12x1,25 (from the
n° 1 to the n° 10 ):
CYCLE 1 - with a torque of 40 Nm ;
CYCLE 2 - with a torque of 70 Nm ;
CYCLE 3 - with a torque of 120 Nm .
Tightening Screws M8x1.25 (from the n° 11 to the n°
27 ):
CYCLE 4 - with a torque of 20Nm ;
CYCLE 5 - with a torque of 35 Nm ;
2.
Perform the operations described in Par.
8.4.2 .
3.
Check that crankshaft W rotates smoothly.
