Kohler KDI 1903 TCR - Page 191

191
EN
Fig 9.10

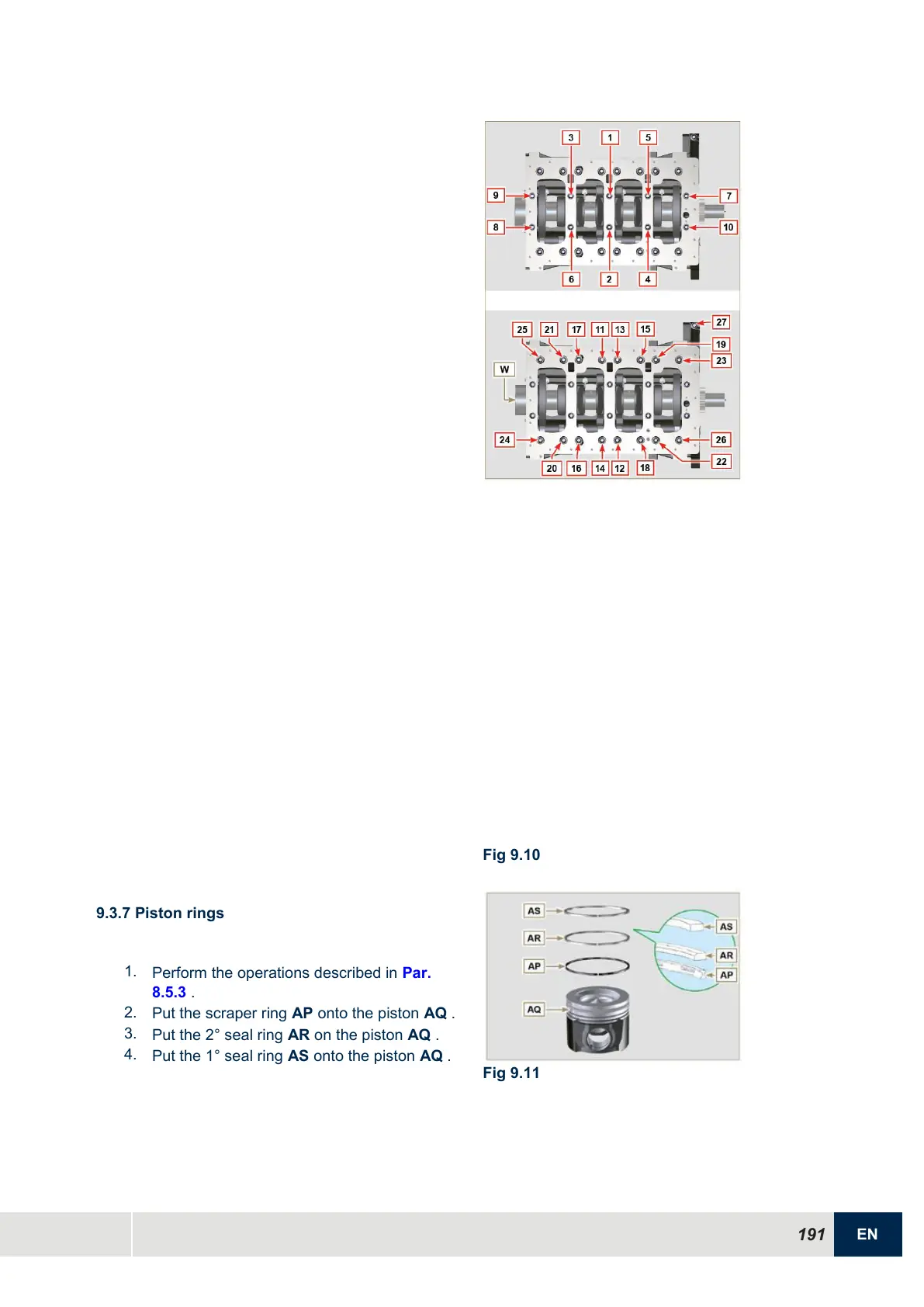

9.3.7 Piston rings
1.
Perform the operations described in Par.
8.5.3 .
2.
Put the scraper ring AP onto the piston AQ .
3.
Put the 2° seal ring AR on the piston AQ .
4.
Put the 1° seal ring AS onto the piston AQ .
Fig 9.11
