DETAILED CONTROLS AND GAUGES OPERATION
3-122

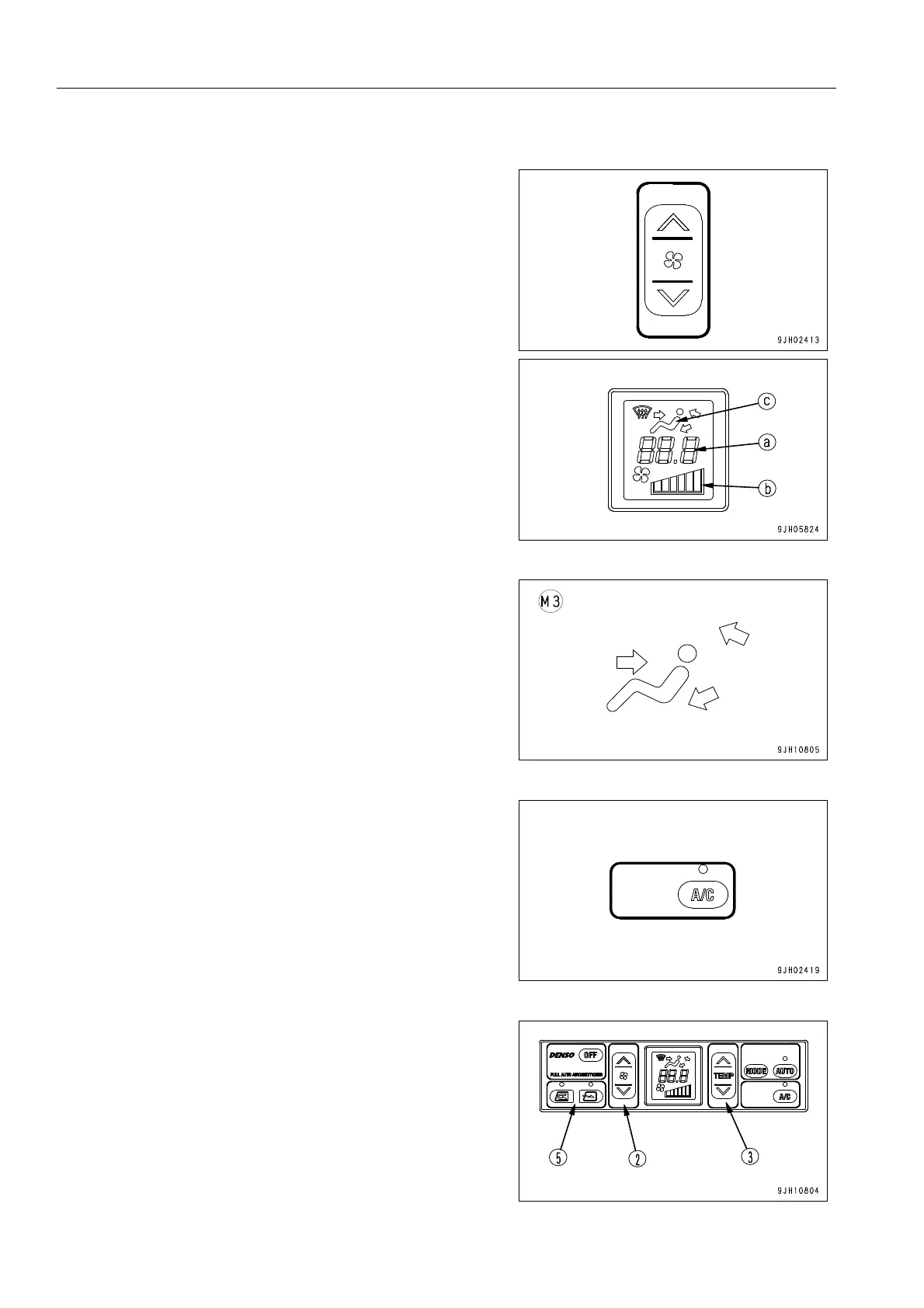

Operation with Cold Air to Face and Warm Air to Feet
To operate with cold air blowing to the face and warm air blow-
ing to the feet, set as follows.
1. Press fan switch (2) and adjust the air flow. When doing
this, check that temperature setting (a) and air flow (b) are
displayed on monitor (7).
2. Press vent selector switch (4) and set vent display (c) on
the display monitor to mode display (M3) as shown in the
diagram on the right.
3. Turn air conditioner switch (7) ON. When this is done, the
lamp above the air conditioner switch lights up.
4. Set or adjust fan switch (2), temperature setting switch (3),
and FRESH/RECIRC selector switch (5) to the desired
positions.
To Next Page
