OPERATION DETAILED CONTROLS AND GAUGES
3-145

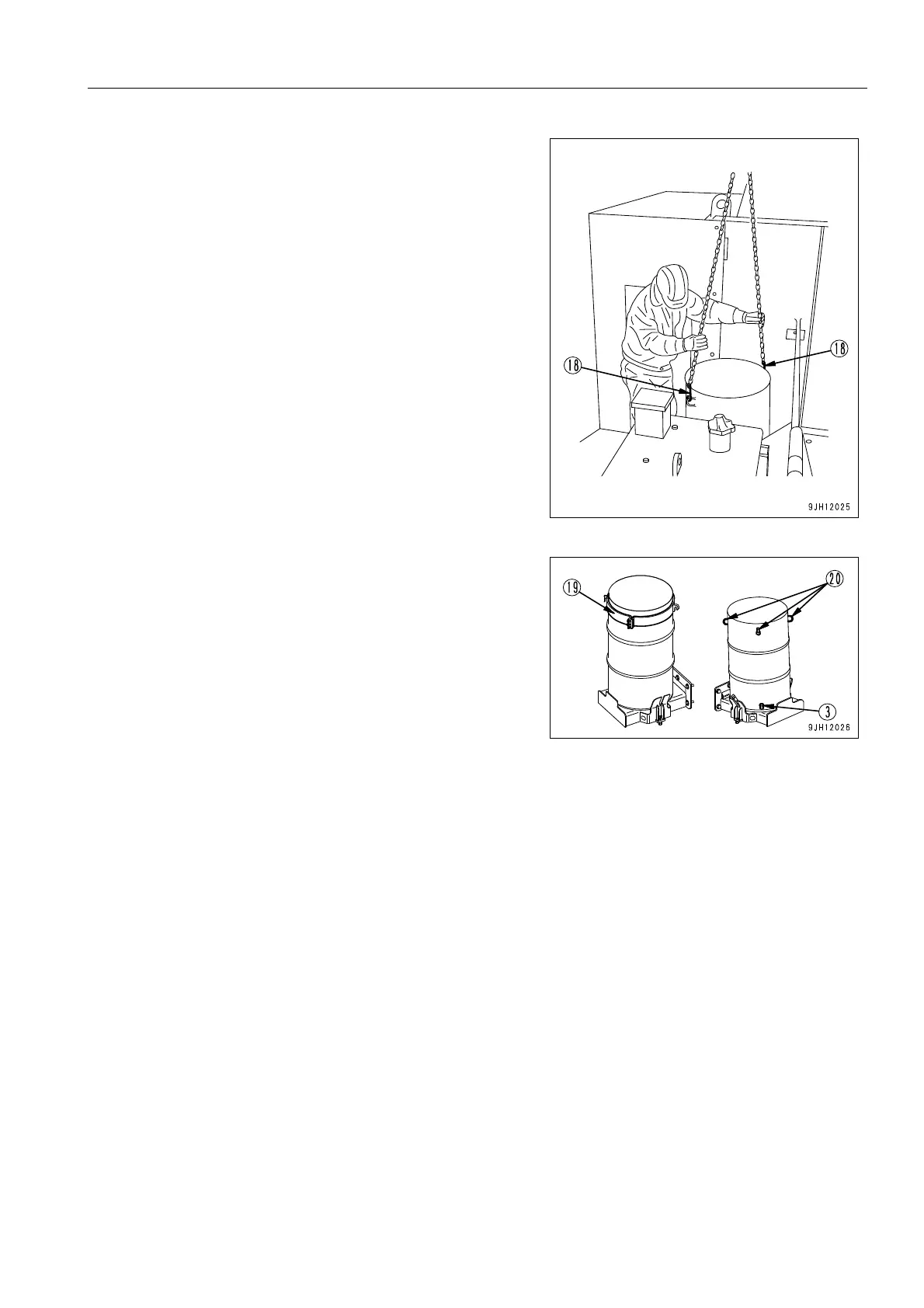

7. Using lifting hook (18), remove the grease can from the
machine.
8. Remove clamp (19) from the grease can and install it to the
new grease can that will replace the old grease can.
Be careful not to drop clamp (19) when lifting the grease
can up, and tighten it securely.
If grease can is equipped with refill port (3) as an optional spec-
ification, hook (20) is installed, so Step 9 above is unnecessary.
9. Insert follower plate (17) into the newly installed grease can.
To Next Page
