2. FRAME COVERS/EXHAUST MUFFLER
2-14
MXU 500
Remove the exhaust pipe and gasket.
INSTALLATION
Replace the gaskets with new ones.
Install the exhaust pipe and tighten the joint
nuts.
Torque:
Exhaust pipe mounting nut:
3.5 kgf-m (35 N-m, 14 lbf-ft)
Install the muffler and tighten the mounting
bolts
Torque:
Exhaust muffler mounting bolt:
3.5 kgf-m (35 N-m, 14 lbf-ft)
Install and tighten the band bolts.
Torque: 2.1 kgf-m (21 N-m, 15 lbf-ft)
Gaske
t

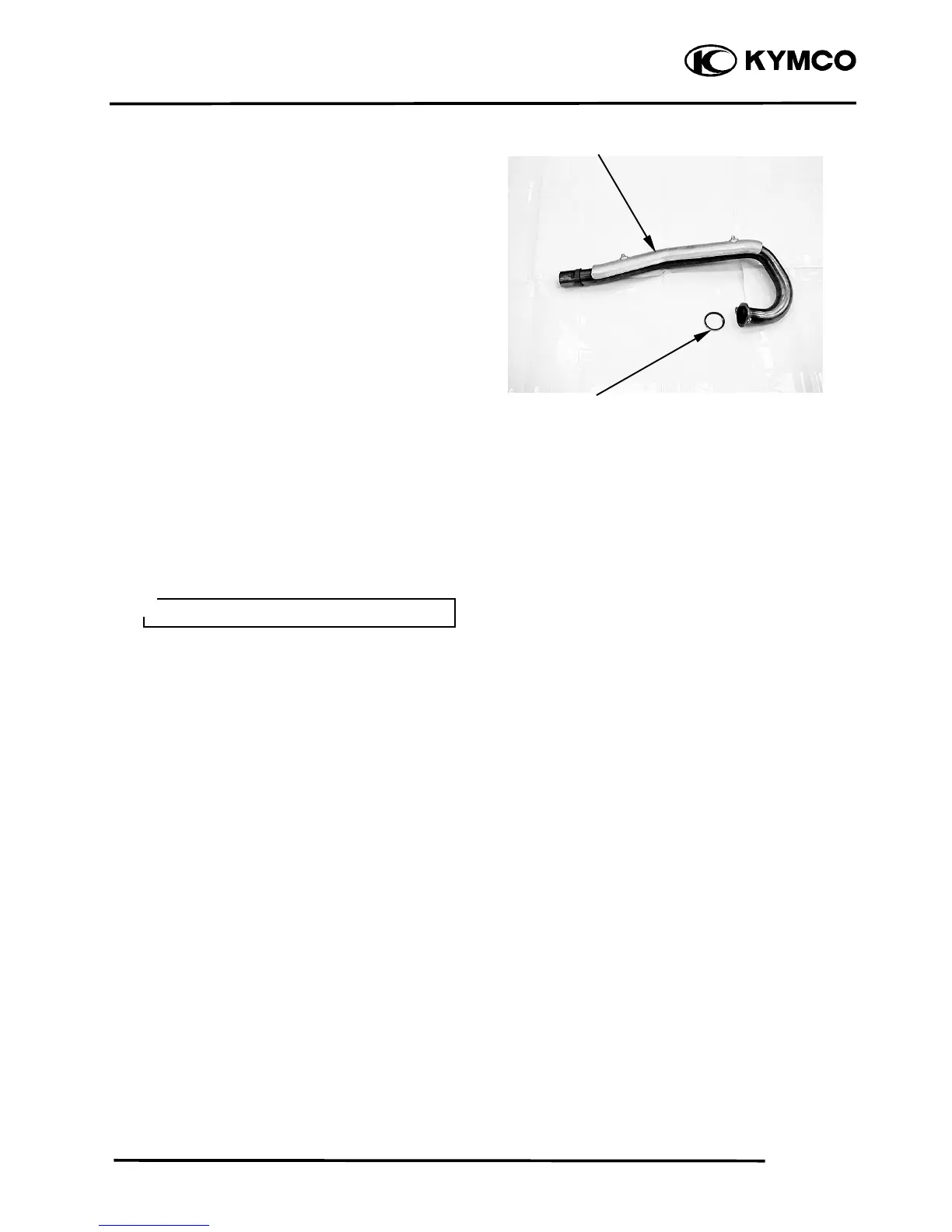

Exhaust Pipe
Be sure to install a new exhaust gasket.
＊
