3. INSPECTION/ADJUSTMENT
3-7
MXU 500

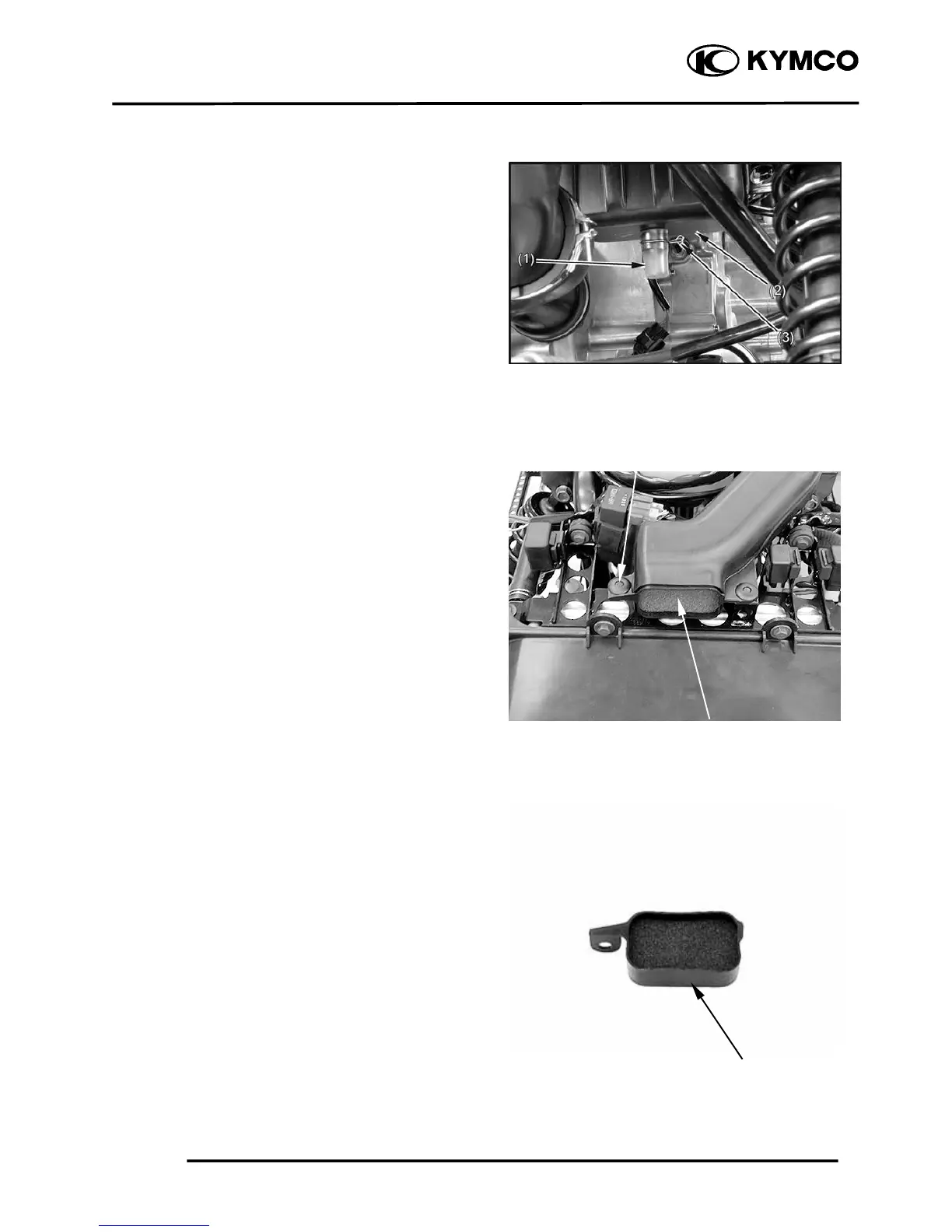

AIR CLEANER HOUSING DRAIN
1. Remove the drain tube (1) by removing
the clip (3).
2. Drain the deposits.
3. Reinstall the drain tube, securing it with
the clip.
AIR FILTER FOR DRIVE BELT
To clean the air filter:
Remove front center cover (refer to the
“FRAME COVERS” section in the chapter
2).
Remove a fastener from air inlet hose.
Remove air filter.
Tap the element lightly to remove most of
the dust and dirt.
Blow out the remaining dirt with
compressed air.
Installation is in the reverse order of
removal.
If necessary replace the air filter.
Fastene
