8. CYLINDER HEAD/VALVES
8-17
MXU 500
CYLINDER HEAD
REMOVAL/INSTALLATION

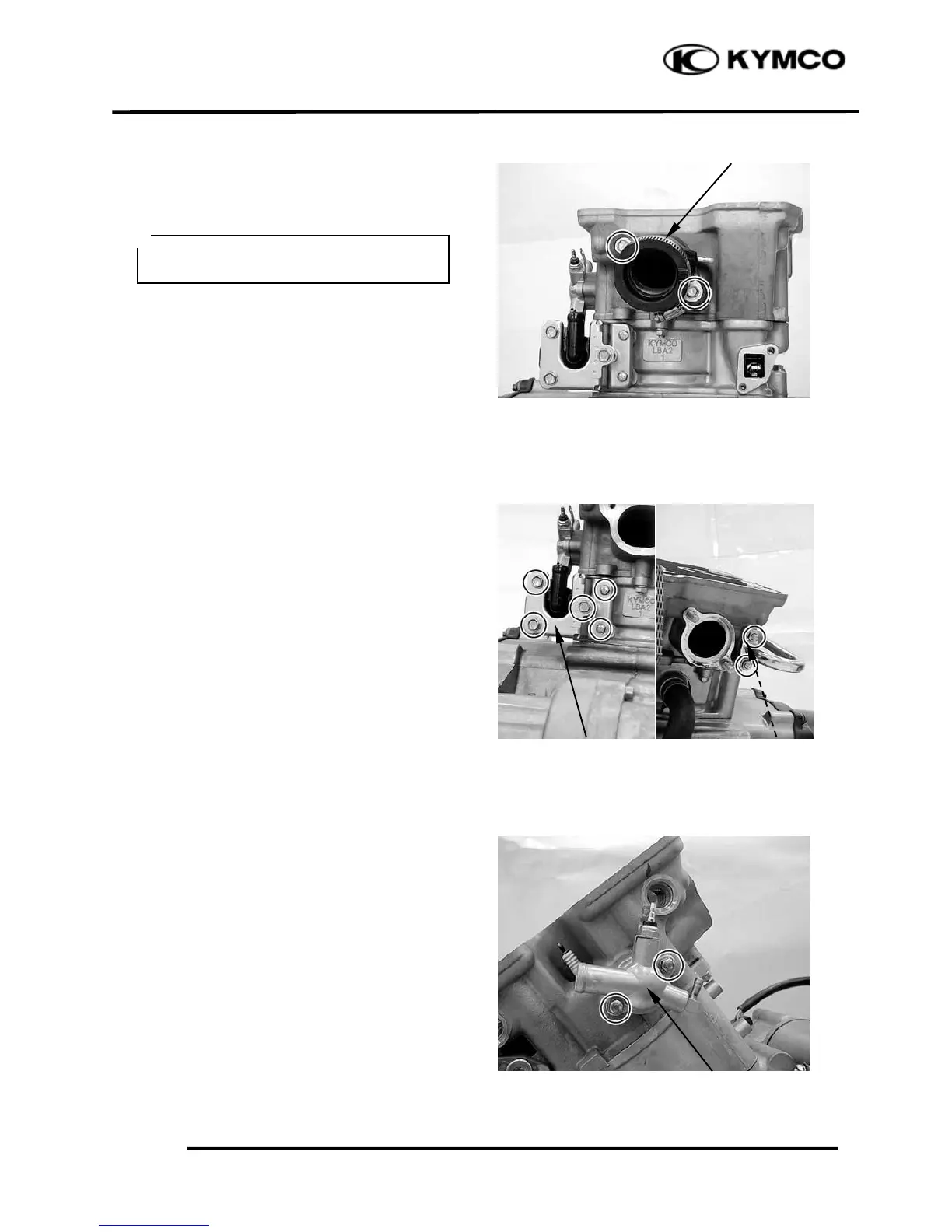

Remove the camshafts (refer to the
“CAMSHAFT REMOVAL/INSPECTION/
INSTALLATION” section in this chapter)
Remove the two bolts and intake pipe.
Remove the five bolts, then remove the pair
reed valve cover and holder.
Remove the two nuts, then remove the pair
reed valve and gasket.
Remove the two bolts, water joint, gasket and
water stop collar.
Pair Reed Valve Cover/Holder Gasket
Intake Pipe
Water Joint/Gasket/Water Stop Collar
Always replace the camshaft holder an
