13. DRIVE TRAIN
13-40
MXU 500
REAR DRIVE
DISASSEMBLY/INSPECTION/
ASSEMBLY
DISASSEMBLY
Remove the rear drive assembly (refer to
the āREAR DRIVE
REMOVAL/INSPECTION/
INSTALLATIONā section in this chapter).

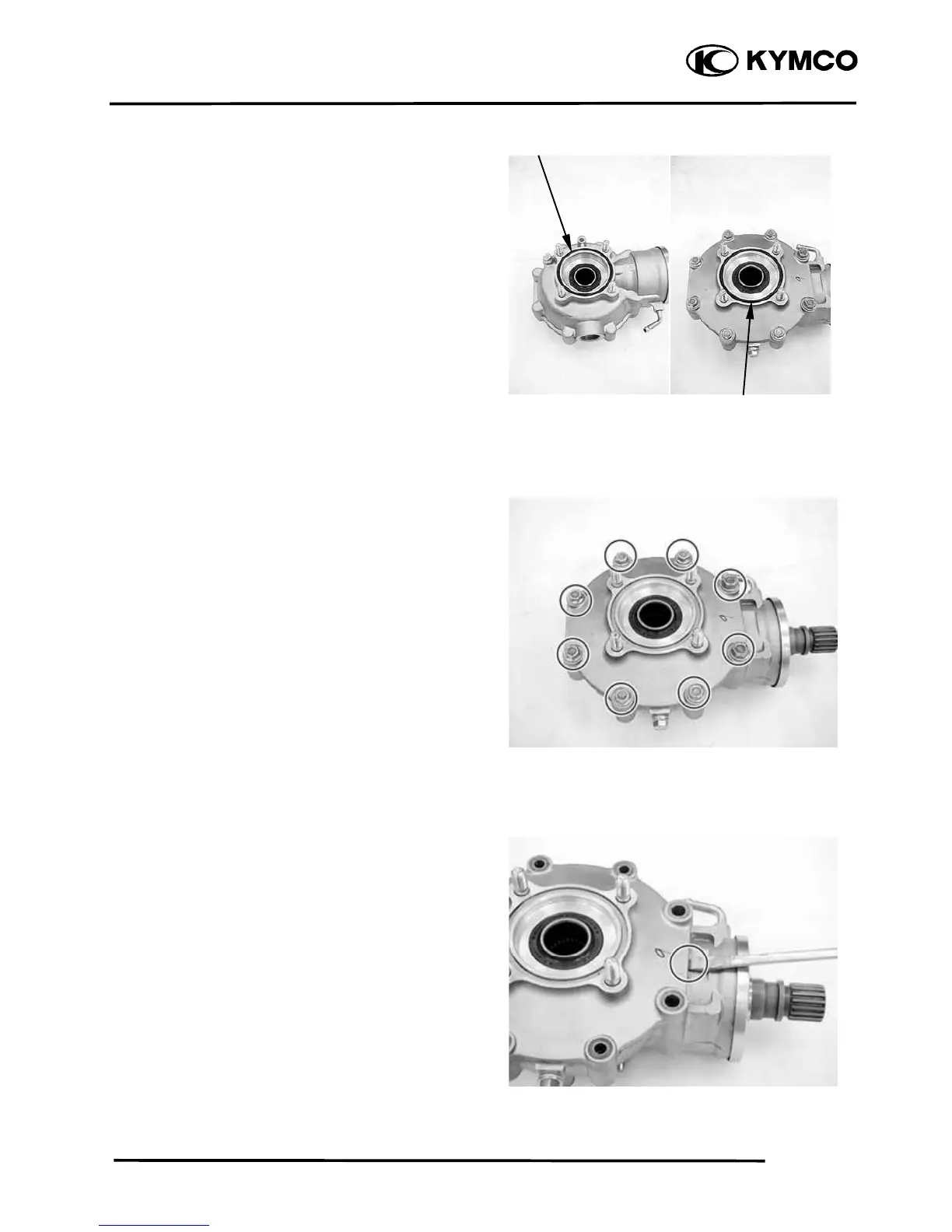

Remove the O-rings from the gear case and
cover grooves.
Remove the eight cover bolts in a crisscross
pattern in several steps.
Pry the cover at the prying point using a
screwdriver.
O-ring (Cover)
O-ring (Case)
To Next Page
