14. FRONT WHEEL/FRONT SUSPENSION
STEERING SYSTEM
14-13
MXU 500

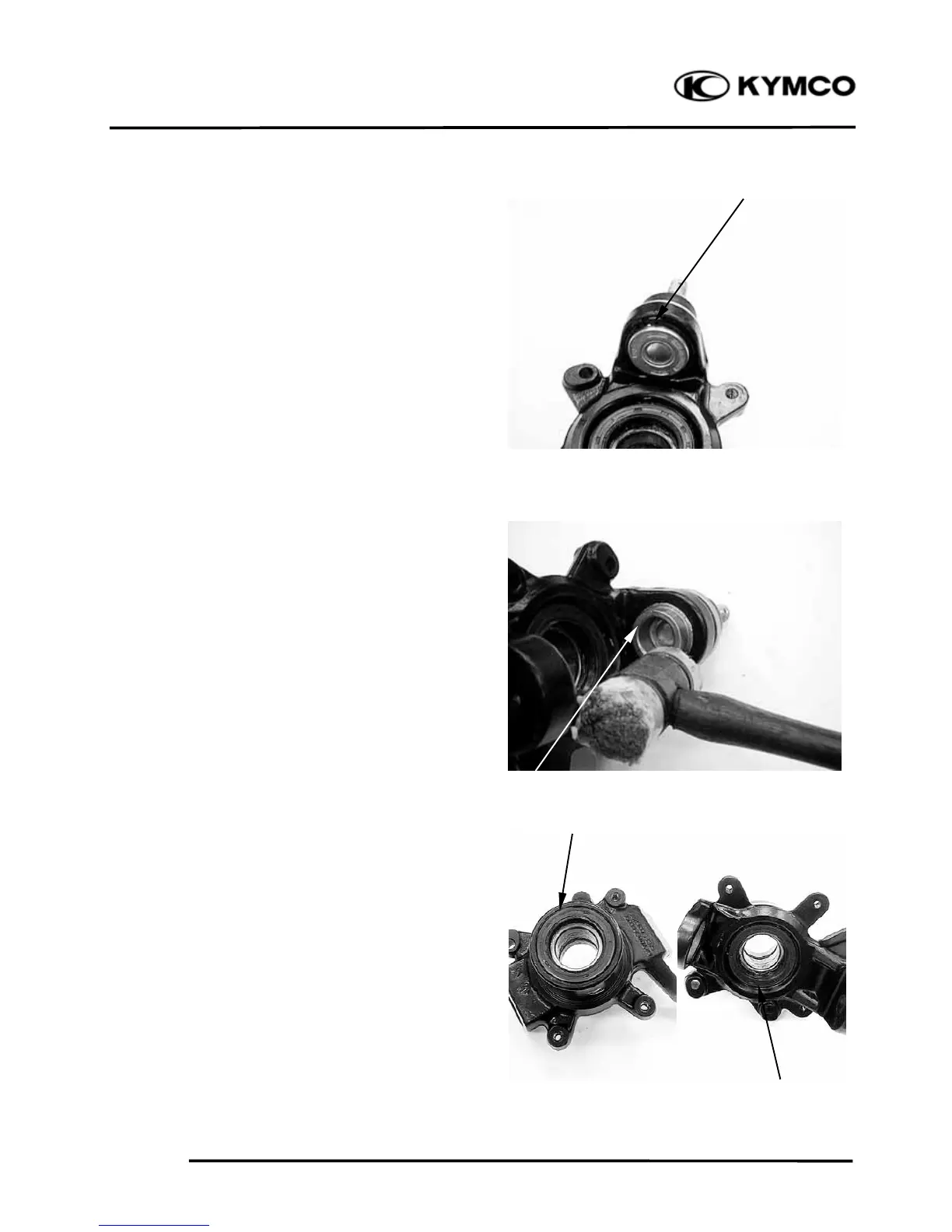

STEERING KNUCKLE
DISASSEMBLY/ASSEMBLY
DISASSEMBLY
Remove the steering knuckle (refer to the
“STEERING KNUCKLE
REMOVAL/INSPECTION/
INSTALLATION” section in this chapter)
Remove the knuckle end by using the
appropriate collar.
Remove the dust seals.
Dust Seal
Dust Seal
Snap Ring
Colla
r
