3. INSPECTION/ADJUSTMENT
3-19
MXU 500

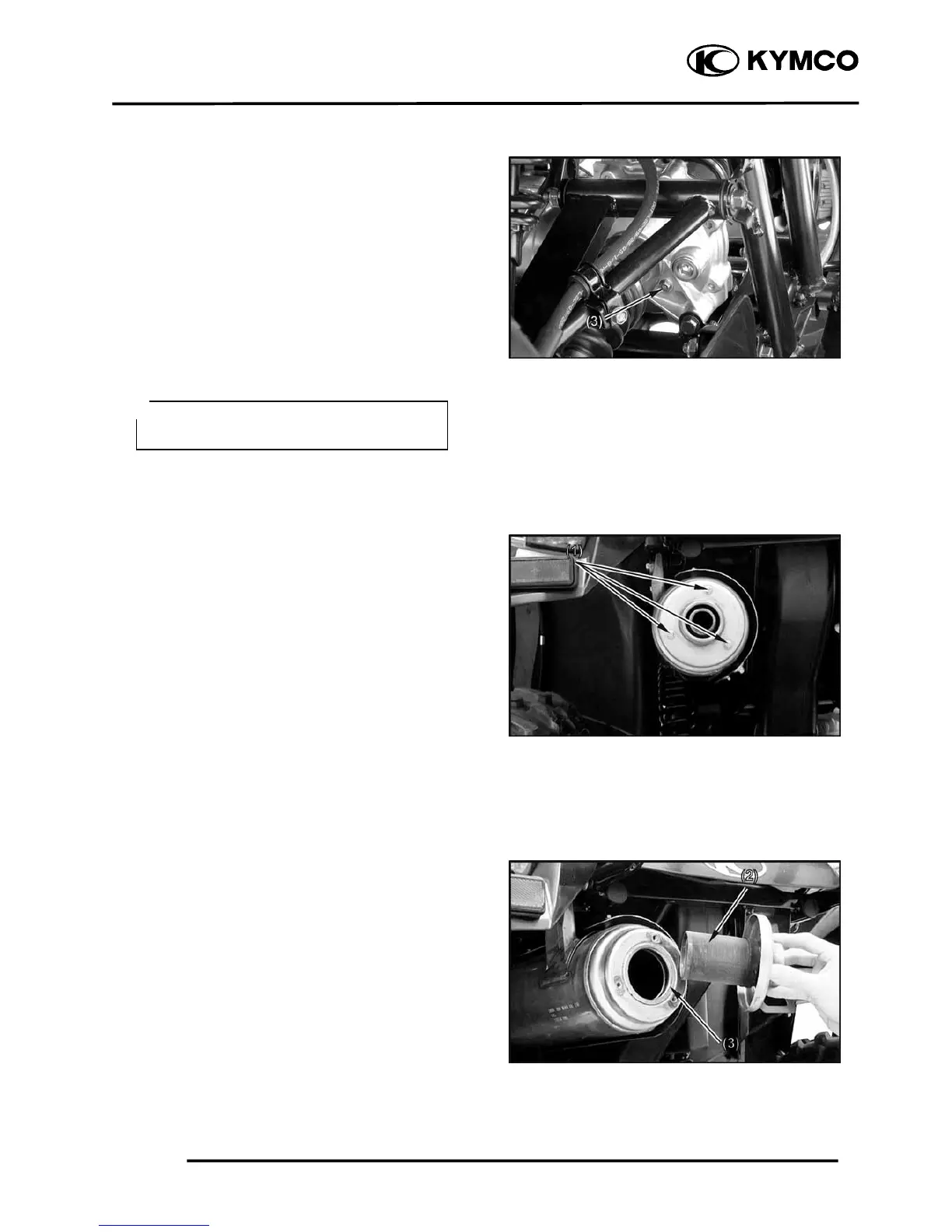

6. Remove the oil level check bolt (3).
Make sure the oil level reaches the oil
level check hole.
7. Install and tighten the oil filler bolt and
oil level check bolt to the specified
torque.
Torque:
Oil filler cap:
3.5 kgf-m (35 N-m, 25.5 lbf-ft)
Oil level check bolt:
1 kgf-m (10 N-m, 7.2 lbf-ft)
SPARK ARRESTER
Be sure the exhaust pipe and muffler are
cool before cleaning the spark arrester.
1. Remove the three bolts (1).
2. Remove the spark arrester (2) and the
gasket (3) from the muffler.
Be sure no foreign material enters the
crankcase.
＊
