10. DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
10-9
MXU 500

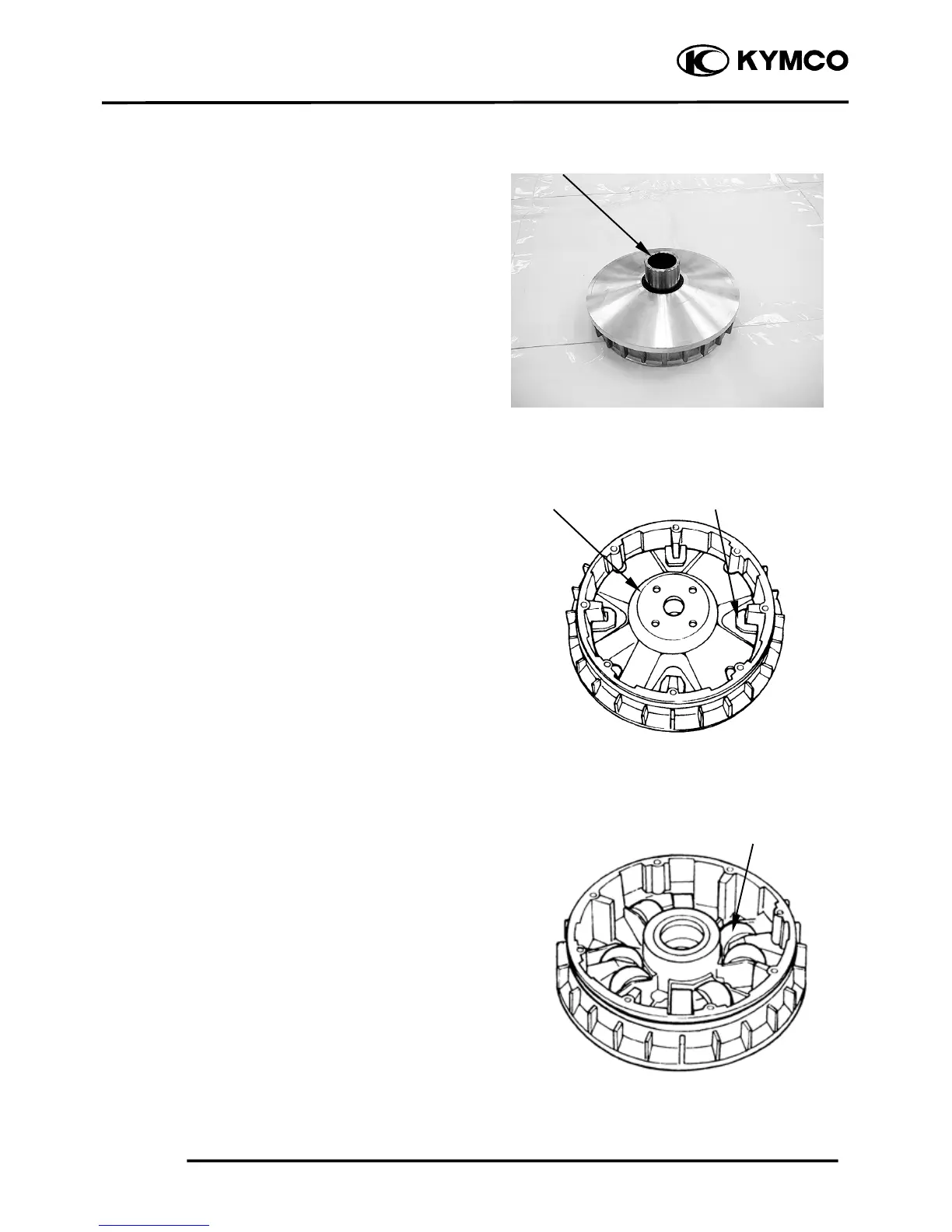

DRIVE PULLEY
DISASSEMBLY/INSPECTION/
ASSEMBLY
DISASSEMBLY
Remove the drive pulley (refer to āDRIVE
PULLEY AND DRIVEN PULLEY
REMOVAL/INSTALLATIONā section)
Remove the drive face boss.
Remove the ramp plate and four slide
pieces.
Remove the eight weight rollers.
Drive Face Boss
Ramp Plate Slide Pieces
Weight Rollers
To Next Page
