19. STARTER SYSTEM
19-6
MXU 500

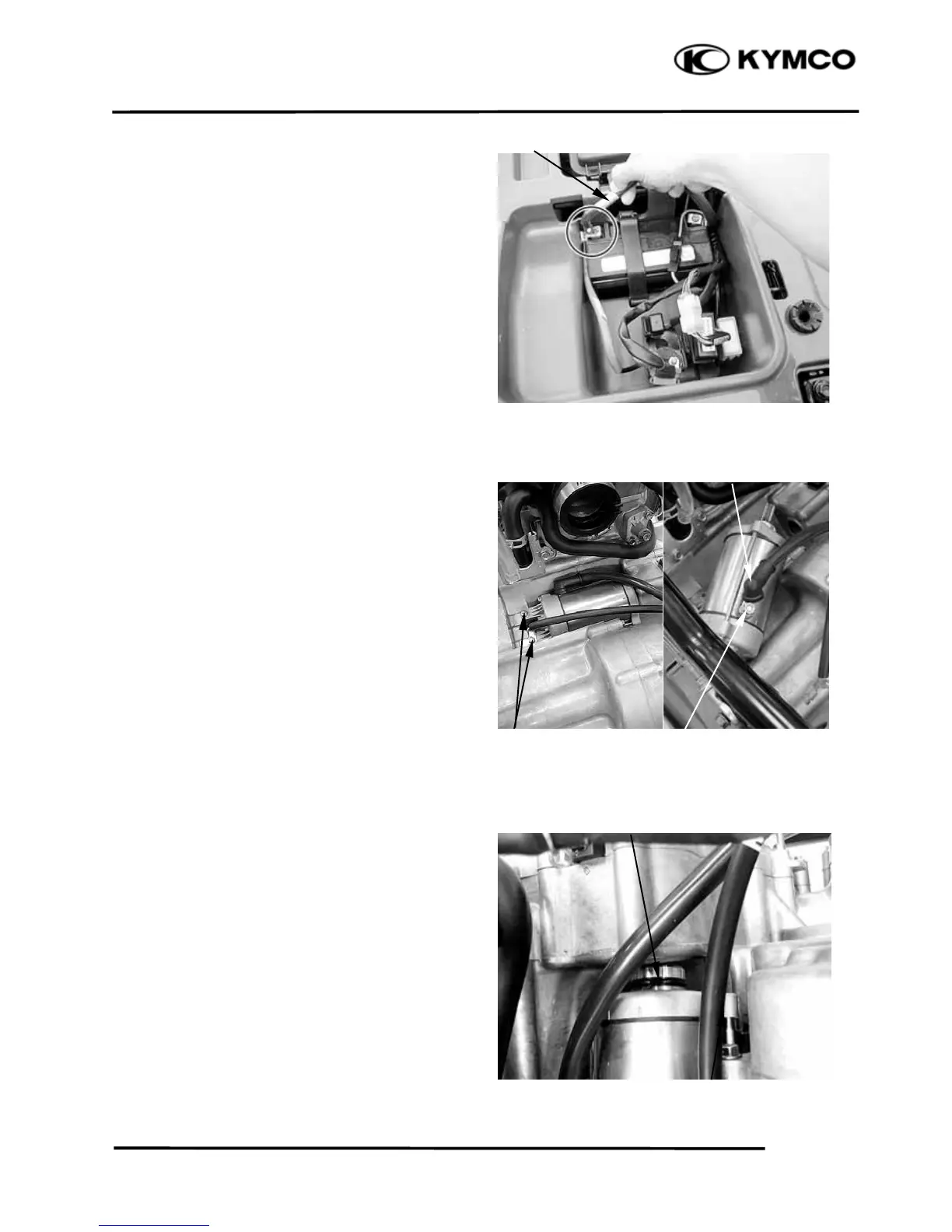

STARTER MOTOR
INSPECTION
Disconnect the starter motor cable from the
starter MAG.
Turn the ignition switch to “ON”.
Connect the starter motor cable directly to the
battery positive terminal.
If the starter motor does not turn, the starter
motor is faulty.
REMOVAL
Remove the carburetor (refer to the
“CARBURETOR REMOVAL/CHOKE
INSPECTION/INSTALLATION” section
in the chapter 5).
Turn the ignition switch turned to “OFF”
Remove the two mounting bolts and starter
motor.
Release the rubber cap and remove the
terminal nut to disconnect the starter motor
cable from the starter motor.
INSTALLATION
Coat a new O-ring with engine oil and install
it into the starter motor groove.
Connect the starter motor cable to motor
terminal with the terminal nut and tighten it.
Install the starter motor into the crankcase.
Install the two mounting bolts and tighten them
securely.
Bolts Nu
