COUNTERSHAFT
DISASSEMBLY/ASSEMBLY/
INSPECTION
DISASSEMBLY
Remove the countershaft assembly (refer to
the “TRANSMISSION
REMOVAL/INSPECTION/
INSTALLATION” section in this chapter).
Remove the washer and high drive gear.
Remove the high/low gear clutch dog
Remove the clip, then remove the washer and
low drive gear.
Remove the clip, then remove the stopper
wheel.
Remove the clip, then remove reverse gear
clutch dog.
Remove the clip, then remove the washer and
reverse drive gear.

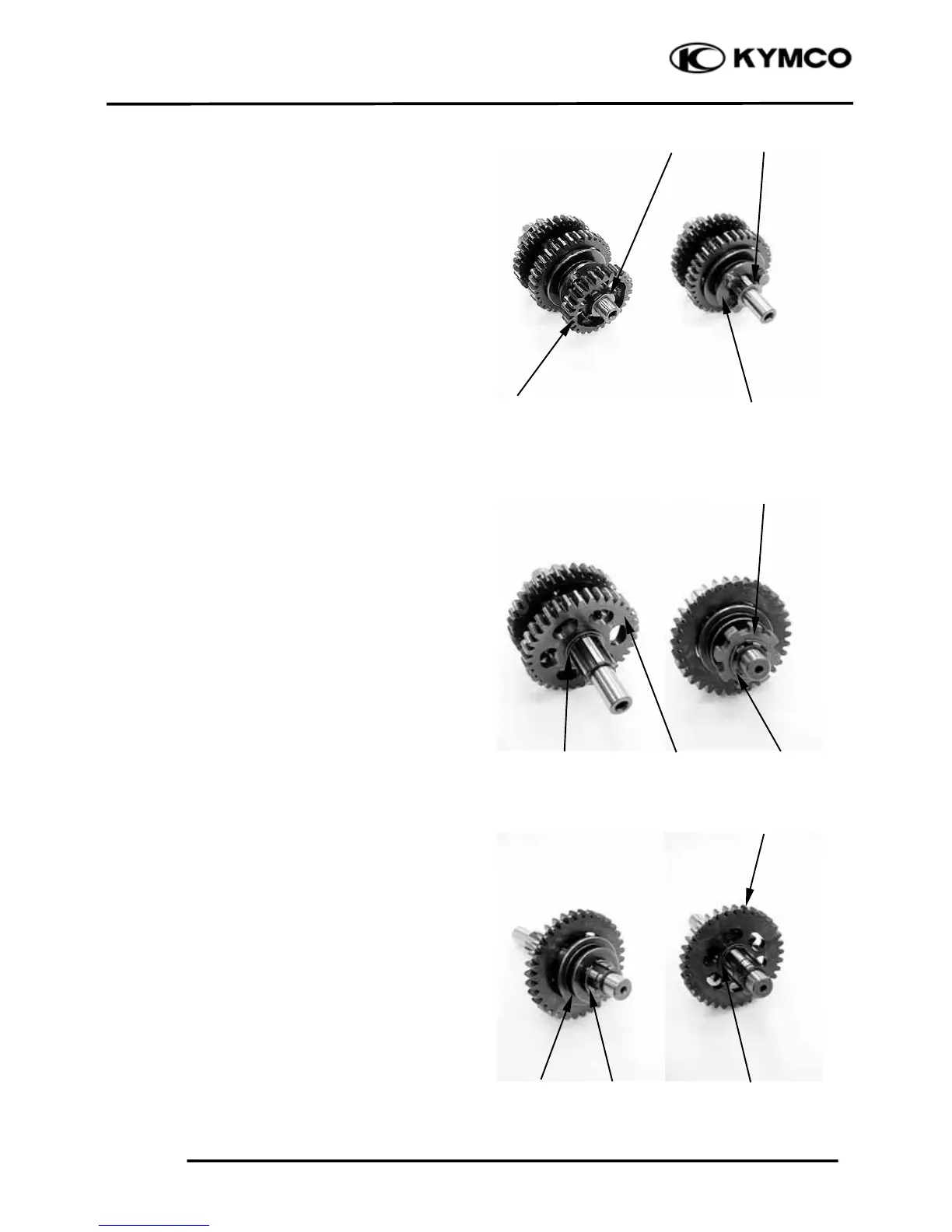

High Drive Gear High/Low Gear Clutch
Washer Washe
r
Clip
/
Washer Low Drive Gear Clip
Stopper Wheel
Clutch Dog Clip Clip/Washe
r
Reverse Drive Gea
r
