6. COOLING SYSTEM
6-16
MXU 500

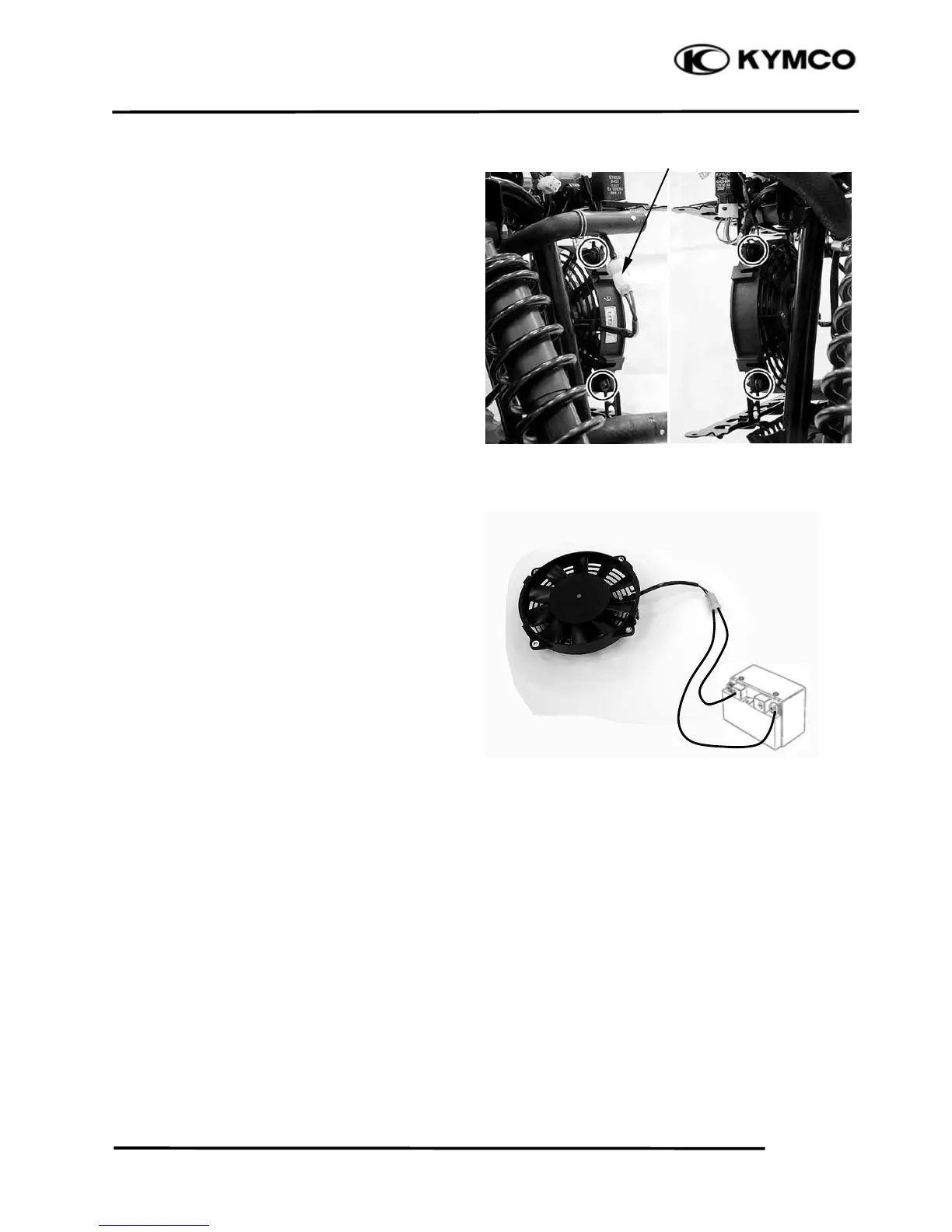

FAN MOTOR
REMOVAL
Remove the front fender (refer to the
“FRAME COVERS” section in the
chapter 2)
Disconnect the fan motor connector.
Remove the four mounting bolts and then
remove the fan motor
INSPECTION
Check the fan motor to operate using an
available battery.
INSTALLATION
Installation is in the reveres order of
removal.
Fan Motor Connecto
