16. BRAKE SYSTEM
16-36
MXU 500
REAR BRAKE/PARKING
BRAKE CALIPER
REMOVAL/INSTALLATION (ON
ROAD)
Drain the brake fluid from the hydraulic
brake system (refer to the
“COMBINATION BRAKE FLUID
CHANGE/AIR BLEED (ON ROAD)”
section in this chapter).

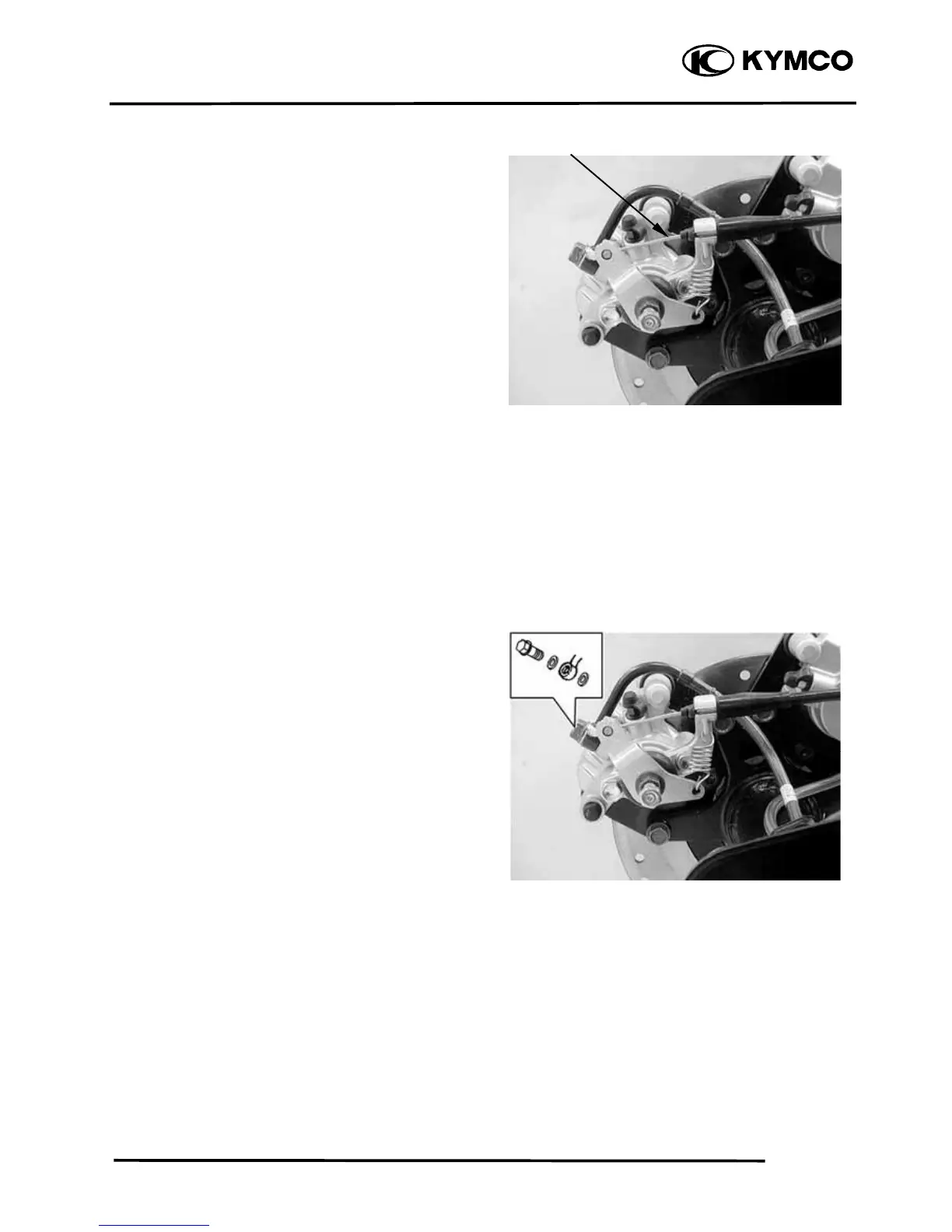

Disconnect the parking brake cable from the
caliper.
Remove the brake fluid hose bolt and two
washers from the caliper.
Remove the brake pads (refer to the
“BRAKE PADS REPLACEMENT”
section in this chapter).
Remove the brake caliper.
INSTALLATION
Install the brake fluid hose with the
attaching bolt and two new sealing washers,
then tighten the bolt to the specified torque.
Torque: 3.5 kgf-m (35 Nm, 25 lbf-ft)
Connect the parking brake cable.
Fill the specified brake fluid and bleed air
from the brake system (refer to the
“COMBINATION BRAKE FLUID
CHANGE/AIR BLEED (ON ROAD)”
section in this chapter).
Adjust the parking brake lever (refer to the
“PARKING BRAKE ADJUSTMENT”
section in the chapter 3).
Parking Brake Cable
