15. REAR WHEEL/AXLE/SHOCK
ABSORBER/SWING ARM
15-8
MXU 500

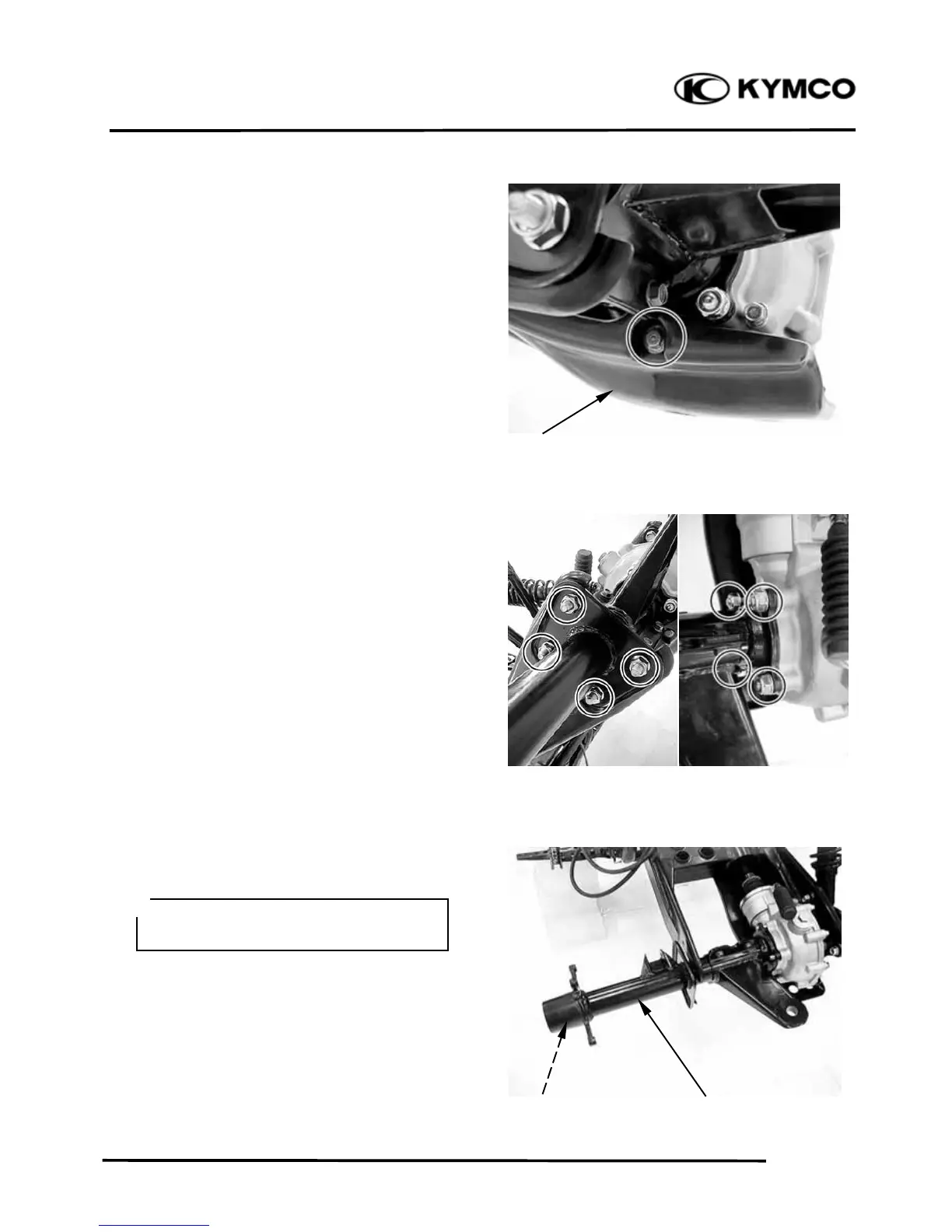

REAR AXLE HOUSING
REMOVAL/INSPECTION/
INSTALLATION
REMOVAL
Remove the rear axle (refer to the “REAR
AXLE REMOVAL/INSPECTION/
INSTALLATION” section in this chapter).
Remove the bolt from skid plate under the
left axle housing.
Remove the four nuts/bolts from the left
housing (attaching the rear swing arm).
Remove the four nuts from the left housing
(attaching the rear drive case).
Remove the left rear axle housing from the
rear drive case.
Skid Plate
Collar Rear Axle Housing
Do not lose the axle collar in the left rear
axle housing.
＊
