16. BRAKE SYSTEM
16-28
MXU 500

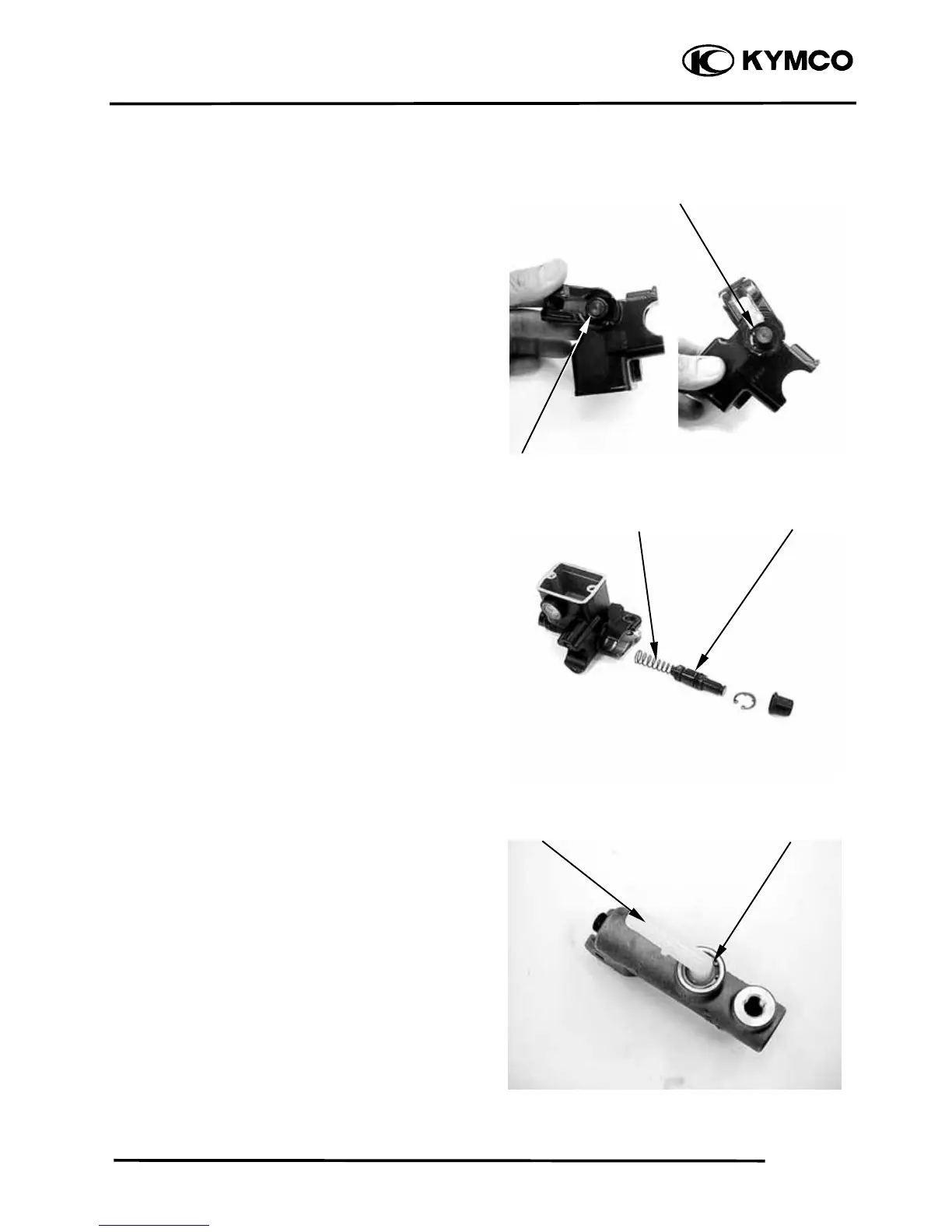

BRAKE MASTER CYLINDER
DISASSEMBLY/INSPECTION/
ASSEMBLY
DISASSEMBLY
Front/rear brake master cylinder
Remove the brake master cylinder (refer to
the “BRAKE MASTER CYLINDERS
REMOVAL/INSTALLATION” section in
this chapter).
Remove the piston dust boot and snap ring
from the brake master cylinder.
Remove the spring and piston together.
Brake pedal master cylinder
Remove the brake master cylinder (refer to
the “BRAKE MASTER CYLINDERS
REMOVAL/INSTALLATION” section in
this chapter).
Remove the snap ring then remove the fluid
duct and O-ring.
Dust Boo
t
Snap Ring
Duct Snap Ring
Spring Piston
