KYMCO MXU 500 User Manual

10. DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
10-13
MXU 500

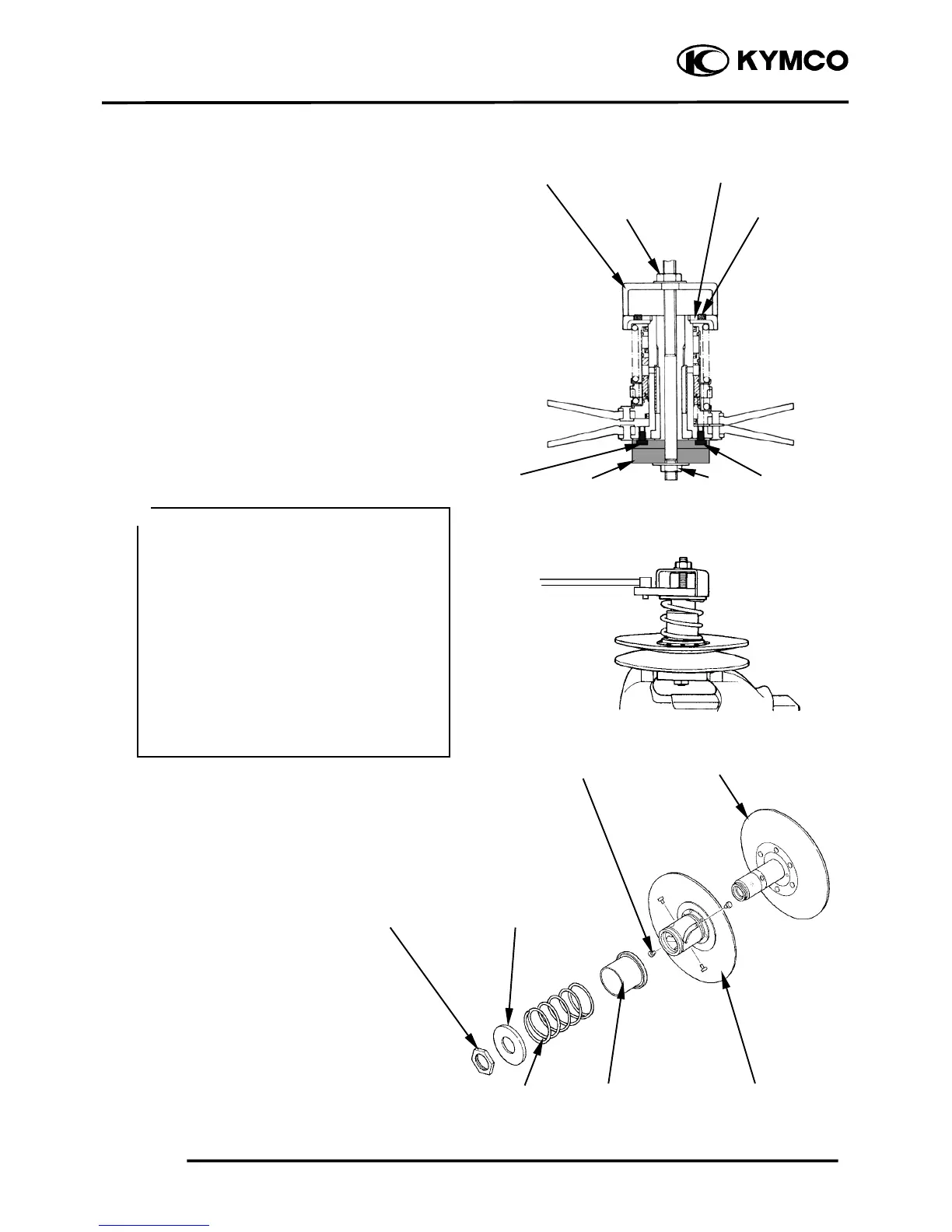

DRIVEN PULLEY
DISASSEMBLY/INSPECTION/
ASSEMBLY
DISASSEMBLY
Remove the driven pulley (refer to the
“DRIVE PULLEY AND DRIVEN
PULLEY
REMOVAL/INSTALLATION” section in
this chapter).
Use the special tool to remove the nut.
Special tool:
Driven pulley spring compressor
A120E00059
Remove the spring seat on the spring and
spring.
Remove the spring collar on the movable
driven face.
Remove the four guide pins/rollers, then
remove the movable driven face.
Ɣ Install the block and bolts, then tighten
the bolts.
Ɣ Attach the block, nut wrench and
spring compressor to the driven pulley
assembly.
Ɣ Place the block in a vise and secure it.
Ɣ Tighten the spring compressor nut and
compress the spring.
Ɣ Loosen the nut with the nut wrench.
Ɣ Remove the nut.
Ɣ Remove the spring compressor and nut
wrench.
＊
Bolt Block Nut Bolt
Spring Compressor Nu
t
Spring Spring Collar Movable Driven Face
Guide Pins
/
rollers Driven Face
Compressor Nut Nut Wrench
N
ut Spring Sea
t
