5. FUEL SYSTEM
5-7
MXU 500
CARBURETOR REMOVAL/CHOKE
INSPECTION/INSTALLATION

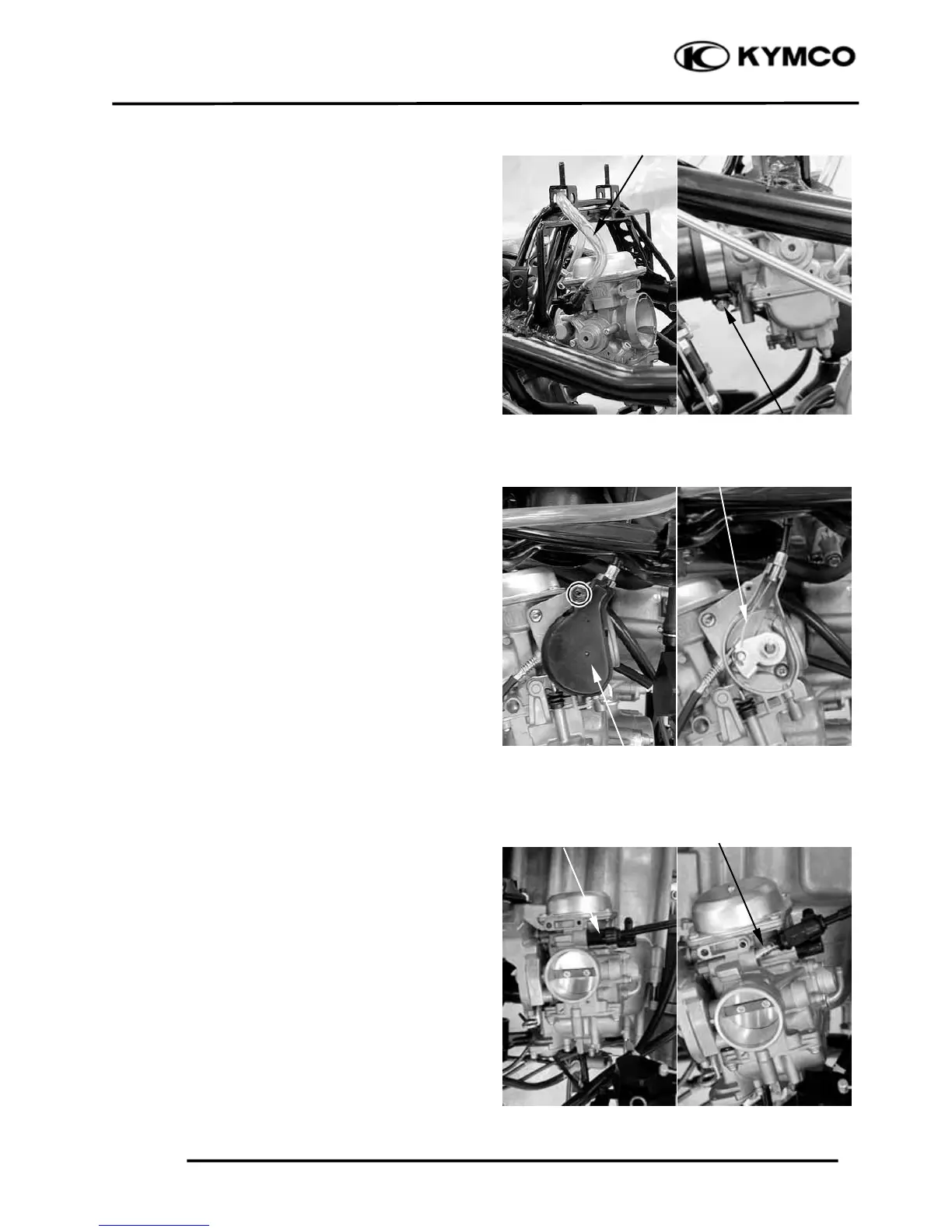

REMOVAL
Remove the fuel tank (refer to the “FUEL
TANK” section in this chapter).
Remove the air cleaner housing (refer to the
“AIR CLEANER HOUSING” section in
this chapter).
Disconnect the over flow hose.
Loosen the carburetor clamp screw, then
remove carburetor from intake pipe.
Remove a screw, then remove the throttle
valve cover.
Disconnect the throttle cable from
carburetor.
Remove the choke cable/choke plunger from
carburetor, then remove the carburetor.
Over Flow Hose
Carburetor Clamp Screw
Throttle Valve Cove
