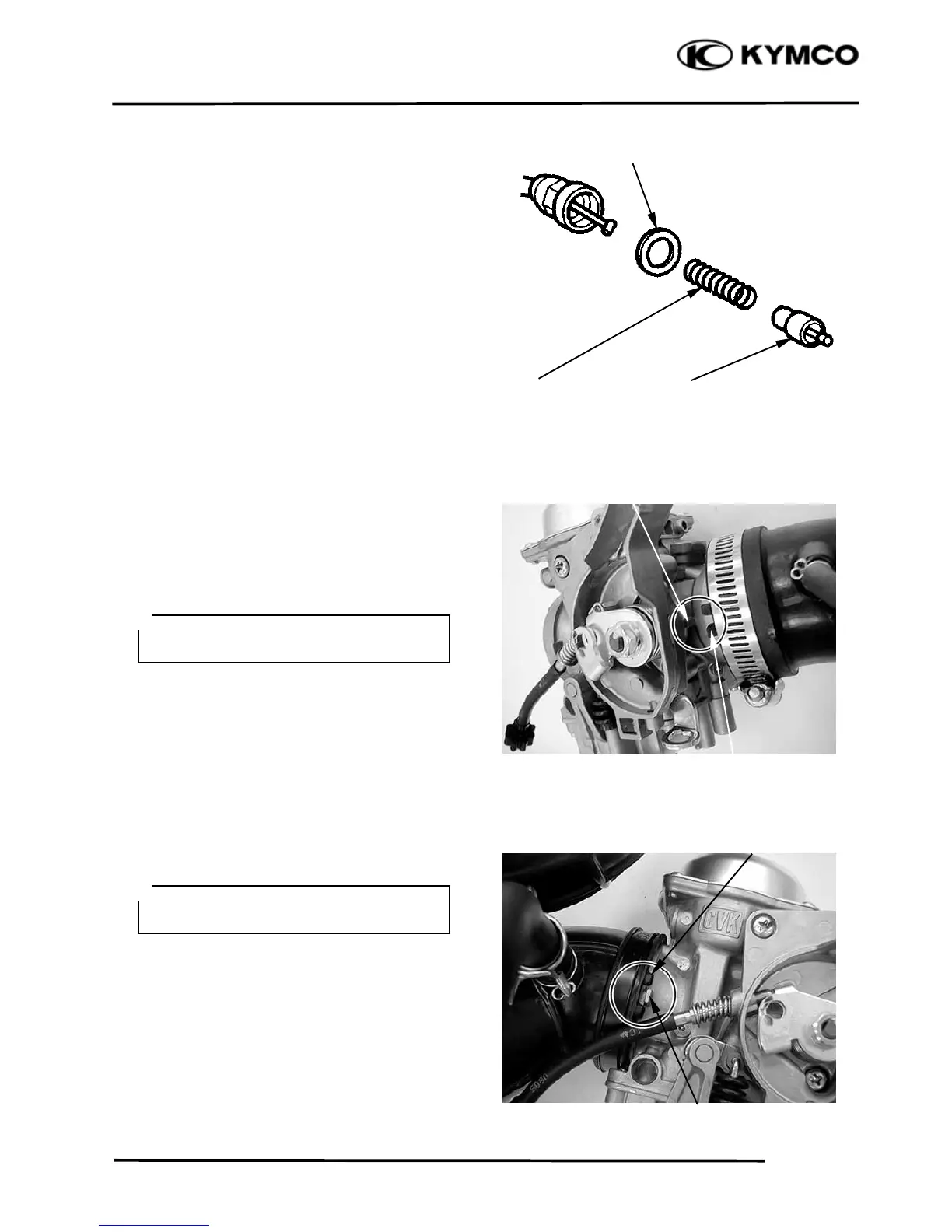

CHOKE INSPECTION
Inspection the choke plunger, spring and O-
ring for bends, wear or damage.
INSTALLATION
Installation is in the reverse order of
removal.
Cutou
t
Lug
Lug
Cutou
t
Make sure the lug on the carburetor into
the cutout on the intake pipe.
＊
Make sure the lug on the carburetor into
the cutout on the air cleaner hose.
＊
O-ring
Spring Choke Plunge
r
