KYMCO MXU 500 - Rear Propeller Shaft Disassembly;Inspection; Assembly

13. DRIVE TRAIN
13-61
MXU 500
REAR PROPELLER SHAFT
DISASSEMBLY/INSPECTION/
ASSEMBLY
DISASSEMBLY
Remove the front propeller shaft (refer to
the “REAR DRIVE
REMOVAL/INSPECTION/
INSTALLATION” section in this chapter).

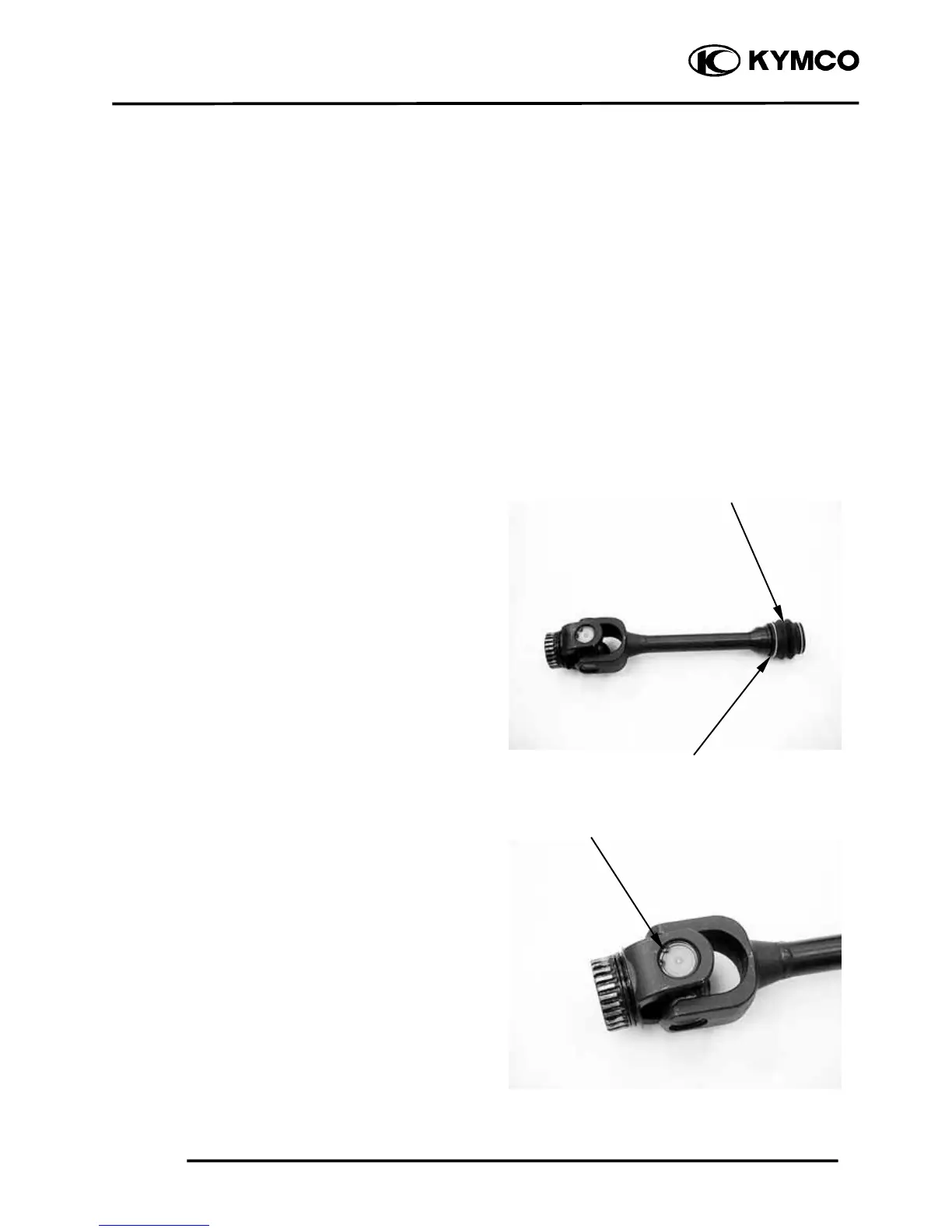

Slide the spring ring back, then remove the
boot.
Remove the snap rings from the universal
joint.
Spring
Boo
t
Snap Ring
