14. FRONT WHEEL/FRONT SUSPENSION/
STEERING SYSTEM
14-8
MXU 500
STEERING KNUCKLE
REMOVAL/INSPECTION/
INSTALLATION
REMOVAL
Elevate the front wheels by placing a
suitable stand under the frame.
Remove the front wheel hub (refer to the
“FRONT WHEEL HUB
REMOVAL/INSPECTION/
INSTALLATION” section in this chapter)

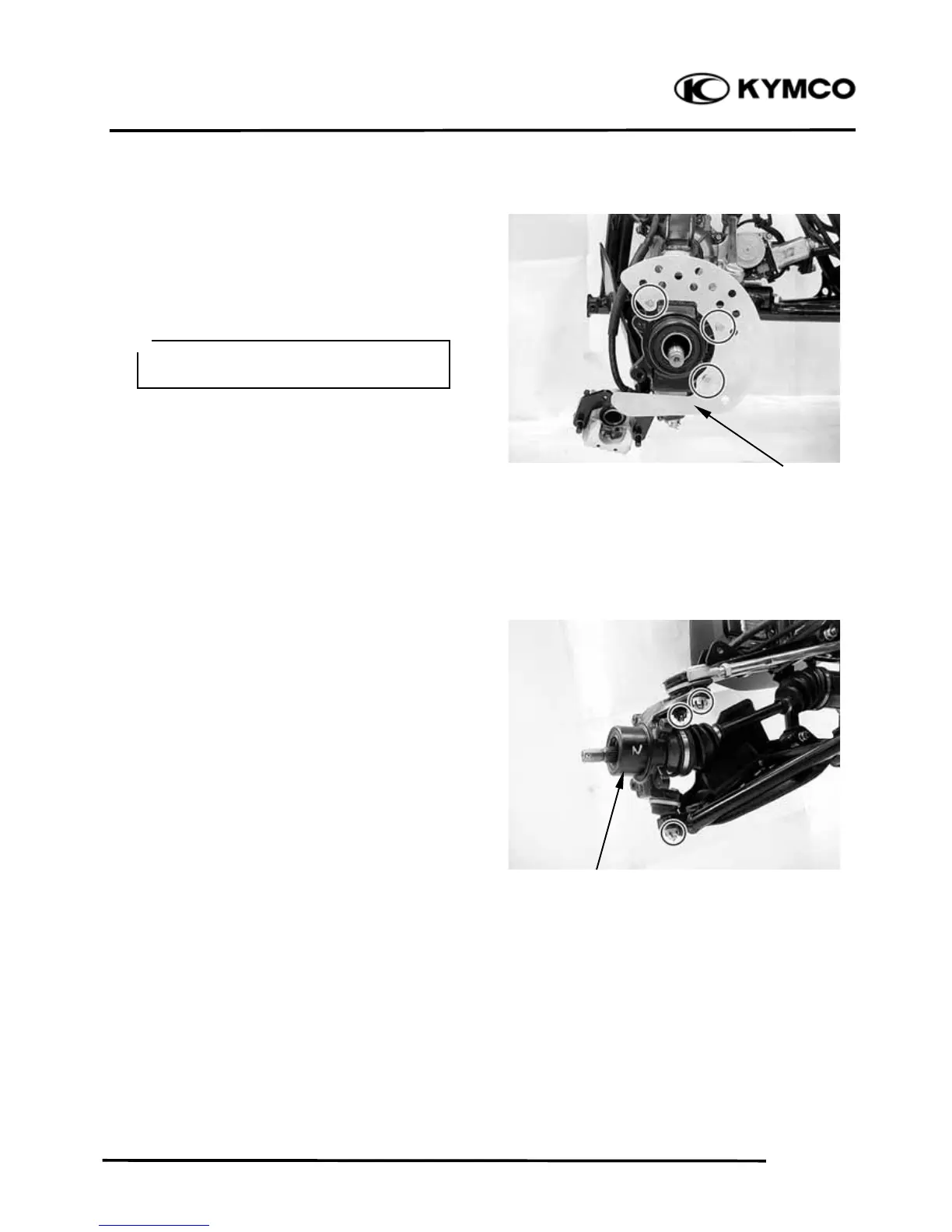

Remove the three bolts and brake disc
protection plate.
Remove the cotter pin and nut from the tie-
rod end.
Remove the cotter pin and nut from the
upper arm end.
Remove the cotter pin and nut from the
steering knuckle end.
Support the machine securely so there is
no dan
