9. CYLINDER/PISTON
9-3
MXU 500
CYLINDER AND PISTON
REMOVAL/INSPECTION/
INSTALLATION

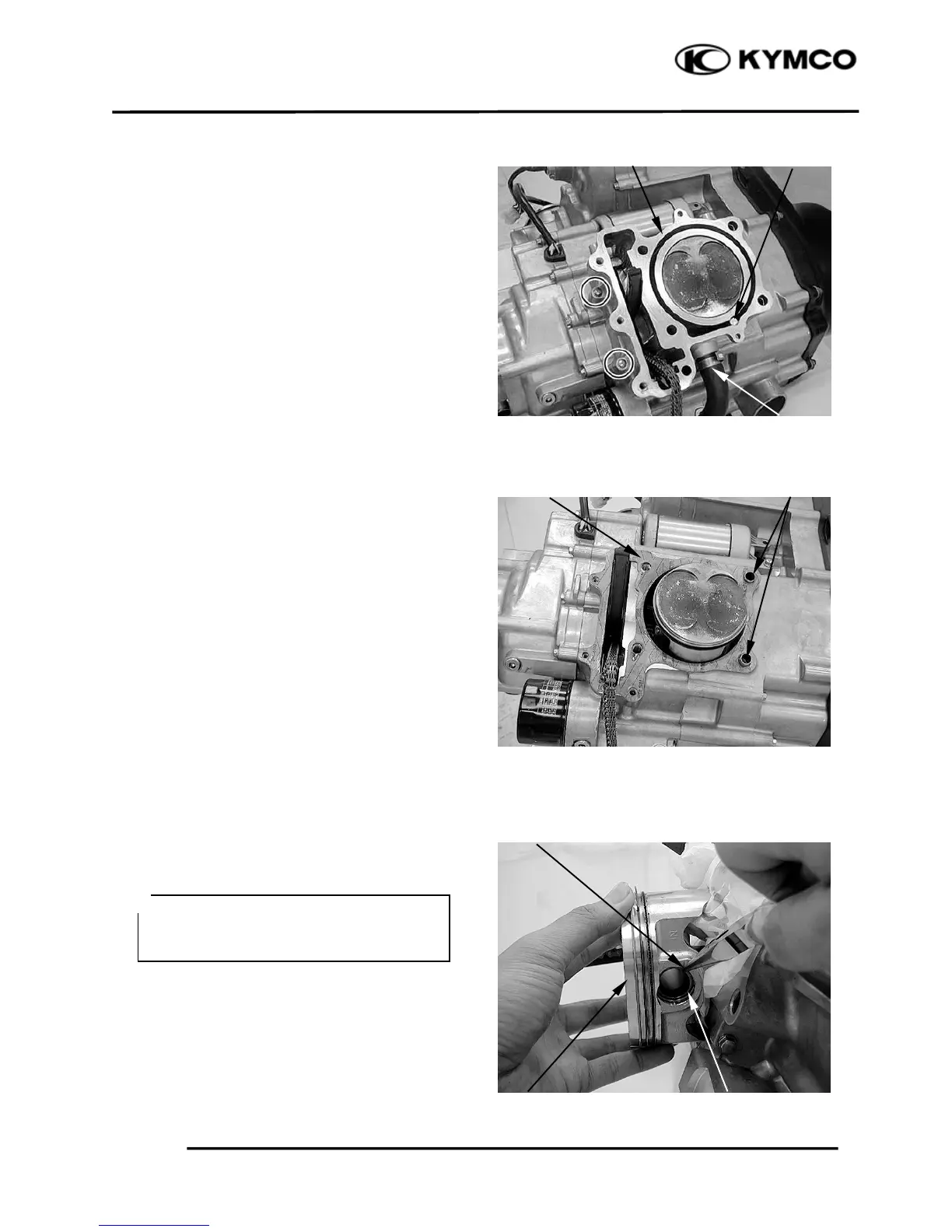

REMOVAL
Remove the cylinder head (refer to
“CYLINDER HEAD
REMOVAL/INSTALLATION” section in
the chapter 8).
Take the block pin out.
Remove the water hose from the cylinder.
Remove the two cylinder bolts/washers.
Remove the dowel pins
Remove the cylinder and gasket.
Remove the piston pin clip.
Press the piston pin out of the piston and
remove the piston.
Gasket Dowel Pins
Water Hose
Cylinder Block Pin
Piston Piston Pin
Piston Pin Clip
Place a clean shop towel in the crankcase
to keep the piston pin clip from falling
into the crankcase.
＊
To Next Page
