13. DRIVE TRAIN
13-14
MXU 500
FRONT DRIVE
DISASSEMBLY/INSPECTION/
ASSEMBLY
Remove the front drive case assembly (refer
to the “FRONT DRIVE
REMOVAL/INSPECTION/
INSTALLATION” section in this chapter).

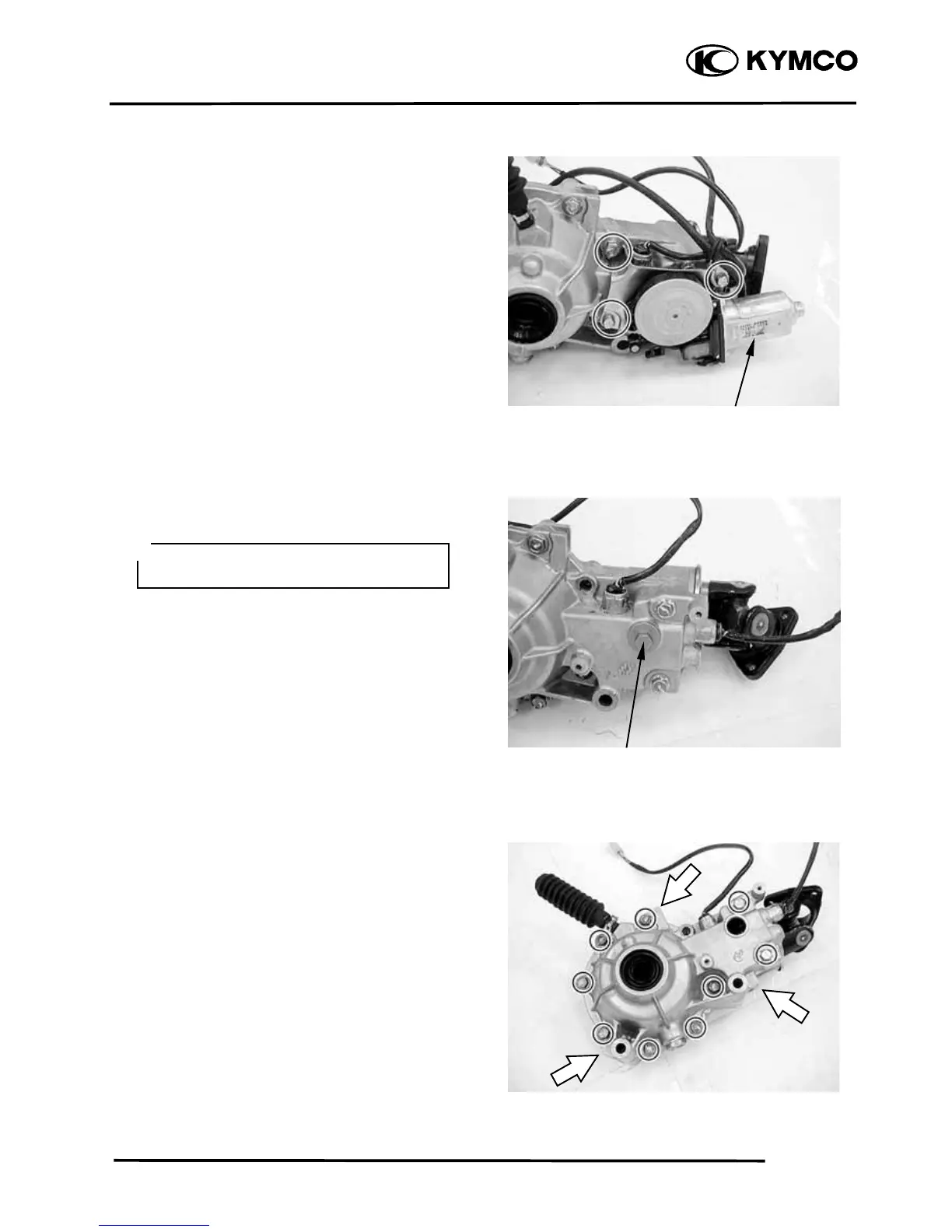

Remove the three bolts and then remove the
2WD/4WD shifting motor assembly.
Remove the 2WD/4WD shifting pinion and
O-ring by hand.
Remove the nine bolts from left gear case in
a crisscross pattern.
Pry the case at the arrows as shown by
using a screwdriver, then remove the right
gear case.
Shifting Motor Assembly
2WD/4WD shifting Pinion
The shifting pinion is not a bolt or screw,
do not remove it with a wrench.
＊
To Next Page
