KYMCO MXU 500 - Right Crankcase Cover Disassembly;Assembly

4. LUBRICATION SYSTEM
4-12
MXU 500
RIGHT CRANKCASE COVER
DISASSEMBLY/ASSEMBLY
DISASSEMBLY

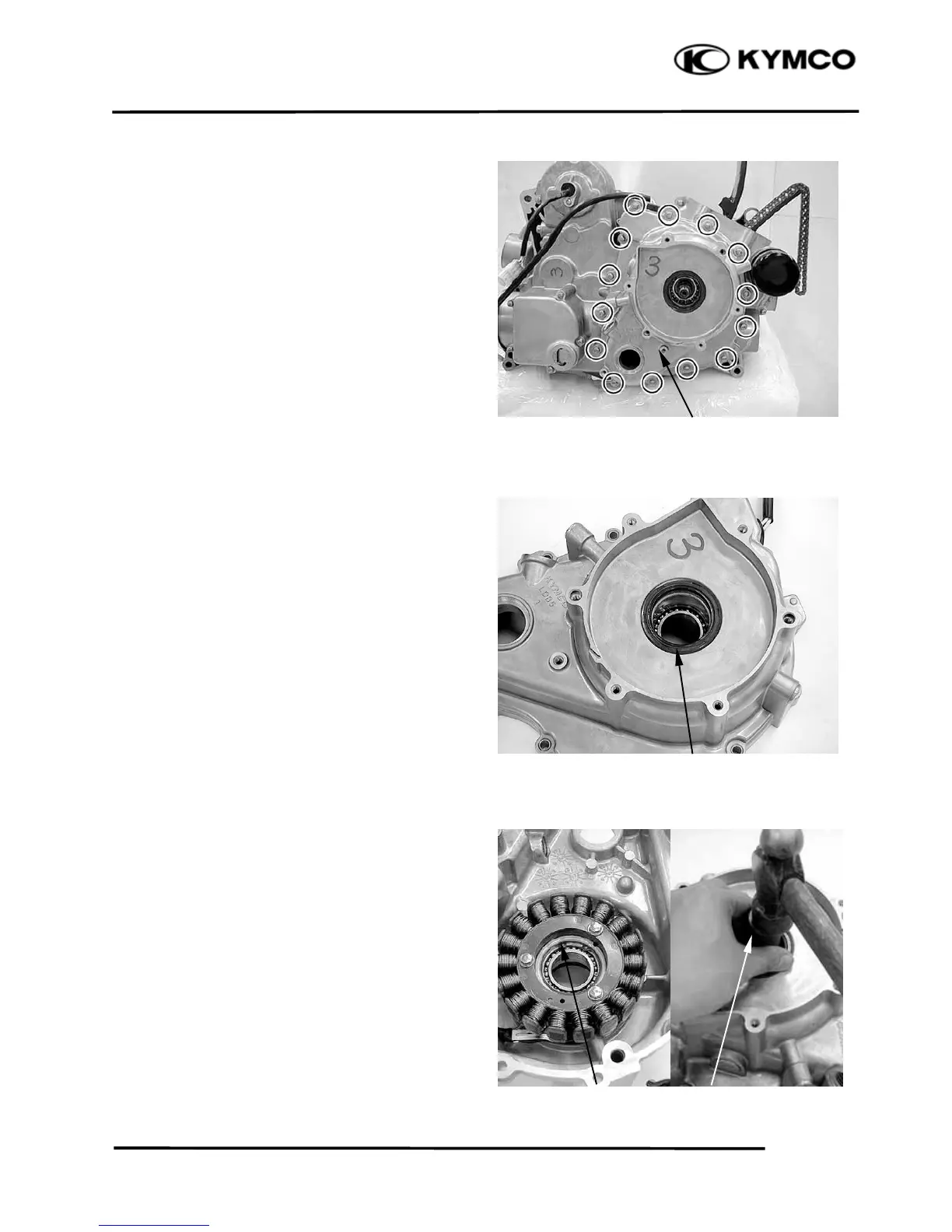

Remove the right crankcase cover (refer to
the “ALTERNATOR STATOR
REMOVAL/INSPECTION/
INSTALLATION” in the chapter 17)
Remove the oil seal.
Remove the snap ring.
Remove the bearing by using the special tool.
Special tool:
Oil seal & bearing drive A120E00014
Right Crankcase Cove
r
Snap Ring Bearing Drive
Oil Seal
