8. CYLINDER HEAD/VALVES
8-5
MXU 500
CYLINDER HEAD COVER
REMOVAL/INSTALLATION
REMOVAL
Disconnect the crankcase breather hose from
the cylinder head cover (refer to the
“ENGINE REMOVAL” section in the
chapter 7).
Remove the four bolts/rubber washers and
cylinder head cover.
Remove the cylinder head cover packing.
INSTALLATION
Apply fluid gasket (threebond: 1215) to the
mating surface of the cylinder head cover,
then install the packing.
Install the cylinder head cover.
Install and tighten the four bolts/rubber
washers to the specified torque in a crisscross
pattern.
Torque: 1 kgf-m (10 N-m, 7.2 lbf-ft)

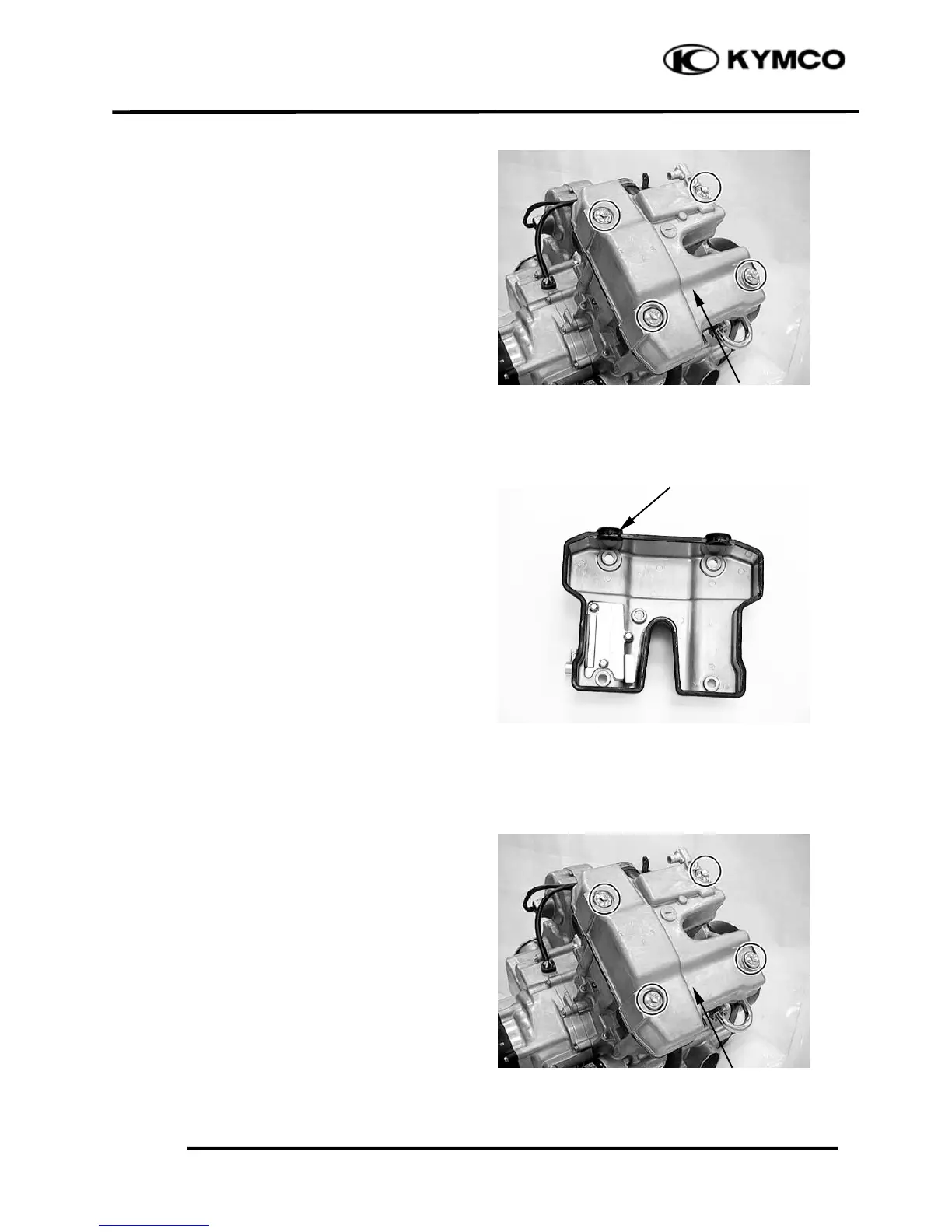

Cylinder Head Cover
Cylinder Head Cover Packing
Cylinder Head Cover
