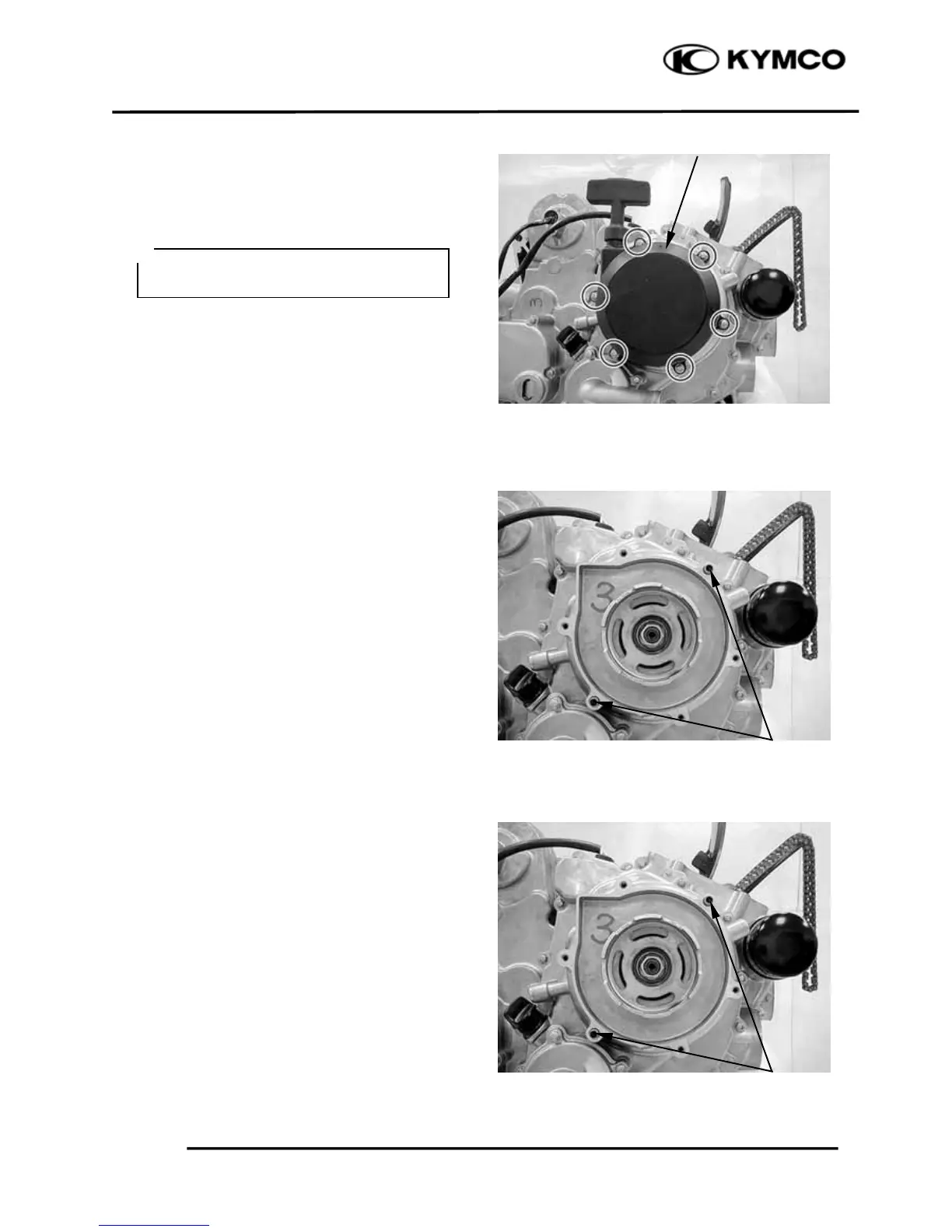

19. STARTER SYSTEM
19-9
MXU 500
RECOIL STARTER
REMOVAL/INSPECTION/
INSTALLATION
REMOVAL
Remove the six bolts, then remove the recoil
starter assembly.
Remove the two dowel pins.
INSTALLATION
Install the dowel pins.
Recoil Starte
r
Dowel Pins
Dowel Pins
The recoil starter can not start the
engine when the battery is removal.
＊
