8. CYLINDER HEAD/VALVES
8-28
MXU 500

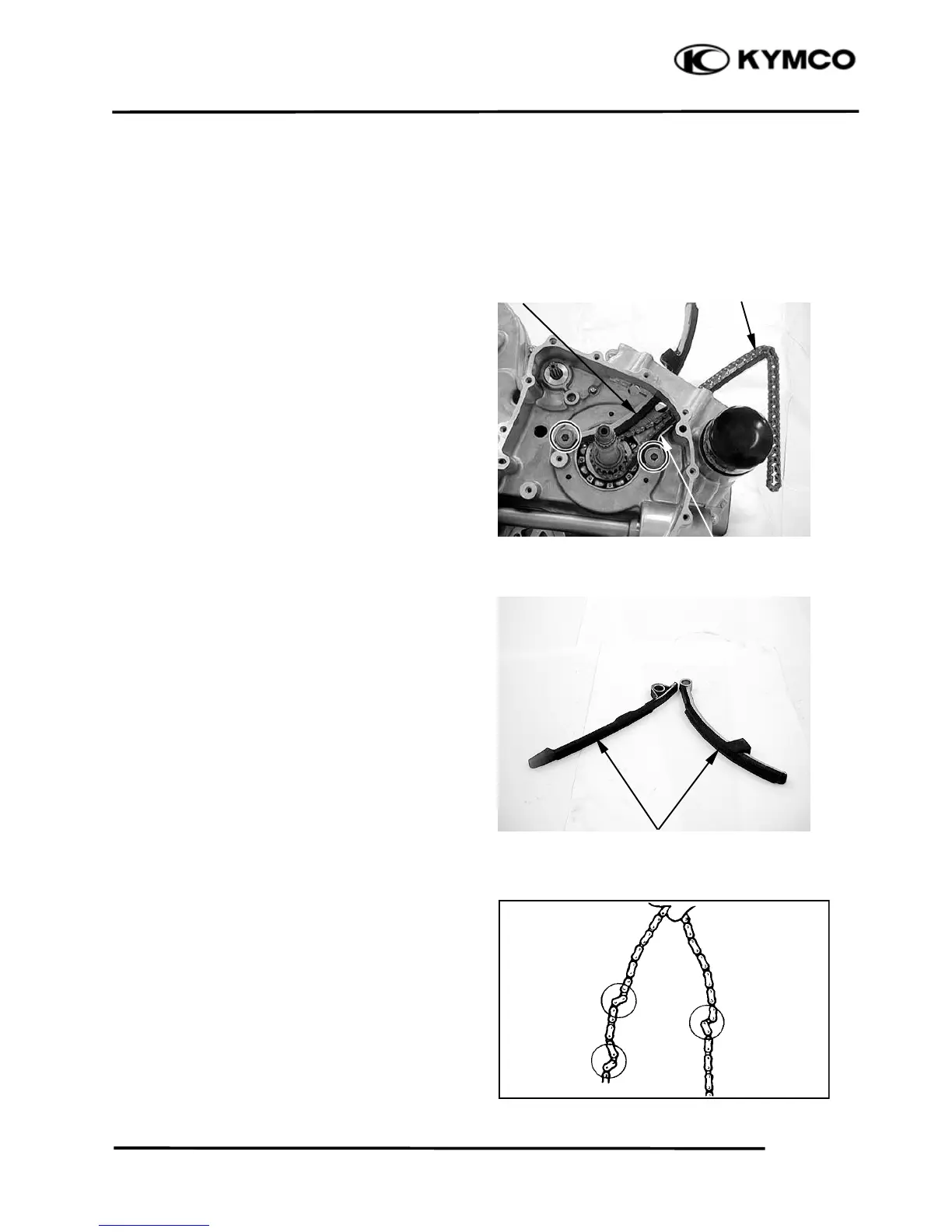

CAM CHAIN
REMOVAL/INSPECTION/
INSTALLATION
REMOVAL
Remove the cylinder (refer to the
“CYLINDER AND PISTON
REMOVAL/INSPECTION/
INSTALLATION” section in the chapter 9).
Remove the oil pump drive chain (refer to
“OIL PUMP
REMOVAL/INSTALLATION” section in
the chapter 4).
Remove the cam chain from the right
crankcase.
Remove the two bolts and cam chain guides.
INSPECTION
Cam chain guide
Inspect the cam chain slipper surface of the
cam chain guide for wear or damage.
Cam chain
Inspect the cam chain for cracks or stiff.
Guide
Guide Cam Chain
Slipper Surface
