KYMCO MXU 500 - Front Drive Removal;Inspection;Installation

13. DRIVE TRAIN
13-11
MXU 500
FRONT DRIVE
REMOVAL/INSPECTION/
INSTALLATION
REMOVAL
Drain the front drive gear oil (refer to the
“FRONT DRIVE GEAR OIL” in the
chapter 3).
Remove the steering knuckle (refer to the
“STEERING KNUCKLE
REMOVAL/INSPECTION/
INSTALLATION” section in the chapter
14).
Remove the front upper arms and front
lower arms (refer to the “FRONT ARMS
INSPECTION/REMOVAL/
INSTALLATION” section in the chapter
14).
Remove the drive shafts (refer to the
“FRONT DRIVE SHAFT
REOMVAL/INSPECTION/
INSTALLATION” section in this
chapter).

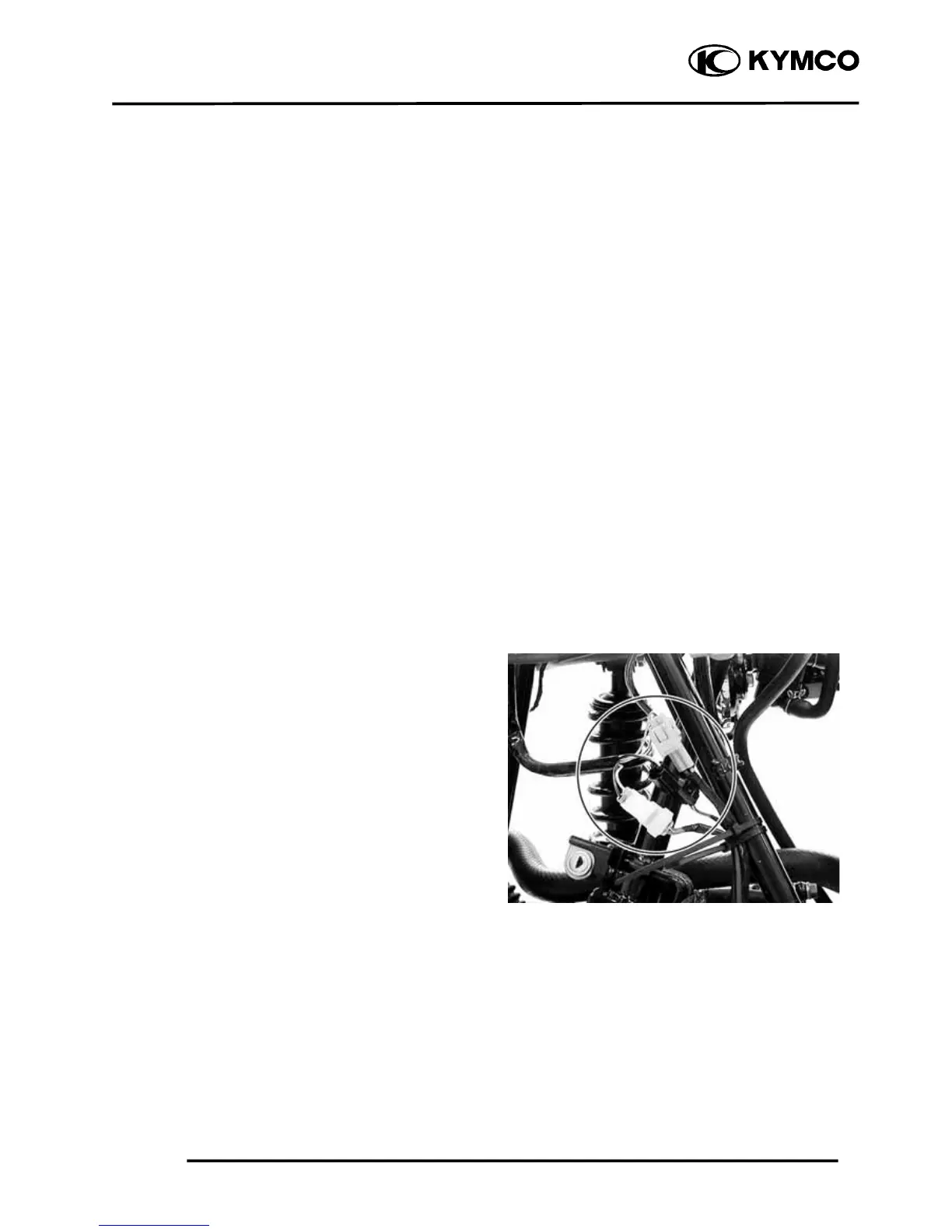

Disconnect the following wire connectors
Ɣ 2WD indicator wire connector
Ɣ 2WD/4WD motor wire connector
Ɣ 4WD indicator wire connector
Then cut the wire rubber band.
