13. DRIVE TRAIN
13-36
MXU 500

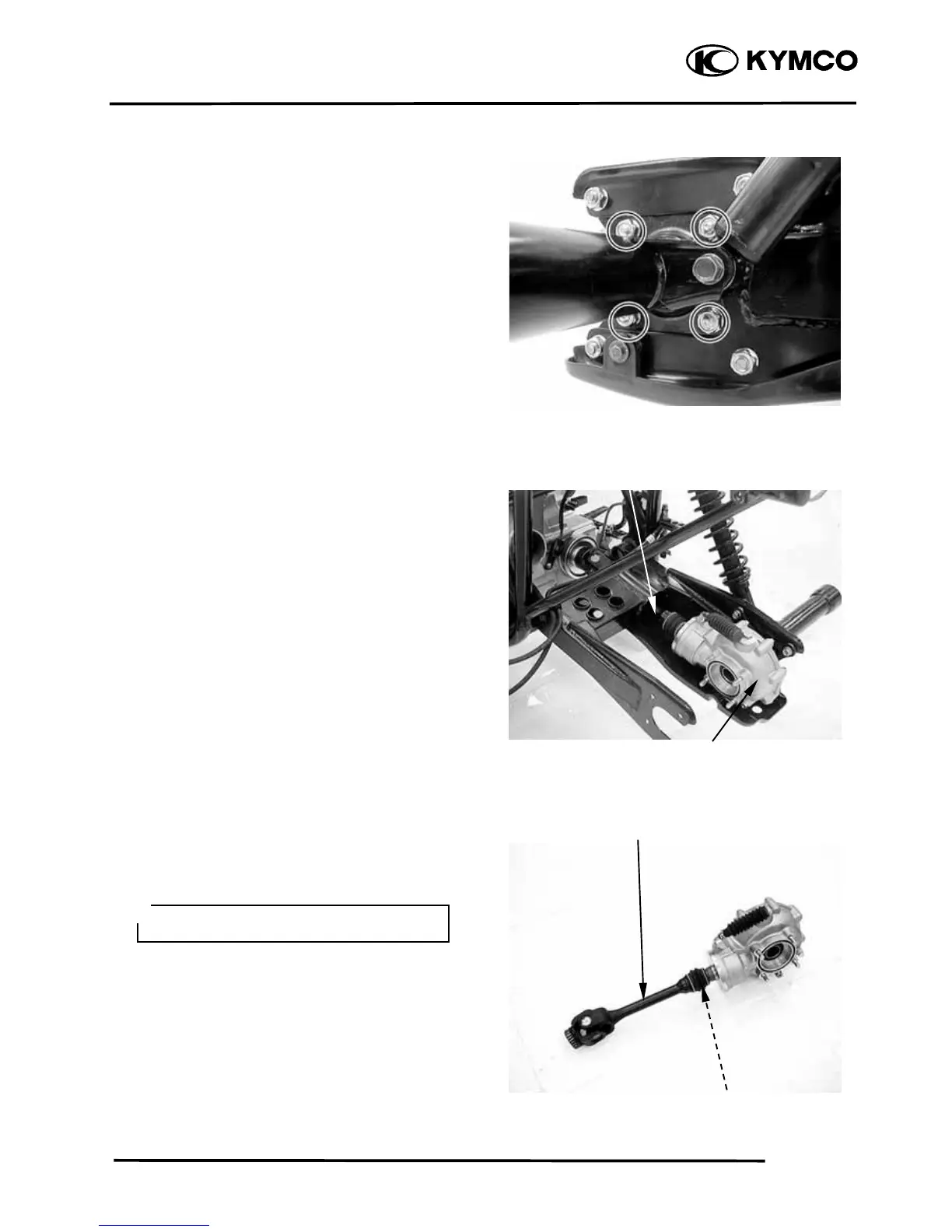

REAR DRIVE
REMOVAL/INSPECTION/
INSTALLATION
REMOVAL
Remove the left rear axle housing (refer to
the “REAR AXLE HOUSING
REMOVAL/INSPECTION/
INSTALLATION” section in the chapter
15).
Remove the four mounting nuts from the
right rear axle housing.
Remove the rear drive assembly and rear
propeller shaft together.
Remove the rear propeller shaft from the
rear drive assembly.
Compression Spring
Rear Propeller Shaf
t
Rear Drive Assembly
Rear Propeller Shaf
t
Do not lose the compression spring.
＊
