19. STARTER SYSTEM
19-11
MXU 500

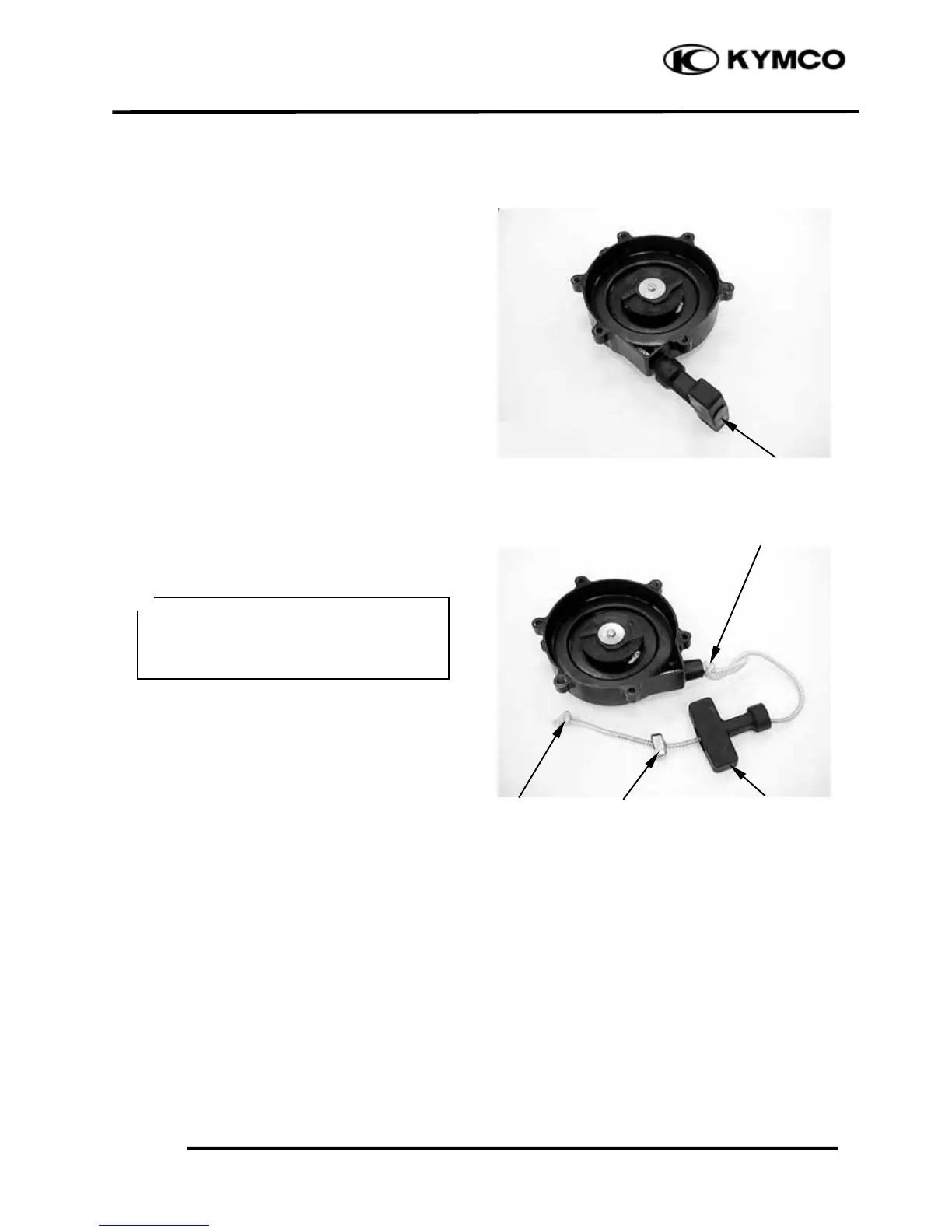

RECOIL STARTER HANDLE
REPLACE
Remove the recoil starter assembly (refer to
the “RECOIL STARTER
REMOVAL/INSPECTION/
INSTALLATION” section in this chapter).
Remove the cap on the handle.
Replace the handle.
Cap
Kno
t
Knot Collar Handle
Before untying the knot above the
starter handle, make a knot in the rope
so that the rope is not pulled into the
housing.
＊
