12.LEFT CRANKCASE/CRANKSHAFT/
BALANCE SHAFT
12-3
MXU 500
CRANKSHAFT AND BALANCE
SHAFT
REMOVAL/INSPECTION/
INSTALLATION
REMOVAL
Remove the right crankcase (refer to the
“RIGHT CRANKCASE
REMOVAL/INSTALLATION” section in
the chapter 11).

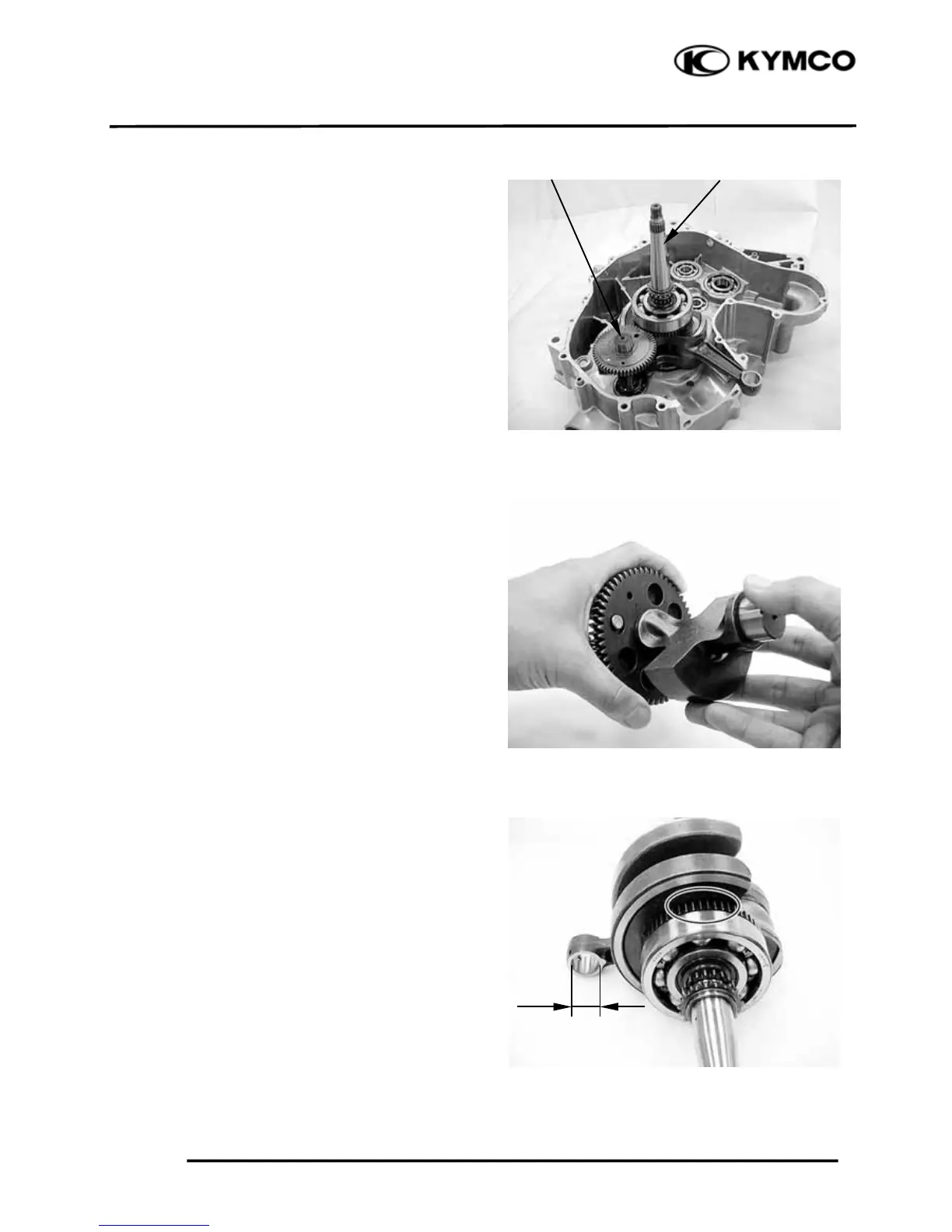

Remove the crankshaft and balance shaft
together.
INSPECTION
Balance shaft
Inspect the balance shaft gear teeth.
Burrs/chips/roughness/wear ĺ Replace.
Crankshaft inspection
Inspect the crankshaft gear teeth.
Burrs/chips/roughness/wear ĺ Replace.
Measure the connecting rod small end I.D.
Service Limit (replace if over):
22.06 mm (0.8824 in)
Balance Shaft Crankshaf
t
