14. FRONT WHEEL/FRONT SUSPENSION/
STEERING SYSTEM
14-30
MXU 500
STEERING COLUMN
REMOVAL/INSPECTION/
INSTALLATION
REMOVAL
Remove frame covers (refer to the
“FRAME COVERS” section in the chapter
2).
Remove the tie-rods (refer to the “TIE-
ROD REMOVAL/INSPECTION/
INSTALLATION” section in this chapter).
Remove the handlebar (refer to the
“HANDLEBAR
REMOVAL/INSPECTION/
INSTALLATION” section in this chapter).

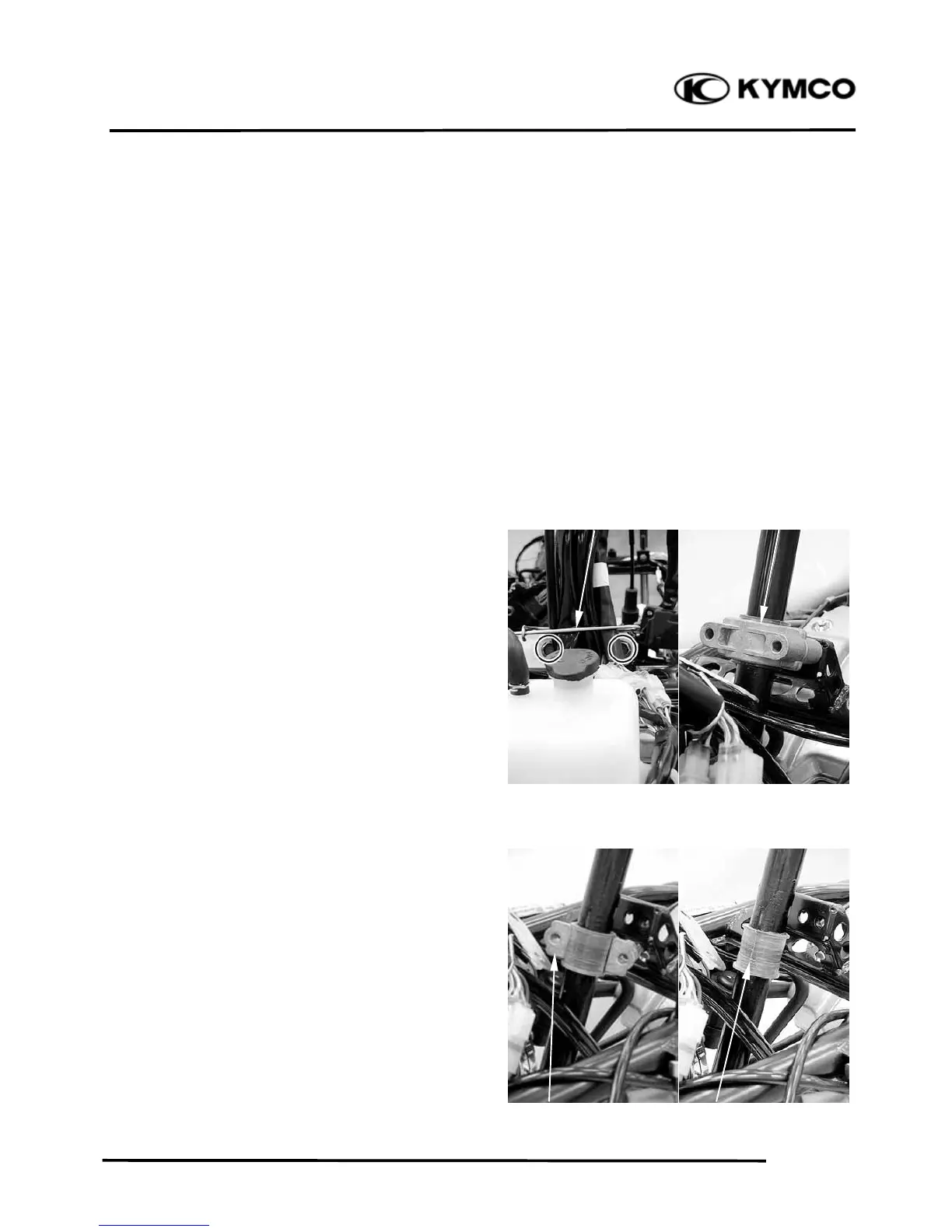

Remove the two bolts and remove the cable
holder.
Remove the steering brackets and dust seal.
Cable Holder Steering Bracke
t
Steering Bracket Dust Seal
