17. BATTERY/CHARGING SYSTEM
17-11
MXU 500

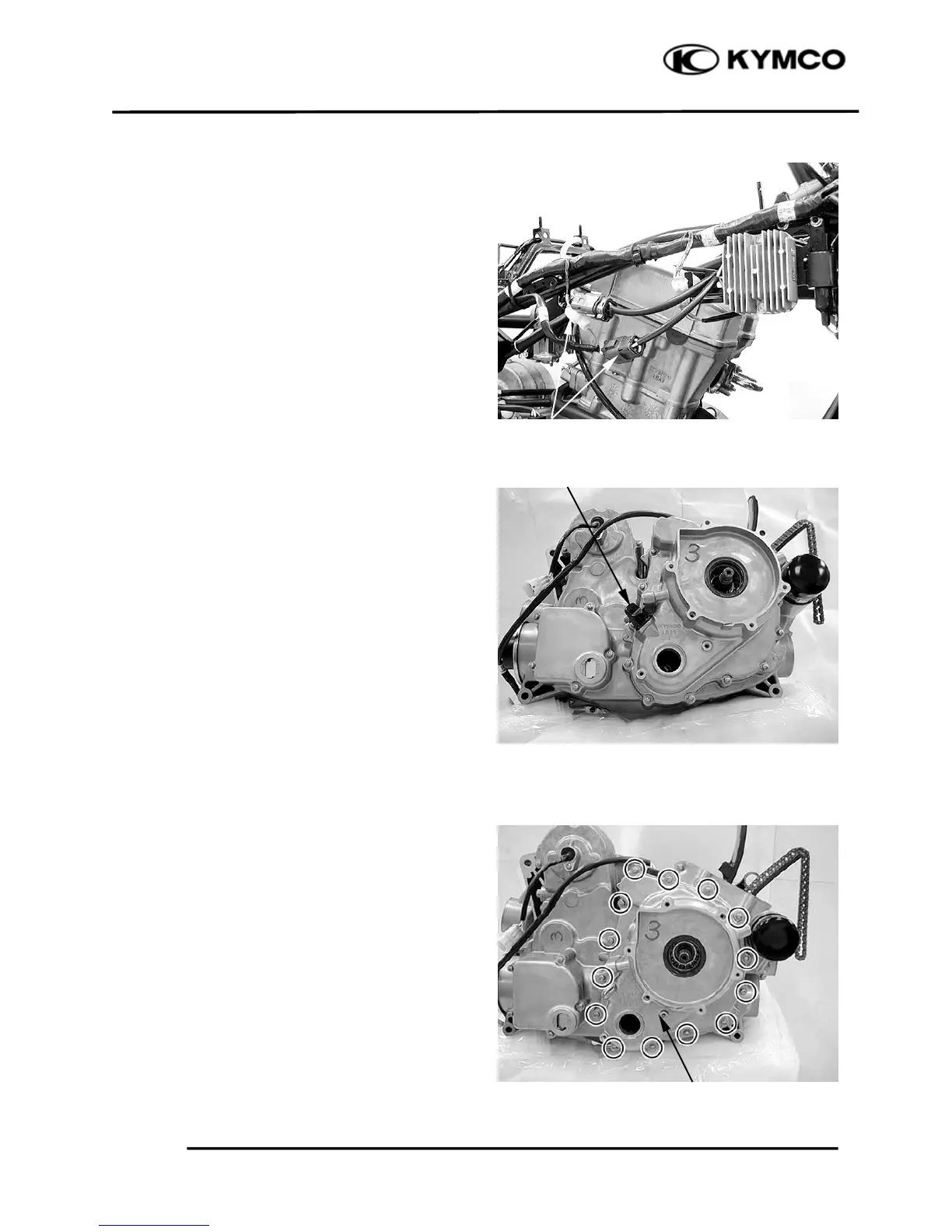

ALTERNATOR STATOR
REMOVAL/INSPECTION/
INSTALLATION
REMOVAL
Drain the engine oil (refer to the “ENGINE
OIL” section in the chapter 3).
Disconnect the alternator stator connectors.
Remove the starter pulley (refer to the
“STARTER PULLEY
REMOVAL/INSPECTION/INSTALLATI
ON” section in the chapter 19).
Remove the oil filler plug.
Remove the fourteen bolts and then remove
the right crankcase cover.
Oil Filler Plug
Alternator Stator Connectors
Right Crankcase Cove
To Next Page
