KYMCO MXU 500 - Starter Clutch Removal;Inspection; Installation

19. STARTER SYSTEM
19-20
MXU 500
STARTER CLUTCH
REMOVAL/INSPECTION/
INSTALLATION
REMVOAL
Remove the right crankcase cover (refer to
the “ALTERNATOR STATOR
REMOVAL/INSPECTION/
INSTALLATION” section in the chapter
17).

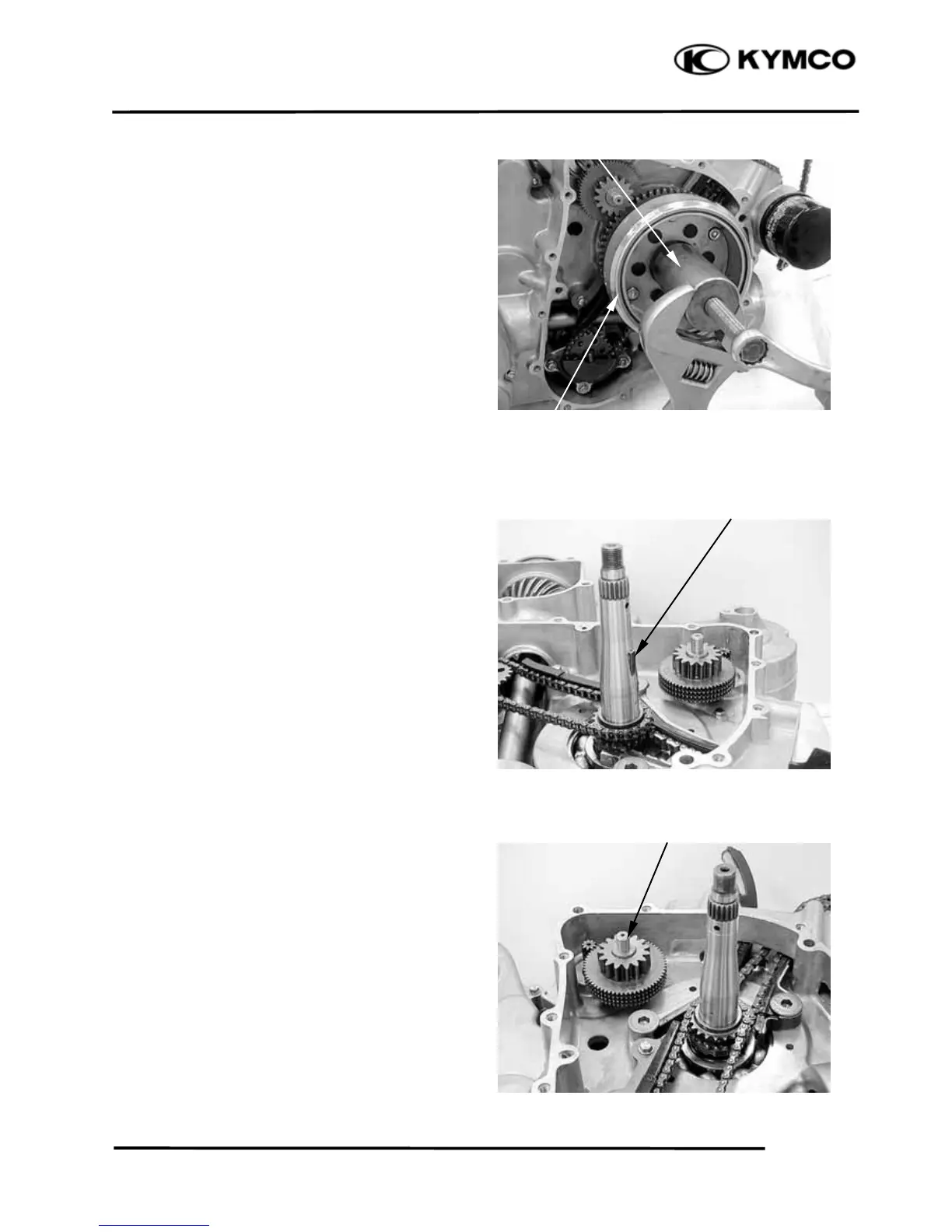

Remove the flywheel/driven gear by using
the special tool.
Special tool:
Flywheel puller A120E00060
Remove the woodruff key.
Remove the reduction gear.
Flywheel Pulle
r
Flywheel/Driven Gea
r
Woodruff Key
Reduction Gea
r
